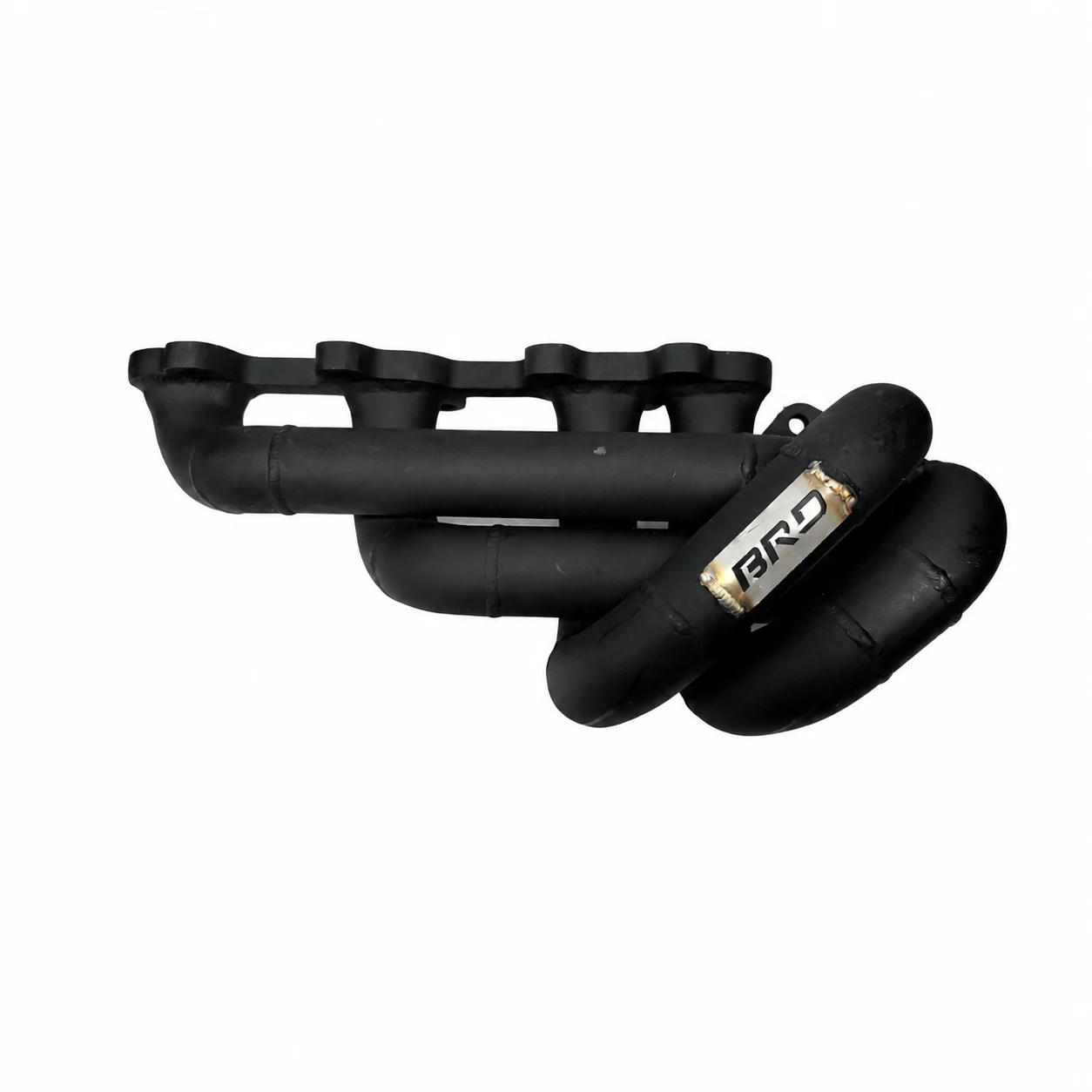

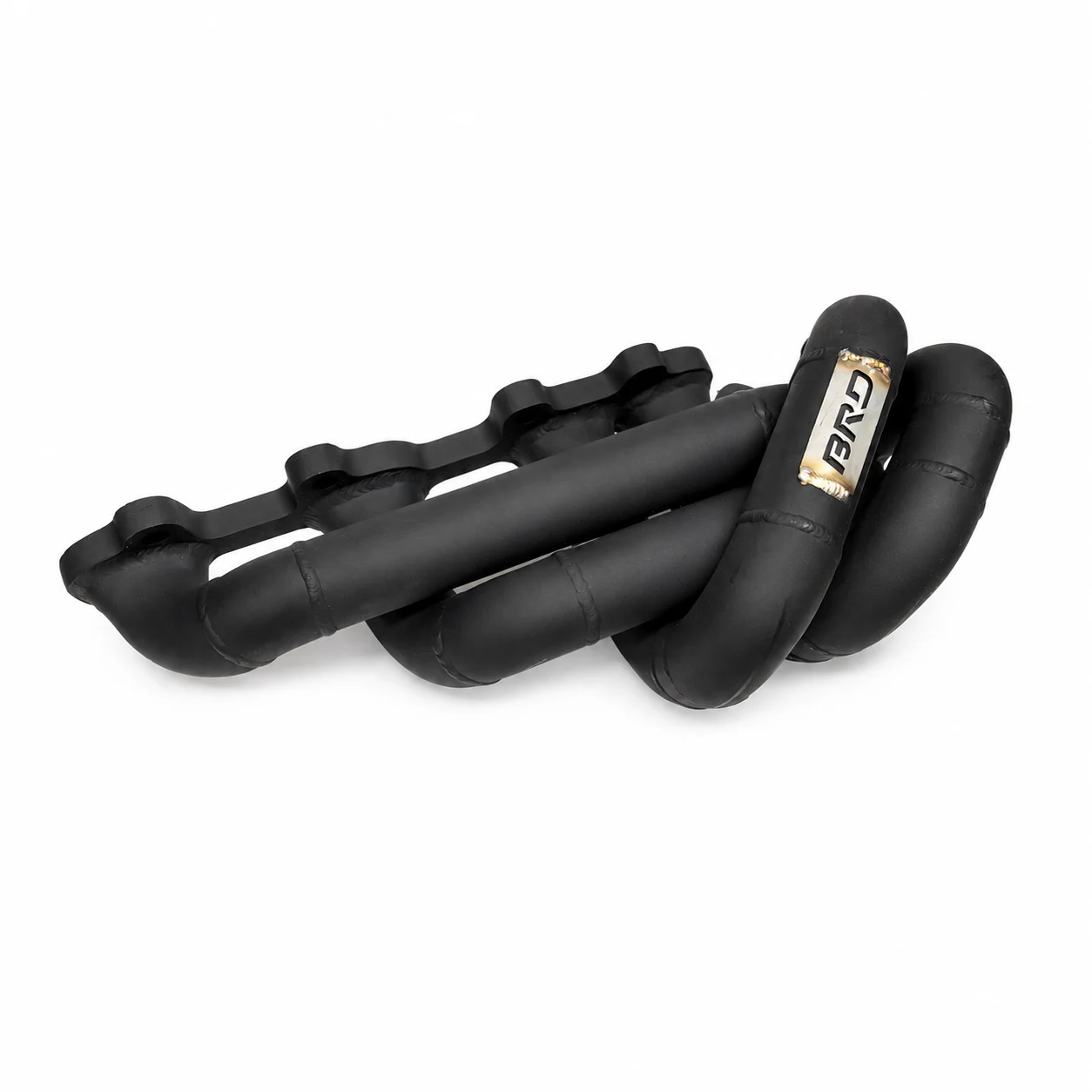

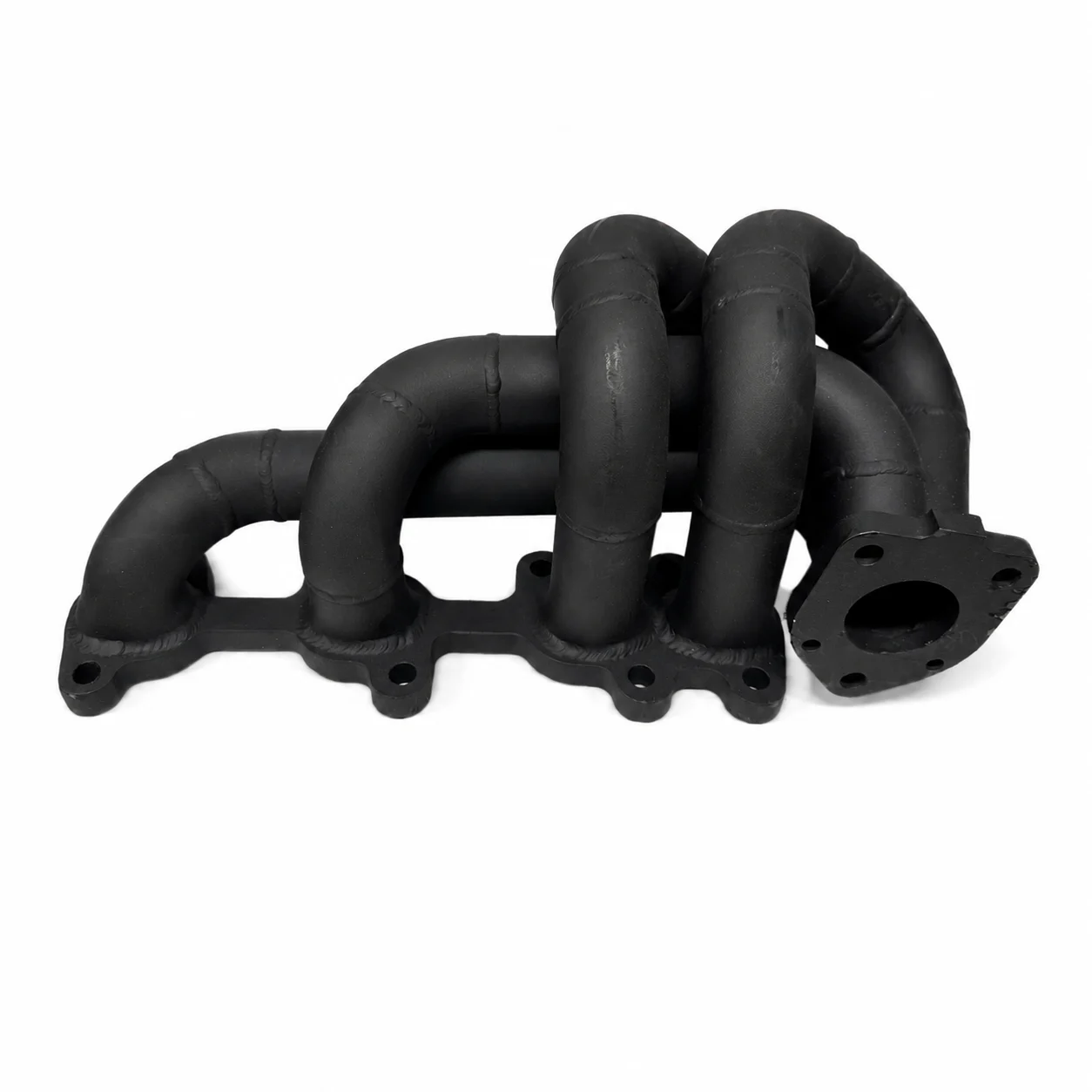

BRD 1GD Low Mount Turbo Exhaust Manifold suitable for Toyota Hilux N80

BRD 1GD Low Mount Turbo Exhaust Manifold suitable for Toyota Hilux N80

A low mount tubular exhaust manifold suitable for the Toyota Hilux N80 with the 1GD-FTV 2.8L turbo diesel, made by BRD in Thailand. It keeps the turbo in the factory position. If you’re fitting a larger turbo such as an F44 or F55, the tubular runners improve exhaust flow and response. BRD builds its manifolds from thick steel, and performance workshops rate them for not cracking.

🚗 Suitable for:

• Toyota Hilux N80 1GD-FTV 2.8L Turbo Diesel 2015-Present

📦 What’s Included:

• 1 x BRD low mount tubular turbo manifold

🛠️ Fitment Details:

• Keeps the factory turbo position, so the turbo doesn’t need relocating.
• Needs the recommended exhaust manifold stud and nut kit.
• One of the turbo-to-manifold studs has to be swapped for a bolt and nut.
• The airbox to turbocharger pipe sits close to the manifold once fitted. It clears, but check it during the install.
• The EGR system has to come off, because the manifold has no EGR port.

⚙️ Why Choose This:

• Better response with an upgraded turbocharger.
• Thick steel construction. BRD manifolds are known in the performance trade for not cracking.
• Tubular runners improve exhaust flow while the turbo stays in the factory position.
• The low mount layout follows the factory one, so nothing around the manifold needs major changes.

📦 Dispatch Information:
We keep these on the shelf at our Brisbane store, ready for fast dispatch.

❓ FAQs:
Q: Do I need to remove the EGR to fit this manifold?
A: Yes. The manifold has no EGR port, so the EGR system has to be removed as part of the install. Check your state’s emissions laws first, because EGR removal isn’t legal for road use everywhere.

Q: Will this manifold crack like some cheaper options?
A: Cracking is the common failure with cheap tubular manifolds. BRD uses thick steel to avoid it, and their manifolds have a good record in the performance trade.

Q: Which turbos does it suit?
A: It takes the factory turbo position and suits larger upgrades such as the F44 and F55.
