Front Right Lower Control Arm suitable for Toyota Hilux N80 GUN126 and Fortuner

Front Right Lower Control Arm suitable for Toyota Hilux N80 GUN126 and Fortuner

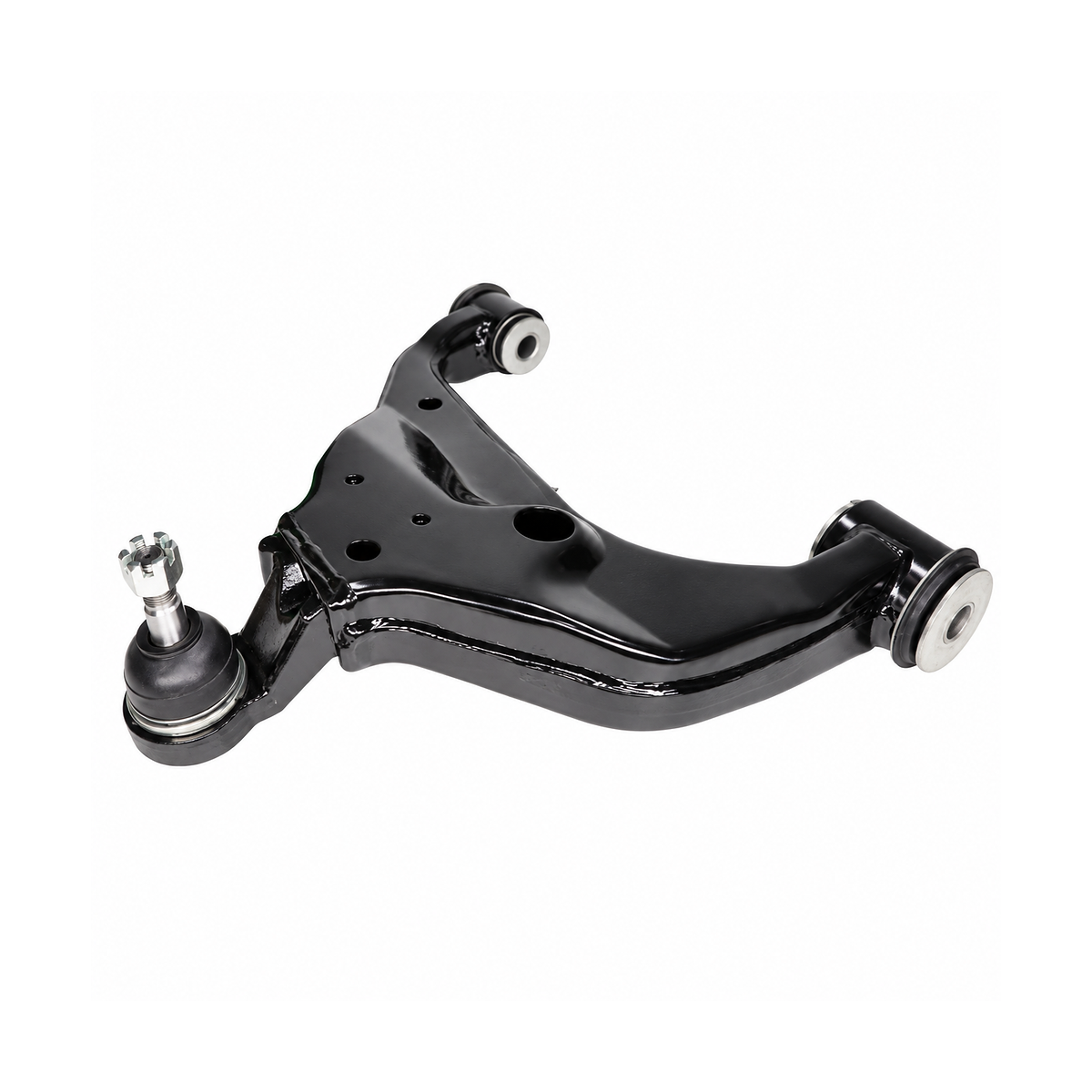

Selby BJ8848R-ARM front right lower control arm (driver side) suitable for the Toyota Hilux N80 GUN126, GUN125 and GGN125 4WD from 2015 and the Fortuner GUN156. Complete arm with the lower ball joint and the 16mm bore bushes pressed in.

Lower arm bushes on an N80 split at the rear pivot and the ute starts to wander and wear the inside of the front tyres. The lower ball joint is bolted to the arm, so a complete arm with everything fitted is the quick fix. Torque the pivot bolts with the suspension loaded and get an alignment. We sell the left side on its own and the pair.

🚗 Suitable for:

• Toyota Hilux N80 GUN126 2.8 litre 1GD-FTV 4WD, 2015 on (SR, SR5, Workmate, Rugged, Rugged X)
• Toyota Hilux N80 GUN125 2.4 litre 2GD-FTV 4WD, 2015 on
• Toyota Hilux N80 GGN125 4.0 litre 1GR-FE 4WD, 2015 on
• Toyota Fortuner GUN156 2.8 litre 1GD-FTV, 2015 on

📦 What’s Included:

• 1x Selby BJ8848R-ARM front right lower control arm with ball joint and bushes

🔧 Fitment Details:

• Front right (driver side)
• 16mm pivot bolt bushes
• Sway bar link bolts to the arm. Check the link while you are there, we list those too
• Torque the pivot bolts with the wheels on the ground, then get a wheel alignment

⚙️ Why Choose Selby:

• Ball joint and bushes fitted, no pressing
• Made to the original arm geometry
• Australian brand with a fitment catalogue we check against

📦 Dispatch Information:

• Contact us for current stock and lead times.

❓ FAQs:

Q: Does it include the ball joint?
A: Yes, fitted.

Q: One or both?
A: Bushes wear in pairs. If one side has split, do both.

Q: Not sure it suits your vehicle?
A: Send us your VIN and we’ll check it before you order.
