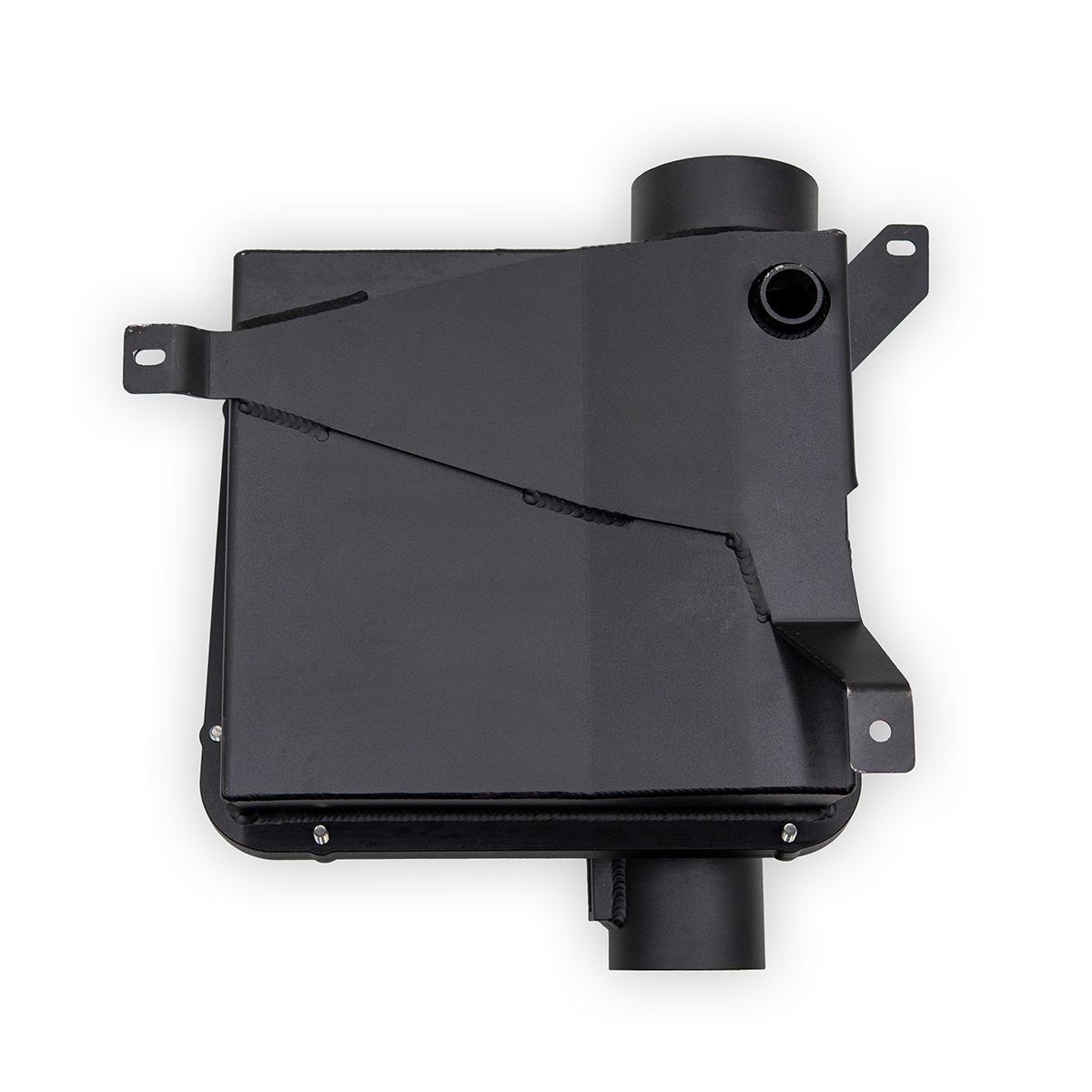

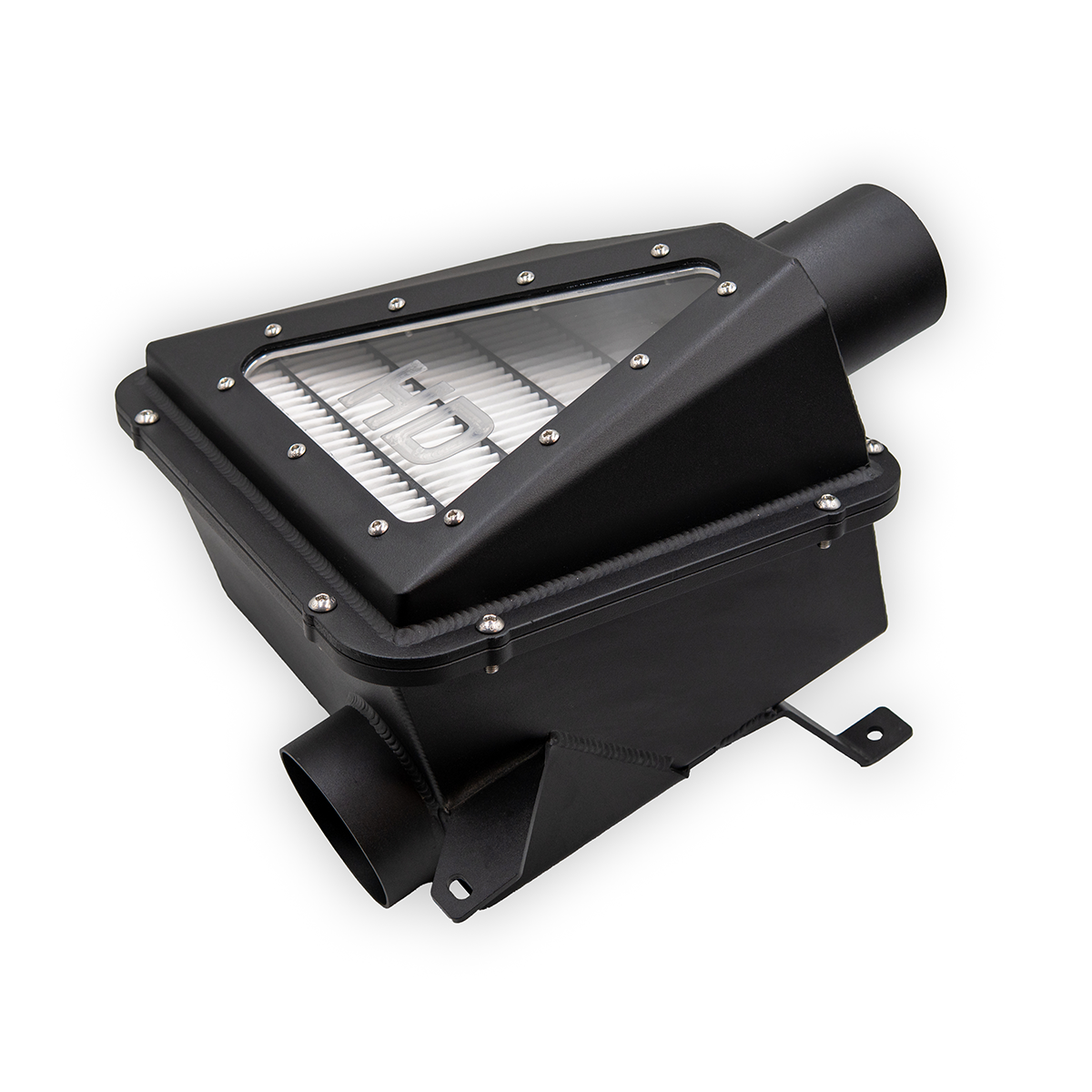

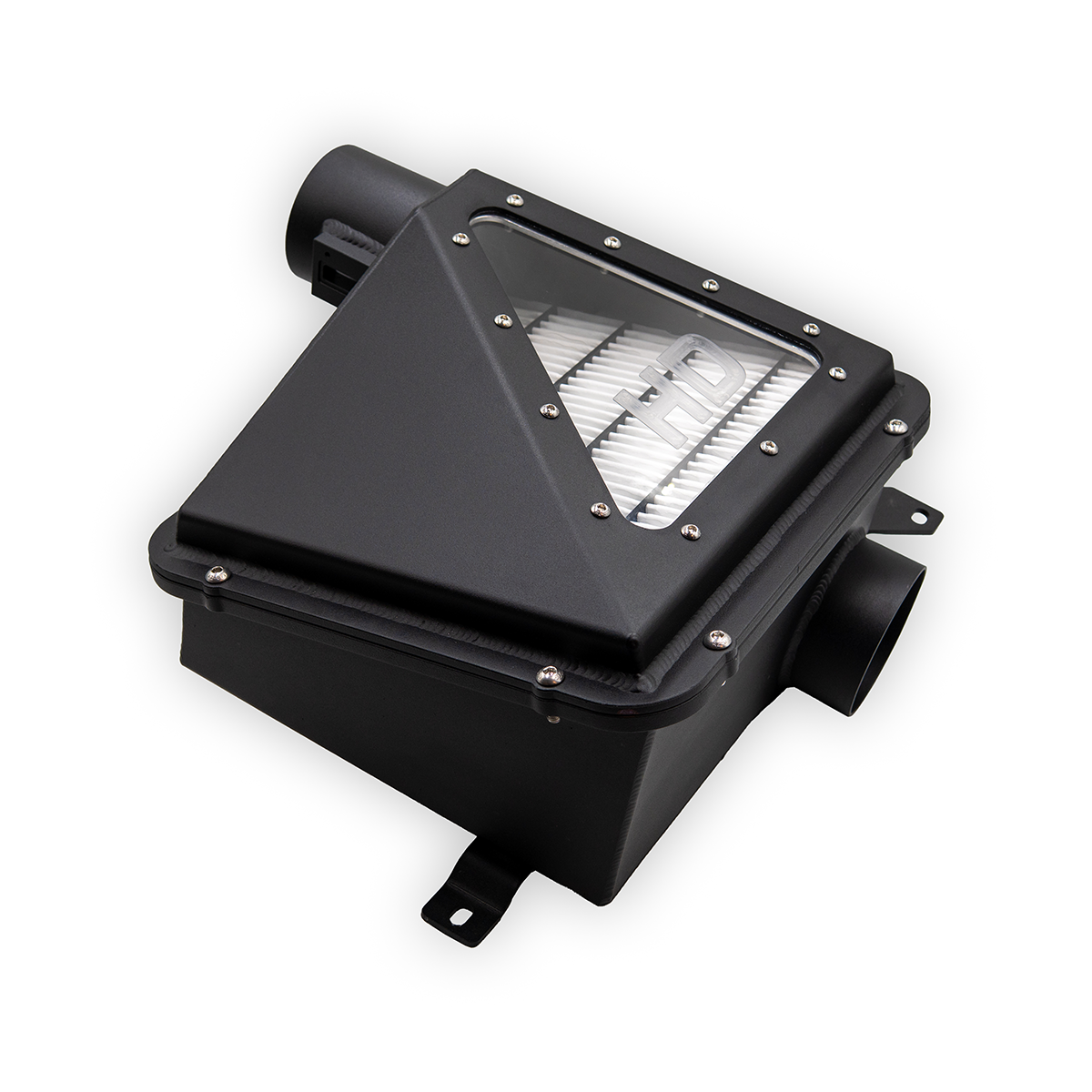

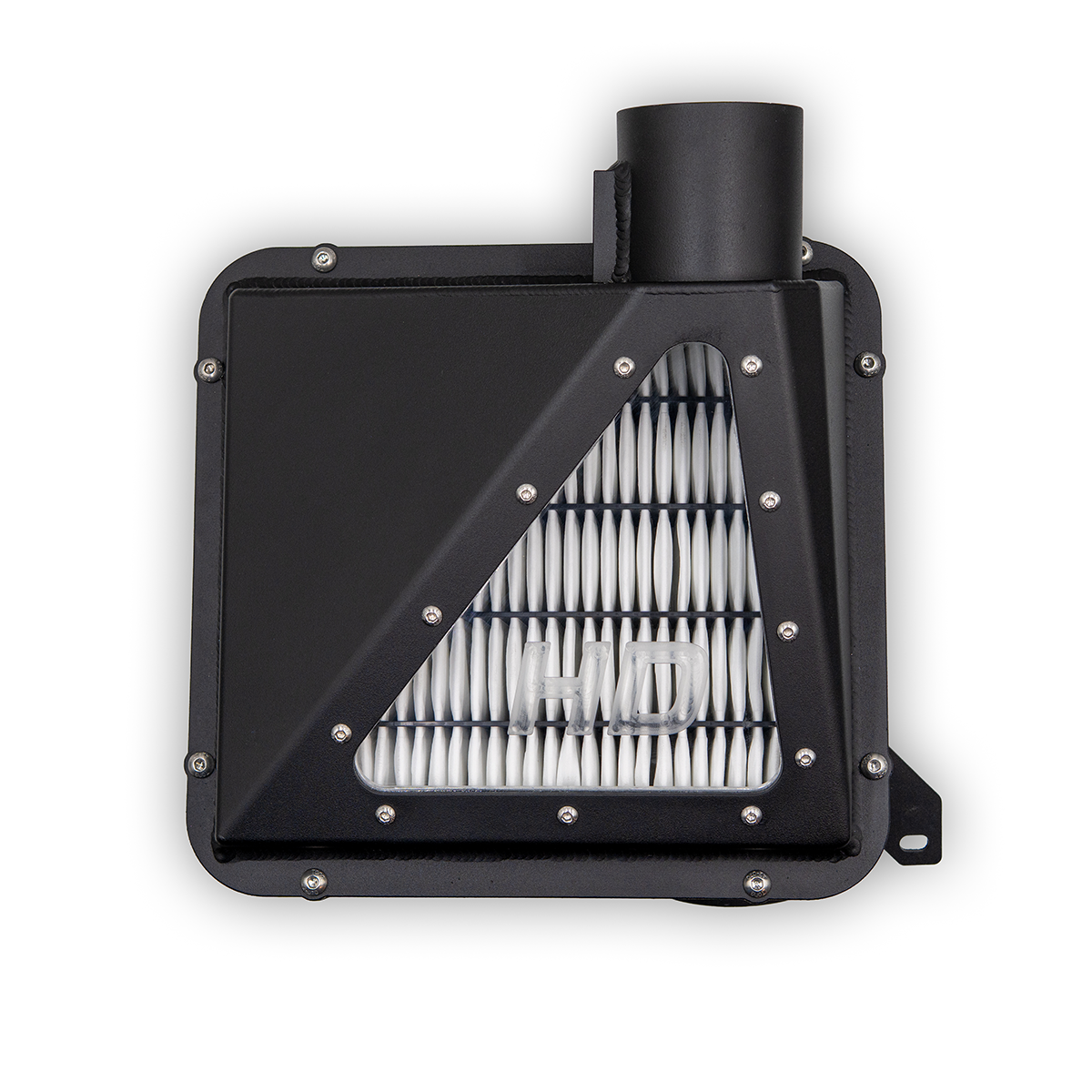

HD Auto Airbox suitable for Toyota LandCruiser 200 Series VDJ200

HD Auto Airbox suitable for Toyota LandCruiser 200 Series VDJ200

The ultimate airbox upgrade for your Toyota Landcruiser 200 wagon.

🚗 Compatible With

• Toyota Landcruiser VDJ200 200 Series 1VD-FTV Diesel Engine
• All year models from 2007-2022
• Direct fit, no tuning or modifications required.
• Suits vehicles with or without a dual battery.

🔧 Fixes a Known Weak Point

• The factory Toyota Landcruiser 200 Series airbox is a known weak point in it’s design, allowing dust to enter from the edges of the airbox due to a poor seal in the factory design.
• Our airbox solution entirely fixes this issue, while retaining an OEM style filter.

✨ Why Upgrade?

• CNC Laser Cut parts including the brackets, 10mm acrylic lid ensuring perfect fitment and quick visual inspection of filter condition.
• This airbox features UNIQUE sealing capabilities unlike any other on the market, consisting of a Triple Lip Seal creating the ultimate sealing surface between the air filter and airbox.
• MASSIVE internal displacement and over-engineered flow characteristics
• Utilises the factory VDJ200 Series Toyota Landcruiser Panel filter suitable for on and off road conditions. This allows you to pick up a replacement filter from literally anywhere in Australia!
• 4″ inlet for maximum airflow
• Factory-size outlet. It’s machined aluminium and replicates the factory MAF sensor housing, so the MAF doesn’t need any recalibration in your tune
• Clear inspection window is mounted via a drilled and tapped flange, not individual nuts which completely removes the risk of any hardware coming loose within the airbox
• Direct fit with no need to relocate any parts
• Works with most front mounted intercooler kits
• Water collection sump and one way duck bill valve to allow water to drain out effectively and automatically

📦 What You Get:

• HD Airbox
• VDJ200 Series Landcruiser panel filter (supplied installed in airbox)
• Zinc plated factory style fitting hardware (3x M8x1.25 captive washer bolts)
• Crank breather hose & fittings
• Duck bill & zip tie

🛠️ Fitment Notes:

• 100% bolt-in to factory location
• Works with factory inner guard position, so any snorkel will work and line up.
• One airbox fits both dual battery and single battery setups, so there’s no option to pick when ordering.
