PDI Heavy Duty Transmission Cooler Kit suitable for Toyota 1GD Hilux N80 Fortuner 2015-Current

PDI Heavy Duty Transmission Cooler Kit suitable for Toyota 1GD Hilux N80 Fortuner 2015-Current

By default, all PDI external transmission coolers are design to be market leading and their N80 kit is no exception. The factory cooler is made to be cost effective for a standard vehicle, but when upgrading your vehicle for more power or using it for towing, it is sensible to install an external transmission cooler, to make the transmission last as long as possible by keeping the temperatures down.

Suitable for:

• Toyota Hilux N80
• Toyota Fortuner
• Models with 6 Speed AC60 Automatic Transmission

Features:

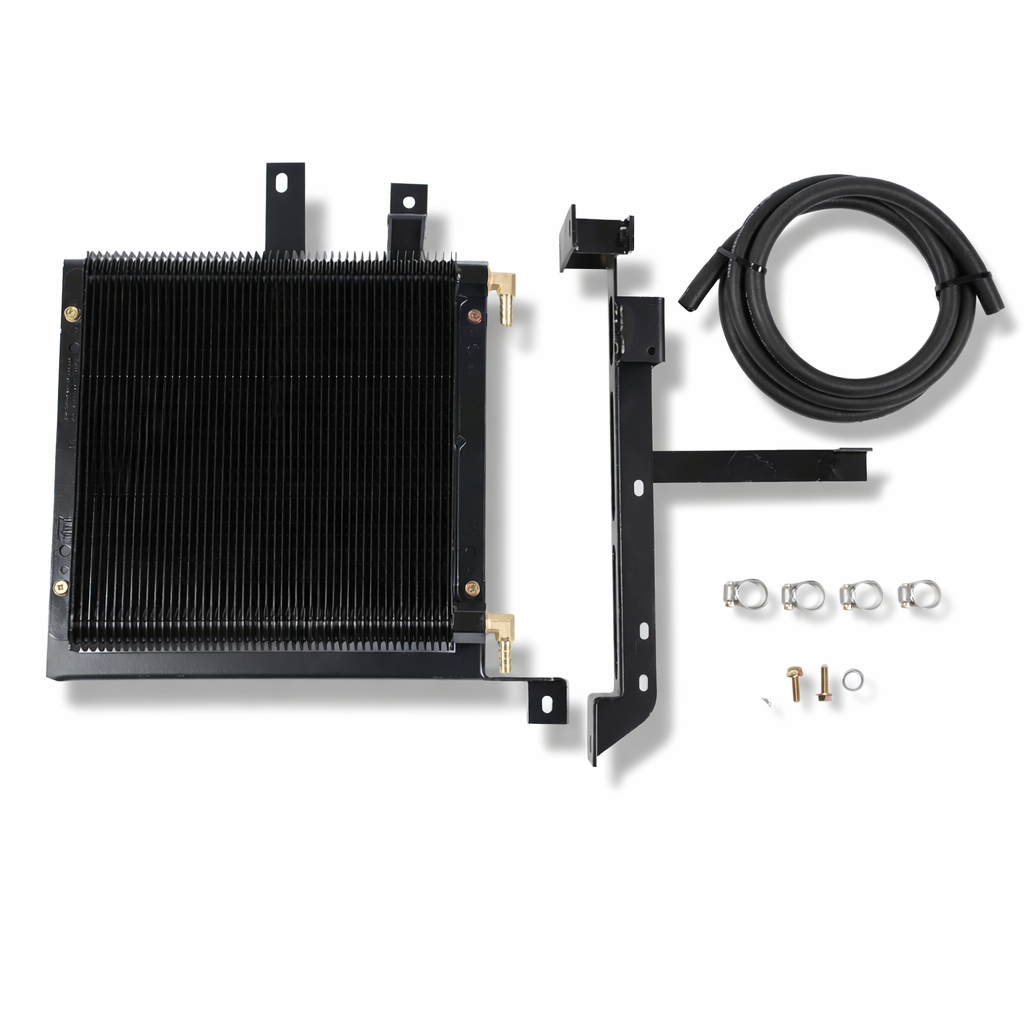

• Maximum efficiency: The cooler kit boasts 48 plates in a 280x280x38mm core this unit is rated at 29,000BTU. (energy dissipation unit of measure)
• Steel one-piece brackets (zinc plated and coated) to eliminate flexing of the aluminium cooler.
• High quality transmission cooler hose (rated to 400psi).

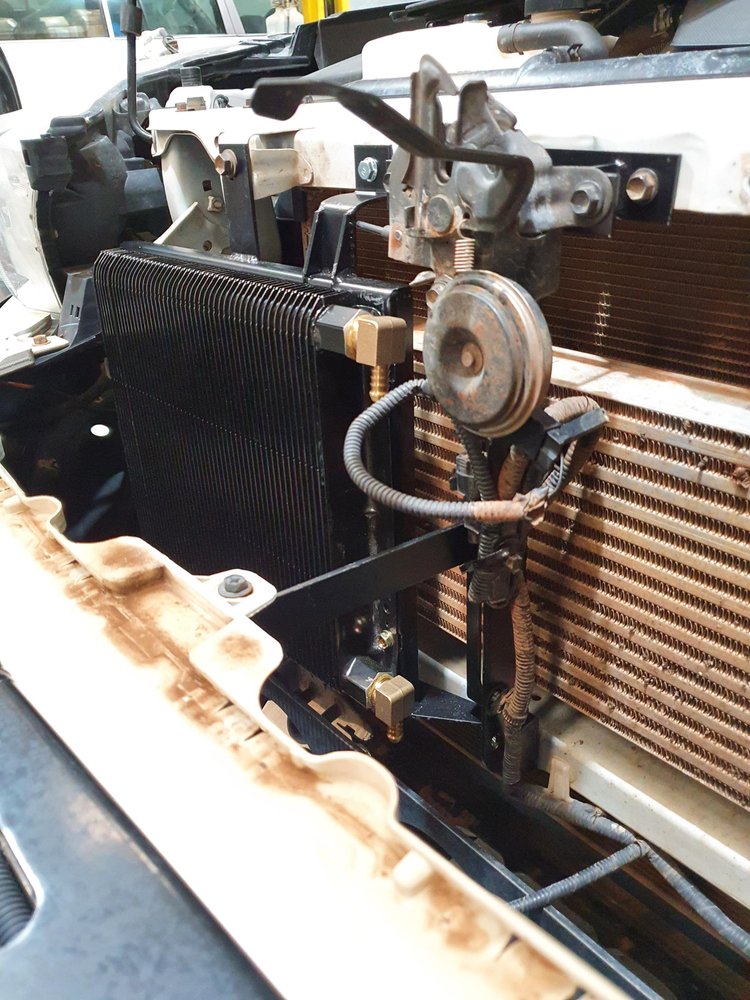

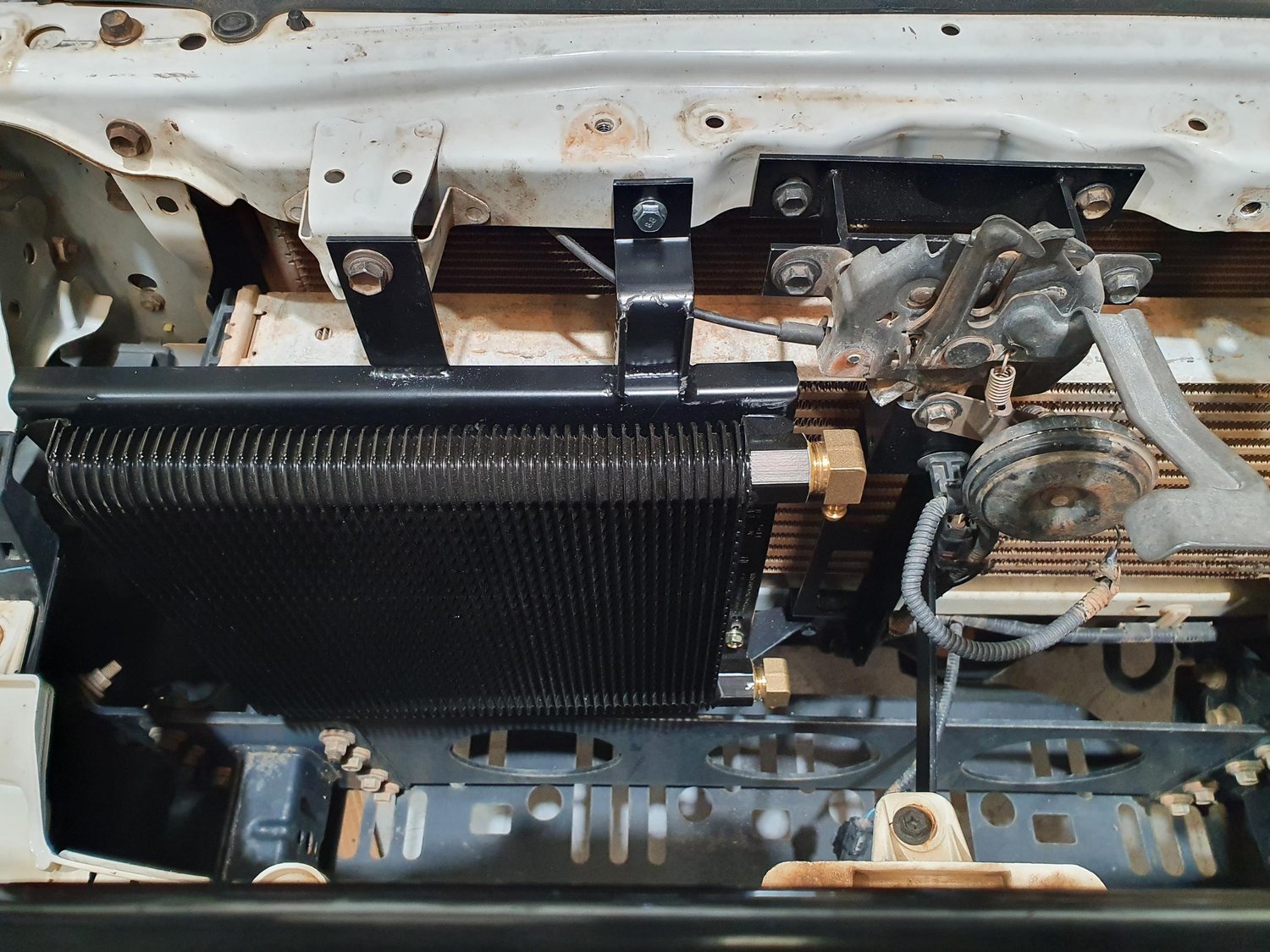

• Optimised location with transmission cooler mounted in front of the hot side of the intercooler

Fitment note:
Outlets are on either side or top to prevent air locks inside the transmission cooler.
Having the outlets at the bottom would make the installation easier as the pipes are run down under the radiator, BUT if you get an airlock (from initial installation empty) there is a strong chance you will never actually fill the top of the coolers with fluid and designed cooler efficiency may never be reached.
