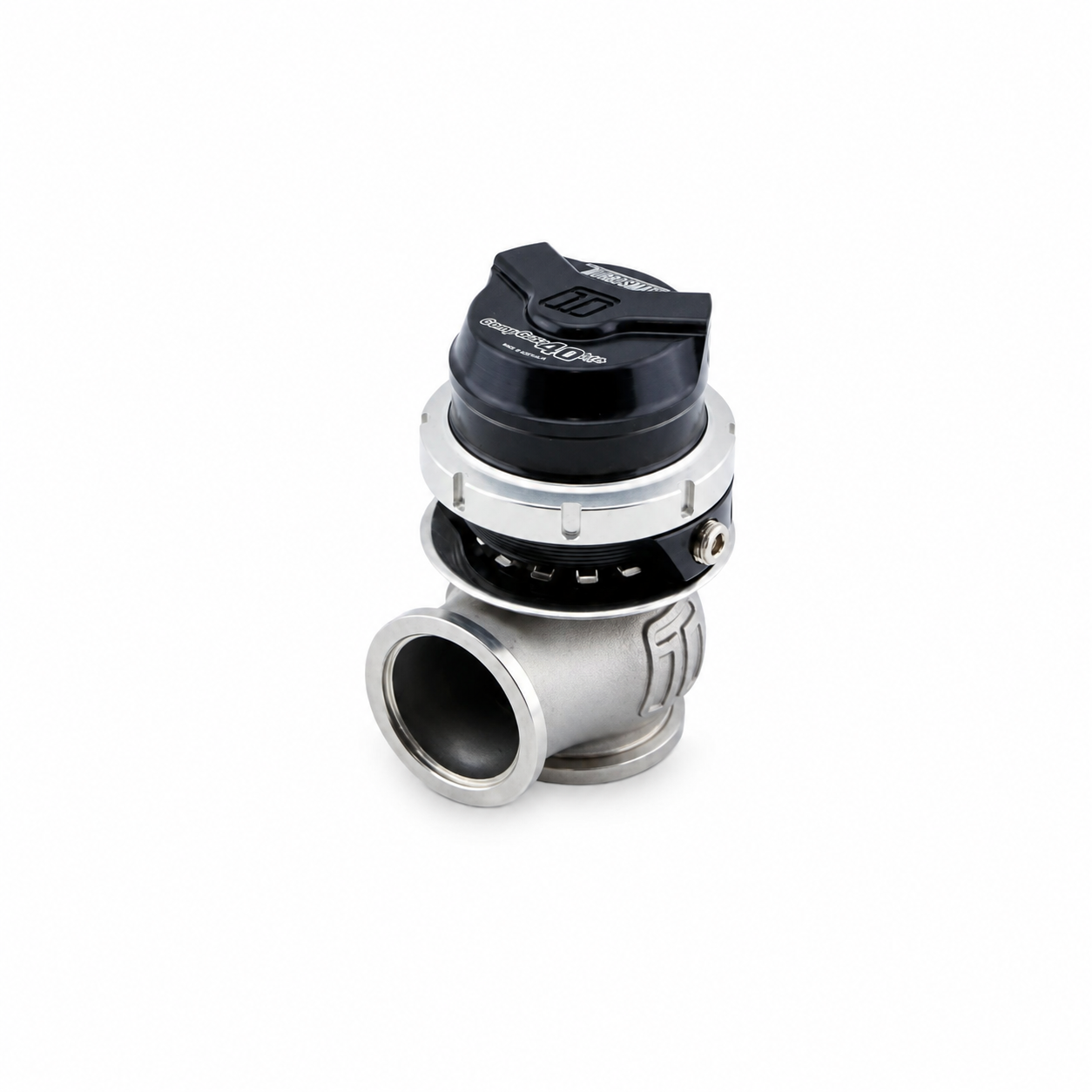

Turbosmart GenV CompGate40HP High Pressure External Wastegate

Turbosmart GenV CompGate40HP High Pressure External Wastegate

Running an external wastegate on a turbo diesel can be problematic. Diesel engines run high manifold pressure, which pushes most external wastegates to open early, making it hard to achieve the required boost pressures. Finally there is a practical solution with the new GenV CompGate40 HP. It’s an uprated version of the External Wastegate built for serious boost targets, making it the wastegate of choice for turbo diesel builds pushing 35psi and beyond.

This is a ground-up rework of the classic Turbosmart external wastegate, CFD-optimised and validated in-house for class-leading flow, thermal performance and fatigue resistance. The collar-locking system and variable actuator cap allow 360-degree reference hose routing, and the unit is a direct-fit upgrade for anyone running a Gen4 Turbosmart wastegate.

🚗 Suitable For:

• Custom External Wastegate setups on turbo diesel engines, targeting 35psi+ boost
• TD42, 1HZ/1HD, 1KD, etc. with custom manifold and Turbo setup.

📦 What’s Included:

• GenV CompGate40 HP wastegate unit
• Locking collar tool
• 10psi and 25psi base springs
• GenV SS316 valve seat
• V-band inlet and outlet clamps
• Inlet and outlet flanges
• Hose tail and blank fitting kit
• Turbosmart decal

🛠️ Fitment Details:

• 40mm external wastegate, direct-fit upgrade for existing Gen4 Turbosmart wastegate installations
• HP actuator supports base spring pressure up to 50psi, suited to high boost diesel applications
• Strap-type V-band clamps for inlet and outlet connections
• 1/8″ NPT reference ports, rotatable actuator housing for flexible clocking on install

⚙️ Why Choose This:

• Purpose-built HP actuator holds boost properly on diesel applications, where normal Petrol external wastegates struggle to reach high boost levels
• Nitronic 60 valve guide and 347 stainless steel body for long-term durability under sustained high boost and heat
• 17-7 PH stainless steel springs resist fatigue over repeated high-pressure cycles
• Optional liquid cooling provision for actuator in extreme applications
• Genuine Turbosmart unit, backed by Motorsport-proven engineering

📦 Dispatch Information:
We keep these on the shelf at our Brisbane store, for fast dispatch.

❓ FAQs:
Q: Will this fit my existing Turbosmart wastegate mounting?
A: Yes, the GenV range is a direct-fit upgrade for Gen4 Turbosmart external wastegates, using the same mounting orientation.

Q: Can I run this without additional boost control equipment?
A: The supplied 10psi and 25psi springs give a starting base pressure. Reaching 35psi+ reliably will typically require a boost controller.
