Ultima Rear Brake Shoes suitable for Toyota Hilux N70 N80 KUN26 GUN126

Ultima Rear Brake Shoes suitable for Toyota Hilux N70 N80 KUN26 GUN126

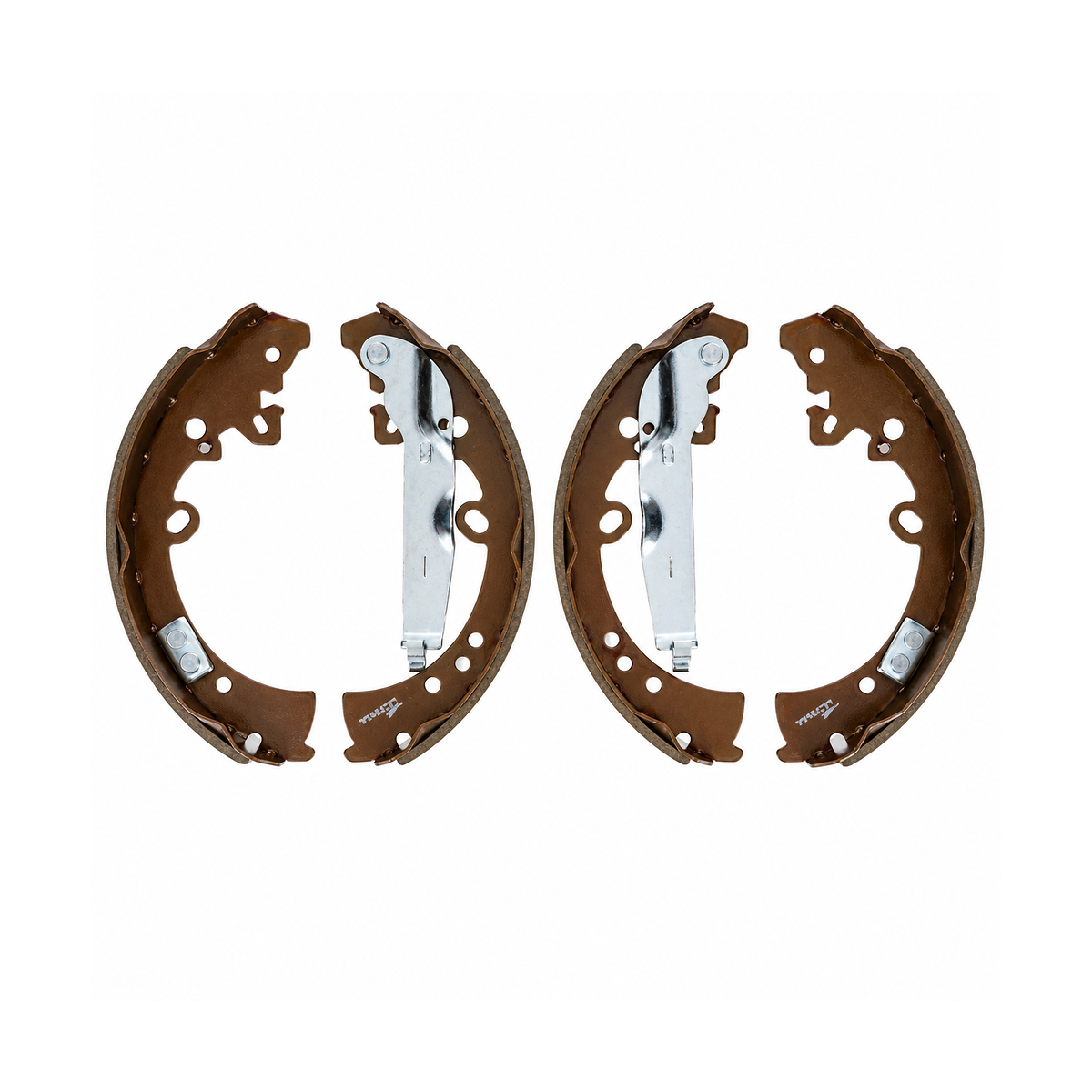

Ultima BS1832 rear brake shoes suitable for the Toyota Hilux N70 KUN26, KUN25 and GGN25 from 2005 and the N80 GUN126, GUN125 and GGN125 from 2015 with the 295mm rear drum. Set of four shoes, advanced ceramic formula.

Rear shoes on a Hilux last a long time, then they are suddenly down to the rivets and the hand brake will not hold on a hill. Pull the drums at every second service and check them. Fit the shoes with our adjuster and hardware kit and the drums clean, then set the adjusters and the hand brake cable.

🚗 Suitable for:

• Toyota Hilux N70 KUN26, KUN25 and GGN25 4WD, 2005 to 2015
• Toyota Hilux N80 GUN126 2.8 litre 1GD-FTV 4WD, 2015 on (SR, SR5, Workmate, Rugged, Rugged X)
• Toyota Hilux N80 GUN125 2.4 litre 2GD-FTV 4WD, 2015 on
• Toyota Hilux N80 GGN125 4.0 litre 1GR-FE 4WD, 2015 on

📦 What’s Included:

• 1x set of 4 Ultima BS1832 rear brake shoes

🔧 Fitment Details:

• Rear axle, 295mm drum
• Not the Rogue wide-track from 2023 or the GR Sport. Those have rear discs
• Fit with our rear brake shoe adjuster and hardware kit and check the wheel cylinders for leaks while the drum is off

⚙️ Why Choose Ultima:

• Advanced ceramic lining, low dust, quiet
• Bonded and riveted to the original pattern
• Australian brand with a fitment catalogue we check against

📦 Dispatch Information:

• Contact us for current stock and lead times.

❓ FAQs:

Q: Do these suit the 2WD Hilux?
A: The hi-rider 2WD yes, the low-ride 2WD no. Send your VIN.

Q: How do I know they are worn?
A: Lining under 1mm above the rivets, or a hand brake that goes to the top of its travel.

Q: Not sure it suits your vehicle?
A: Send us your VIN and we’ll check it before you order.
