1FZ-FE Coil On Plug Kit suitable for FZJ70 FZJ80 FZJ105 Landcruiser
Upgrade your 1FZ’s outdated ignition system with stronger spark, enhanced reliability and advanced ignition control using the HD Auto coil on plug conversion Kit.
Features a laser cut aluminium bracket designed to mount six individual NGK 2GR coil packs on a 1FZ-FE. Perfect for those wanting to run sequential ignition directly from an aftermarket ecu.
🚗 Suitable for:
- Distributor 1FZ-FE Models:
- Toyota Landcruiser 80 Series FZJ80 1FZ-FE Factory Distributor 4.5L Engine (Compatible with Aftmarket ECU only)
- Toyota Landcruiser 75 Series FZJ75 1FZ-FE Factory Distributor 4.5L Engine (Compatible with Aftmarket ECU only)
- Factory Coil Pack Ignition 1FZ-FE Models:
- Toyota Landcuiser 105 Series FZJ105 1FZ-FE Factory Coil Pack Ignition 4.5L Engine (Compatible with factory ECU or Aftermarket ECU)
- Toyota Landcuiser 79 Series FZJ79 1FZ-FE Factory Coil Pack Ignition 4.5L Engine (Compatible with factory ECU or Aftermarket ECU)

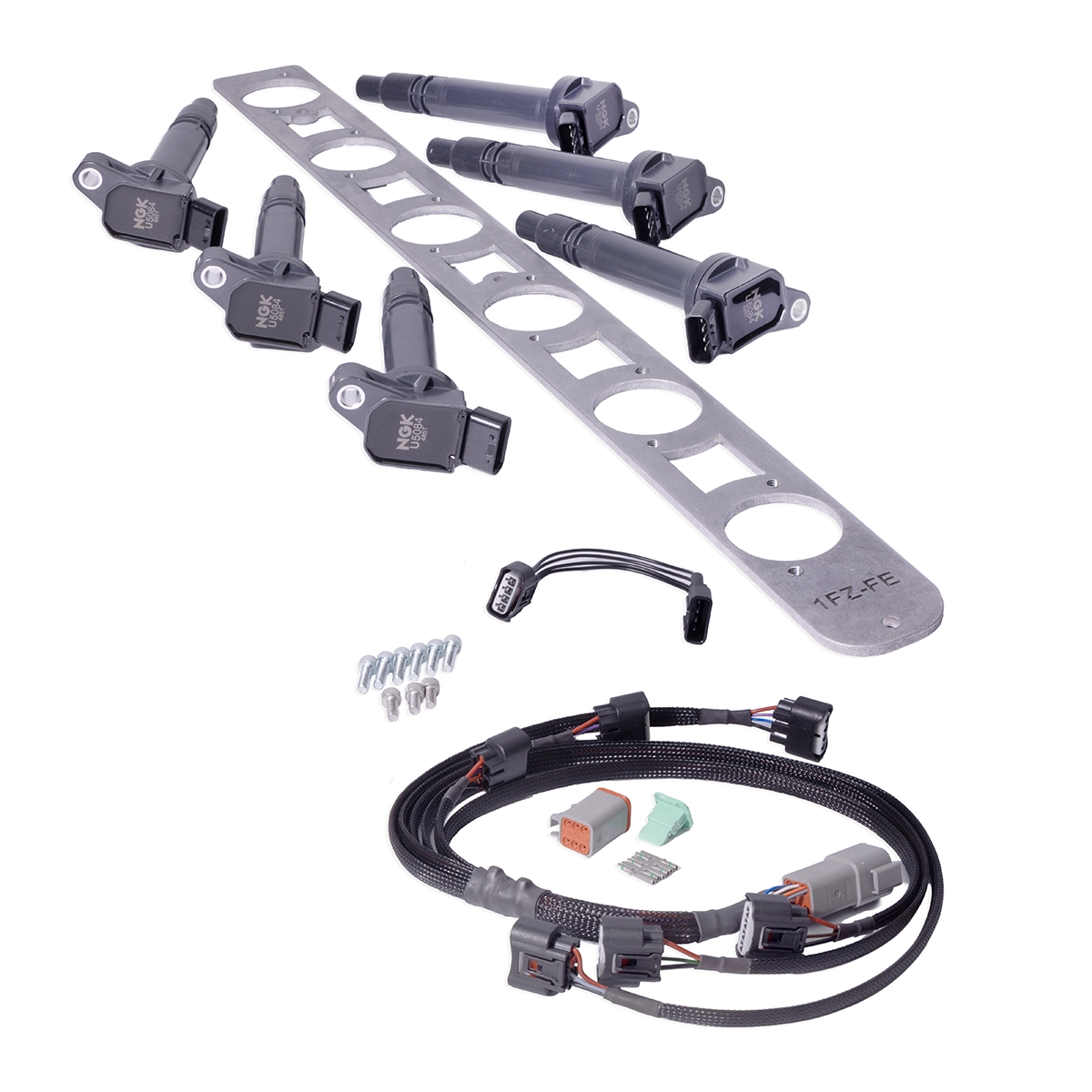

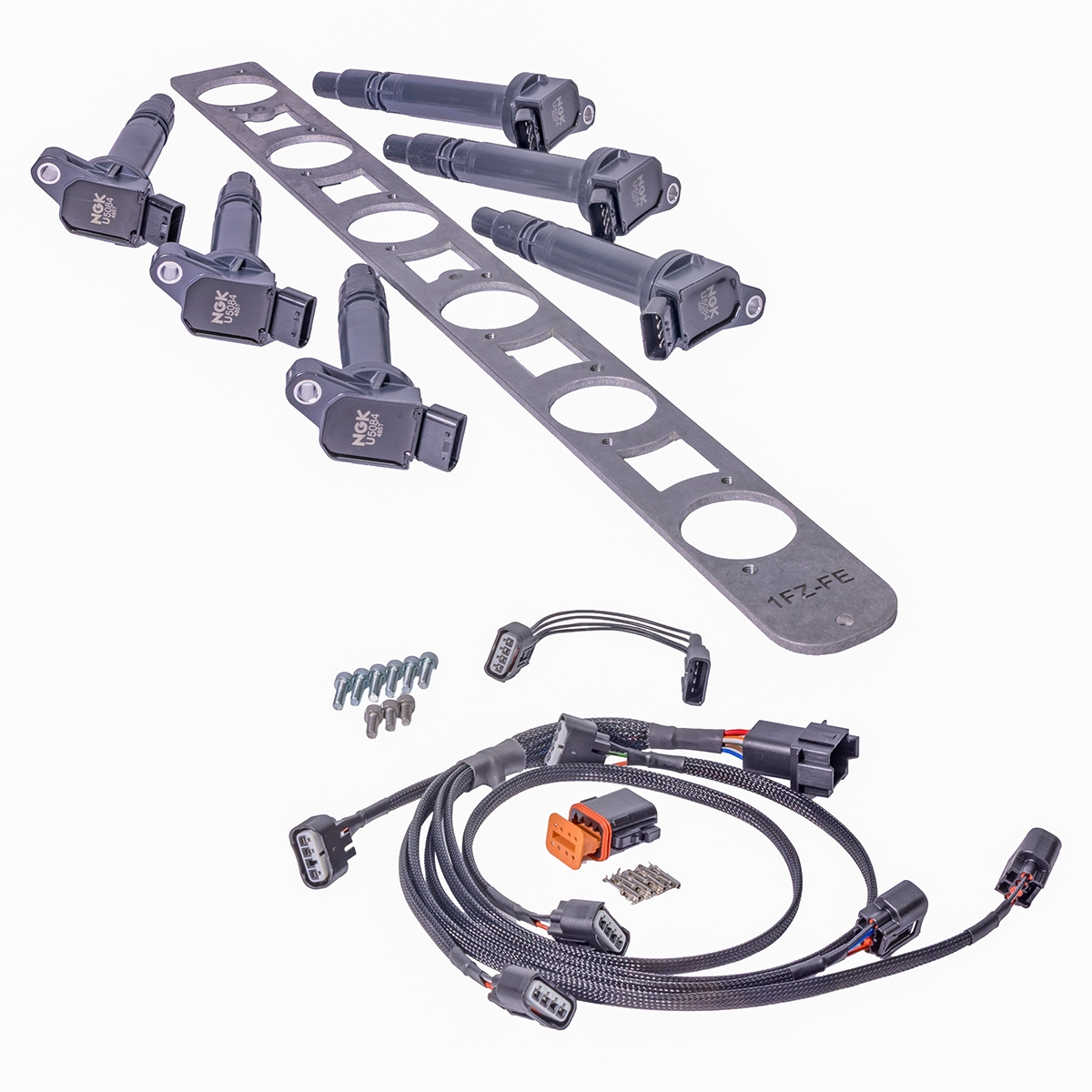

📦 This Kit Includes:

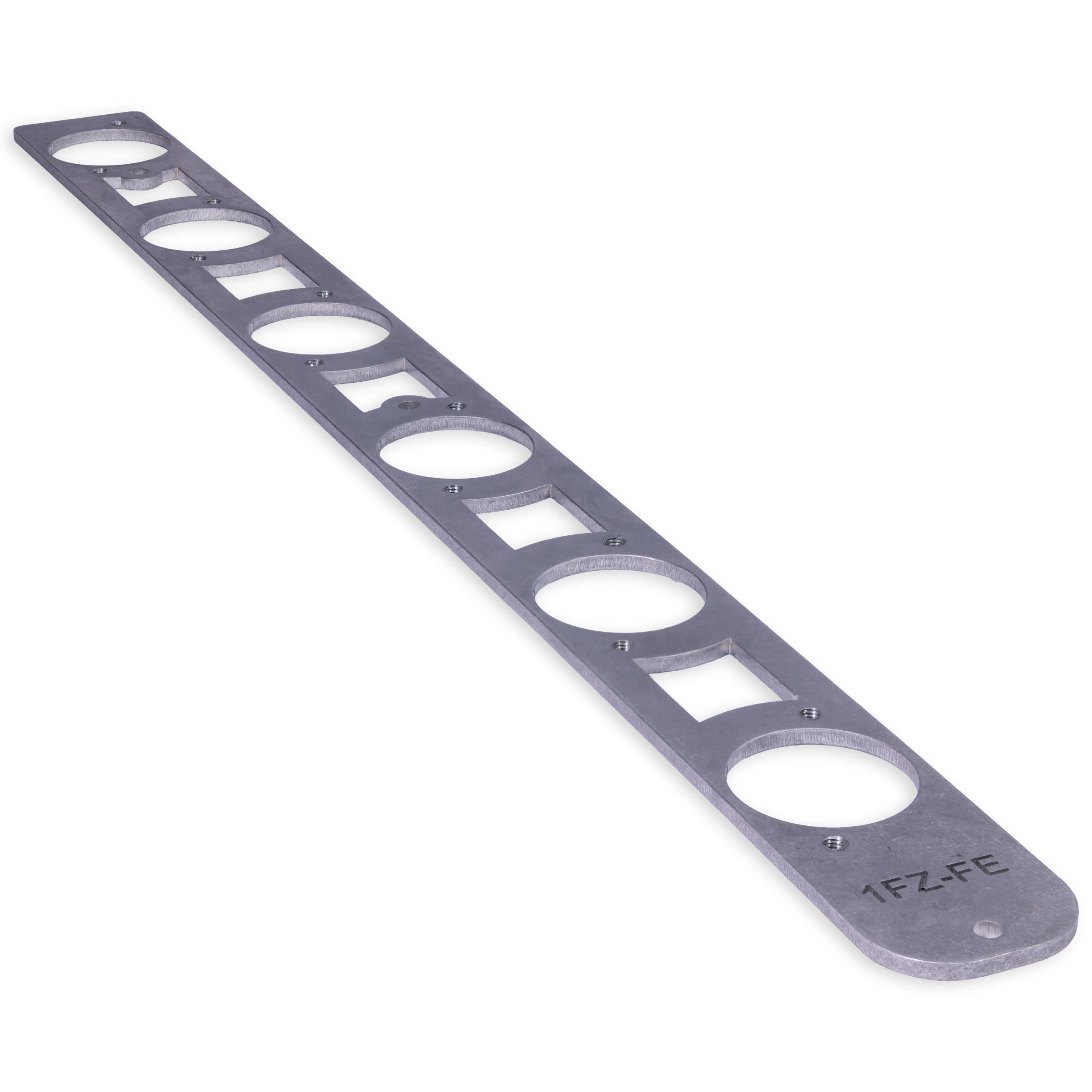

- 1x Laser Cut Coil Pack Mounting Bracket

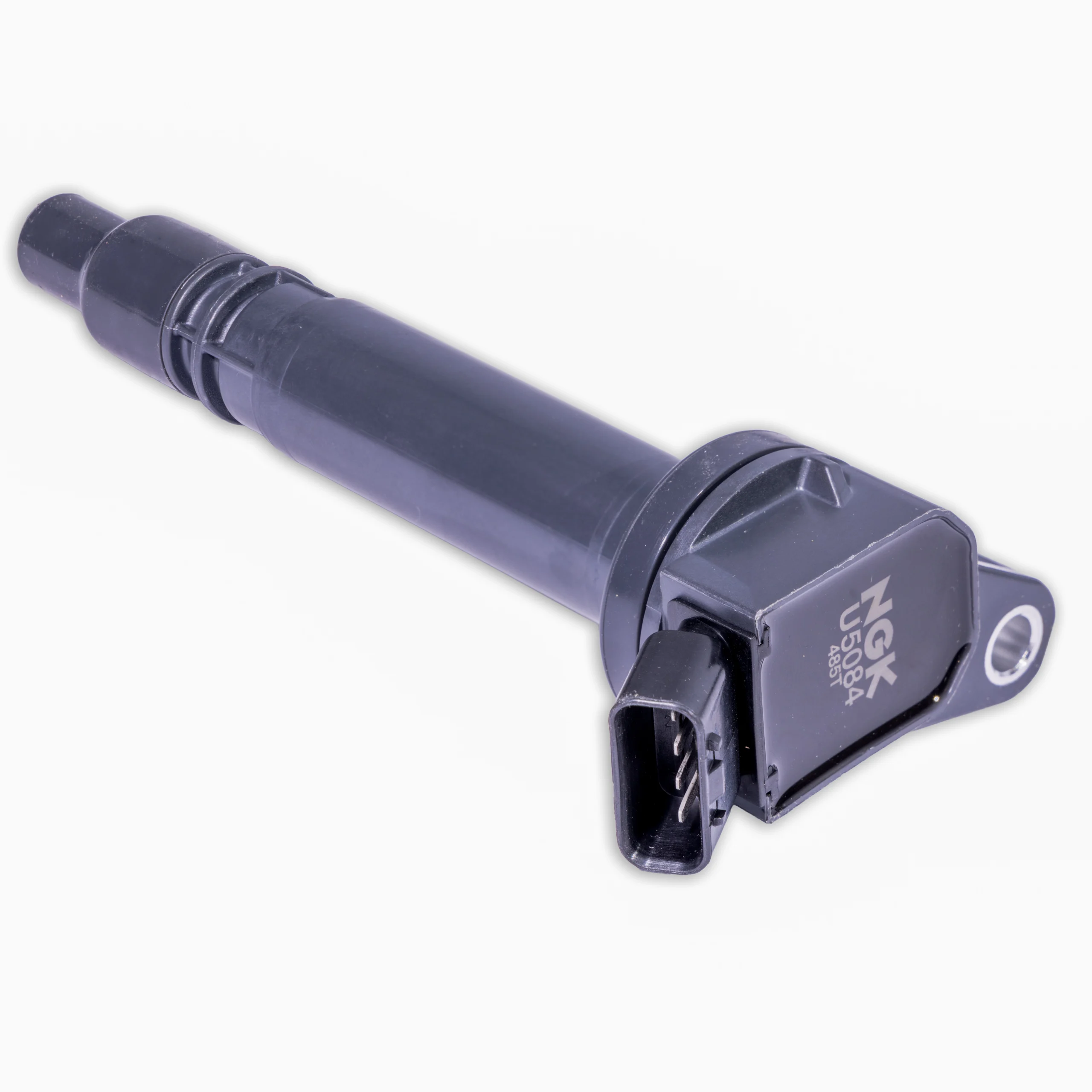

- 6x NGK Ignition Coils

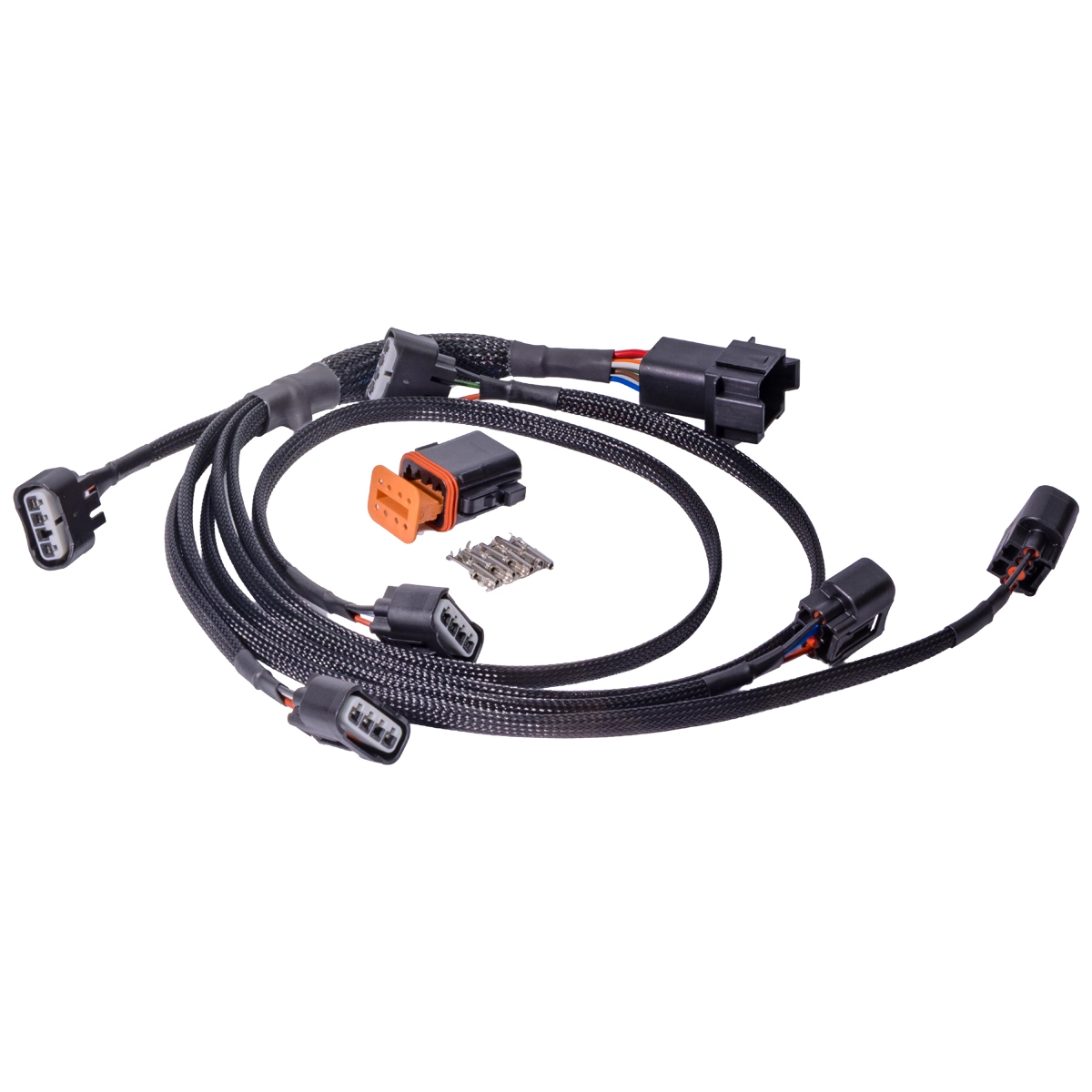

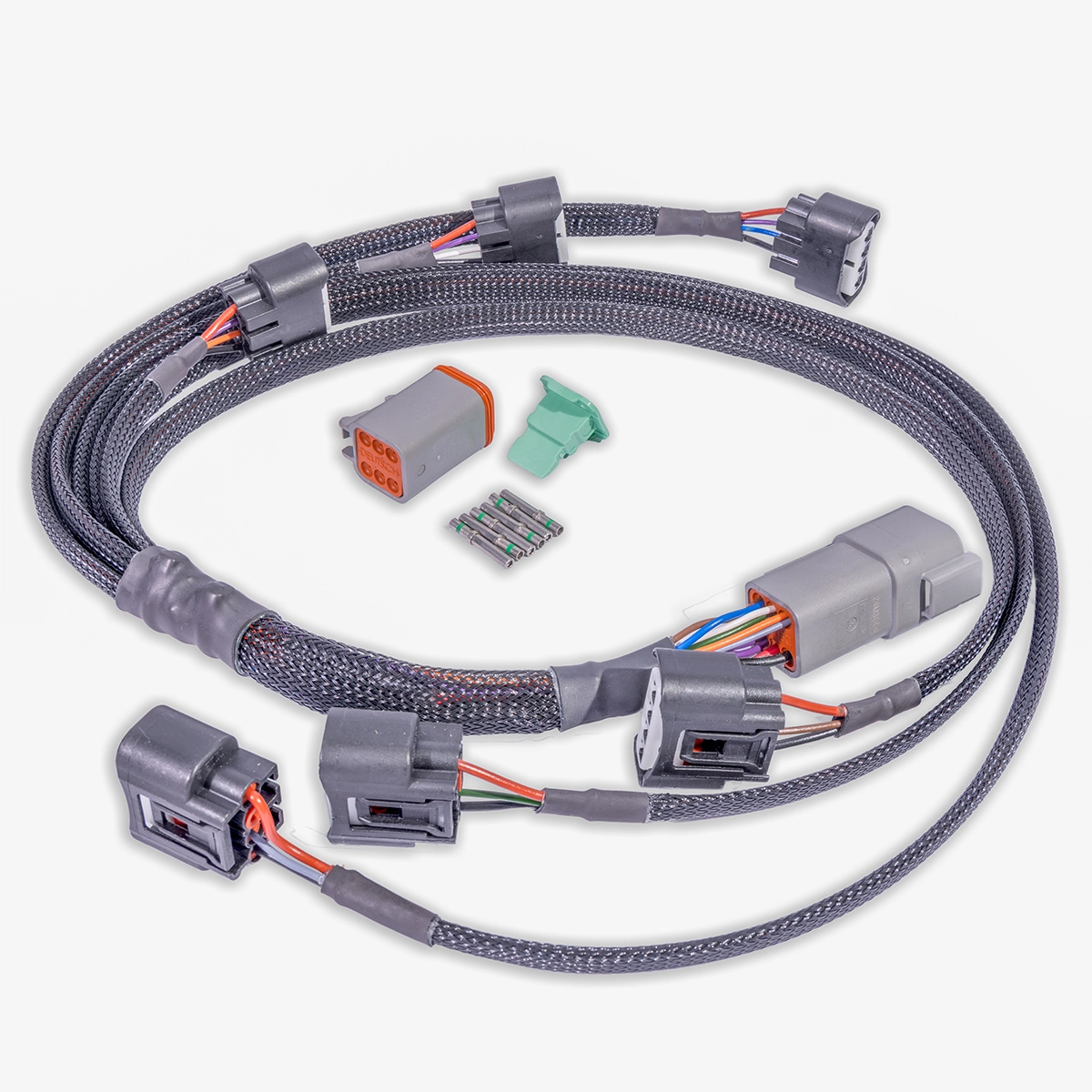

- 1x Conversion Loom (Aftermarket ECU or 105 Series)
- 9x Mounting Bolts

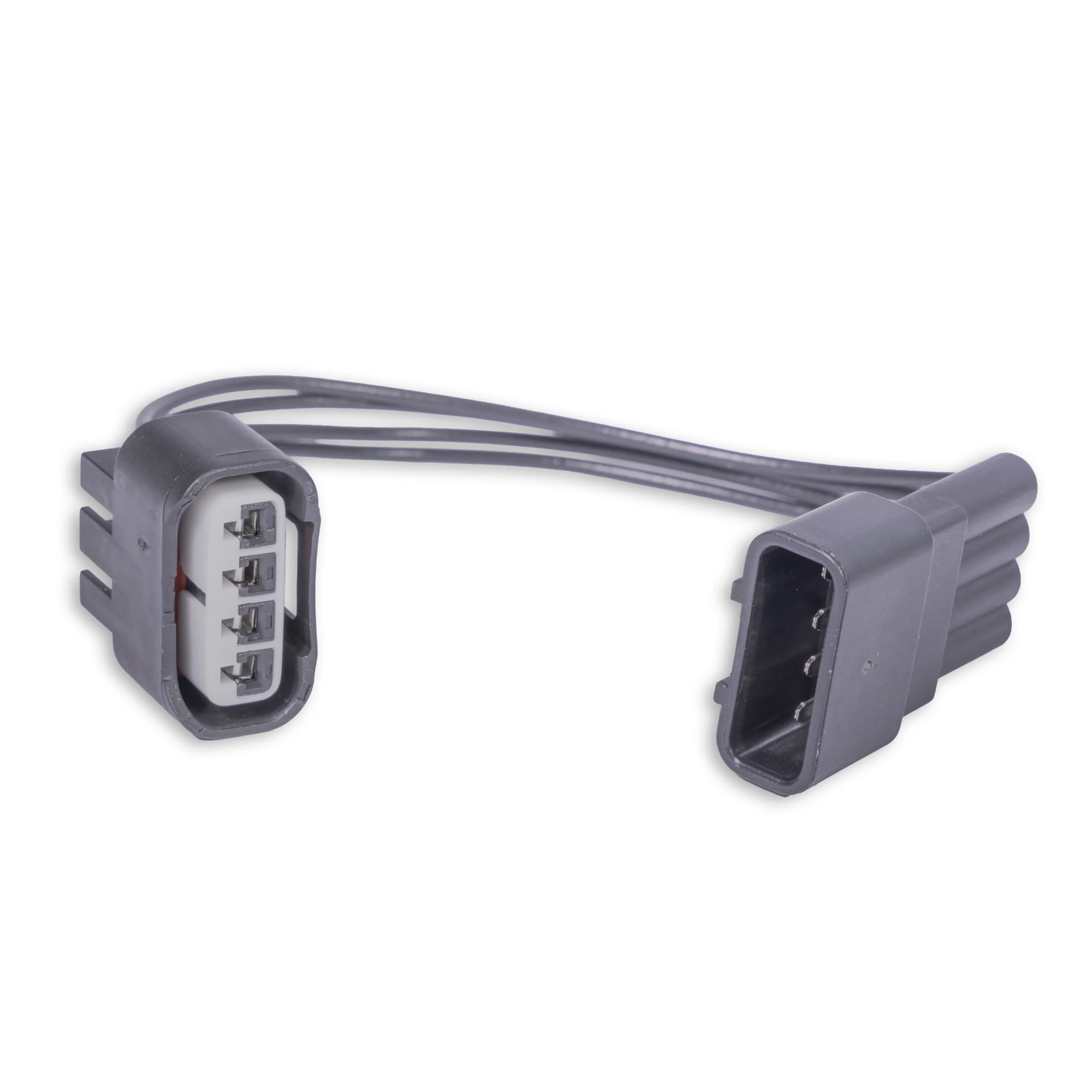

- (Standard Plenum Option Only) 1x Additional Adaptor Loom
🛠️ Fitment Details:
- 80 Series
The factory 80 series ECU can not run sequential ignition, this kit can only be used with a modern aftermarket ECU, we recommend Haltech Elite.
- 105 Series
The 105 series 1FZ has a ‘wasted spark’ ignition, with 3 coil packs mounted remotely, it is an outdated design for turbocharged engines. The factory 105 series ECU can run this coil pack kit as a ‘wasted spark’ configuration, but best results are gained by using an aftermarket ECU.
- Plenum Options:
This kit only fits comfortably with Forward Facing Intake Plenums – there is a tight fit with some interference between the top of the 2GR Coil Pack Connector and Intake Pipe Joiner
You may choose to run this kit with a standard 1FZ Intake Plenum using the supplied adaptor harness, but you will need to spin the coil pack around.
⚙️ Why Choose This:
- 80 series engines have a factory distributor, upgrading to the coil on plug kit has numerous advantages. Distributors are unreliable and not waterproof, upgrading to coil packs allows advanced ignition control and stronger spark through the use of an aftermarket ECU.
- The 105 series 1FZ has a ‘wasted spark’ ignition, with 3 coil packs mounted remotely, it is an outdated design for turbocharged engines. The factory 105 series ECU can run this coil pack kit as a ‘wasted spark’ configuration, but best results are gained by using an aftermarket ECU.
- Furthermore, our kit can be customized to suit your factory 105 series ECU and engine loom, making it an ideal solution for those aiming to eliminate the factory’s remote-mounted coil packs and ignition leads located at the engine’s front. This upgrade brings several benefits, such as reducing the risk of spark failure when navigating water crossings and eliminating the risk of factory ignition leads deteriorating over time.
📦 Dispatch information:
We keep these on the shelf at our Brisbane store, please allow 1-2 weeks for assembly and dispatch on this product.
❓ FAQs:
Q: Which direction does the loom run?
A: The loom was initially intended to run towards the front of the engine (Facing Distributor and down the side) But many installers choose to run it backwards toward the firewall, either option is possible.
Q: Does this work with my 80 Series ECU
A: Unfortunately the 80 Series factory ECU can not run this kit, as it has a factory distributor there is no output for six individual coils. An aftermarket ECU is required.
Q: Are wiring instructions provided?
A: A pinout loom is provided with this product for, but we cannot provide extended support when it comes to wiring these in yourself as a DIY installer. There are simply far, far too many variations of ECU, different builds around the world, different wiring, etc. for us to support every single installation.
