Axle Drive Flange Hub Gasket suitable for Toyota LandCruiser and Hilux

Axle Drive Flange Hub Gasket suitable for Toyota LandCruiser and Hilux

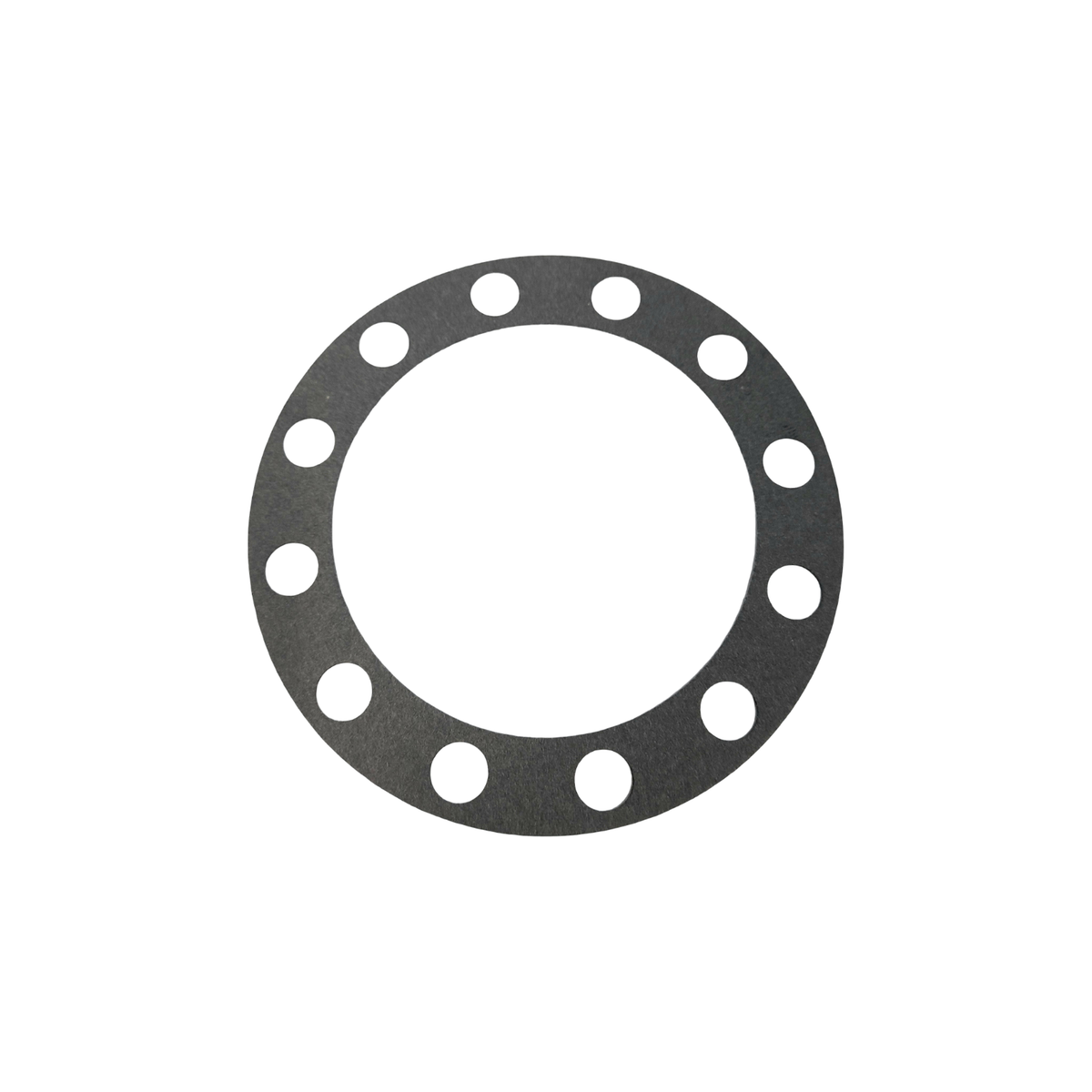

Drive flange hub gasket suitable for the Toyota LandCruiser 40 to 105 Series, the V8 70 Series to 07/2012 and the solid axle Hilux. It seals the axle drive flange to the hub. Twelve bolt holes. The same gasket does the front and the rear hub on the full floating axle, so one part number covers both ends.

Pull a drive flange to do bearings, a swivel hub or a rear axle seal and the old gasket tears. Fit a new one or the hub weeps oil. One per hub, so order two for an axle or four for the whole vehicle.

🚗 Suitable for:

• Toyota LandCruiser 70 Series HZJ73, HZJ75, FZJ75, HZJ78, HZJ79, FZJ78, FZJ79, HDJ78 and HDJ79, 1990 to 2007
• Toyota LandCruiser 70 Series VDJ76, VDJ78 and VDJ79 1VD-FTV, 2007 to 07/2012
• Toyota LandCruiser 80 Series FJ80, FZJ80, HZJ80, HDJ80 and HDJ81, 1989 to 1998
• Toyota LandCruiser 100 and 105 Series HZJ105, FZJ105 and HDJ101, 1998 to 2007
• Toyota LandCruiser 40 and 60 Series BJ, FJ and HJ, 1972 to 1990
• Toyota Hilux LN106, RN105, RN106, YN106, LN60, LN65, RN60, RN65, YN60, YN65 and YN67, 1979 to 1999

📦 What’s Included:

• 1x drive flange hub gasket

🔧 Fitment Details:

• 12 bolt holes. The 8 hole hub takes a different gasket, ask us
• Same gasket front and rear on the full floating axle
• One per hub. Two per axle, four to do the vehicle
• Pairs with the free wheeling hub gasket at the front

⚙️ Why Choose This Part:

• Cut to the original shape and thickness

📦 Dispatch Information:

• Contact us for current stock and lead times.

❓ FAQs:

Q: Front or rear?
A: Both. On these LandCruisers the front and rear drive flange gaskets are the same part. Count your bolt holes: 12 holes is this gasket.

Q: How many do I need?
A: One per hub. Two for one axle, four for the whole vehicle.

Q: Not sure it suits your vehicle?
A: Send us your VIN and we’ll check it before you order.
