High Angle CV Suitable for Isuzu Dmax / MU-X 2012-2020

High Angle CV Suitable for Isuzu Dmax / MU-X 2012-2020

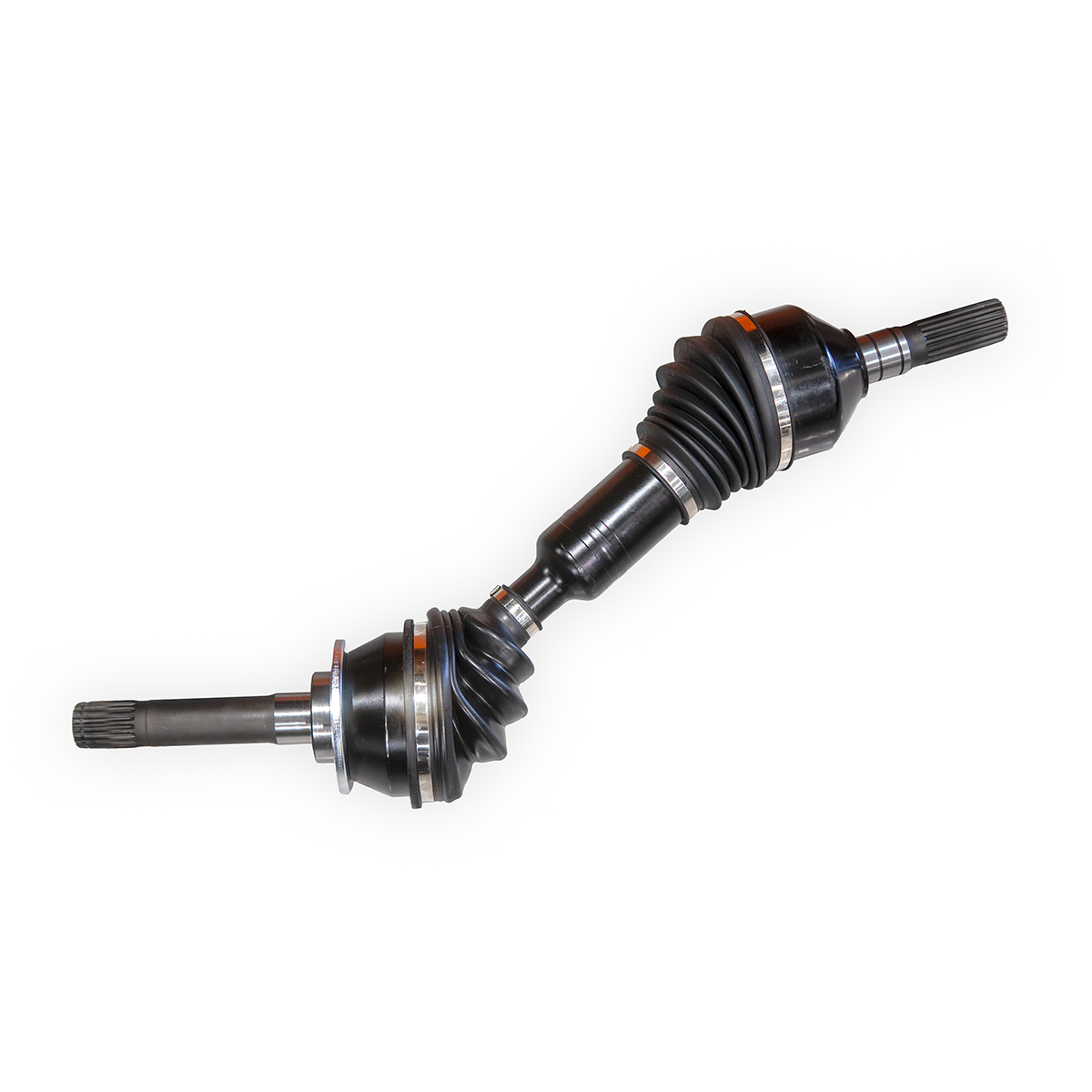

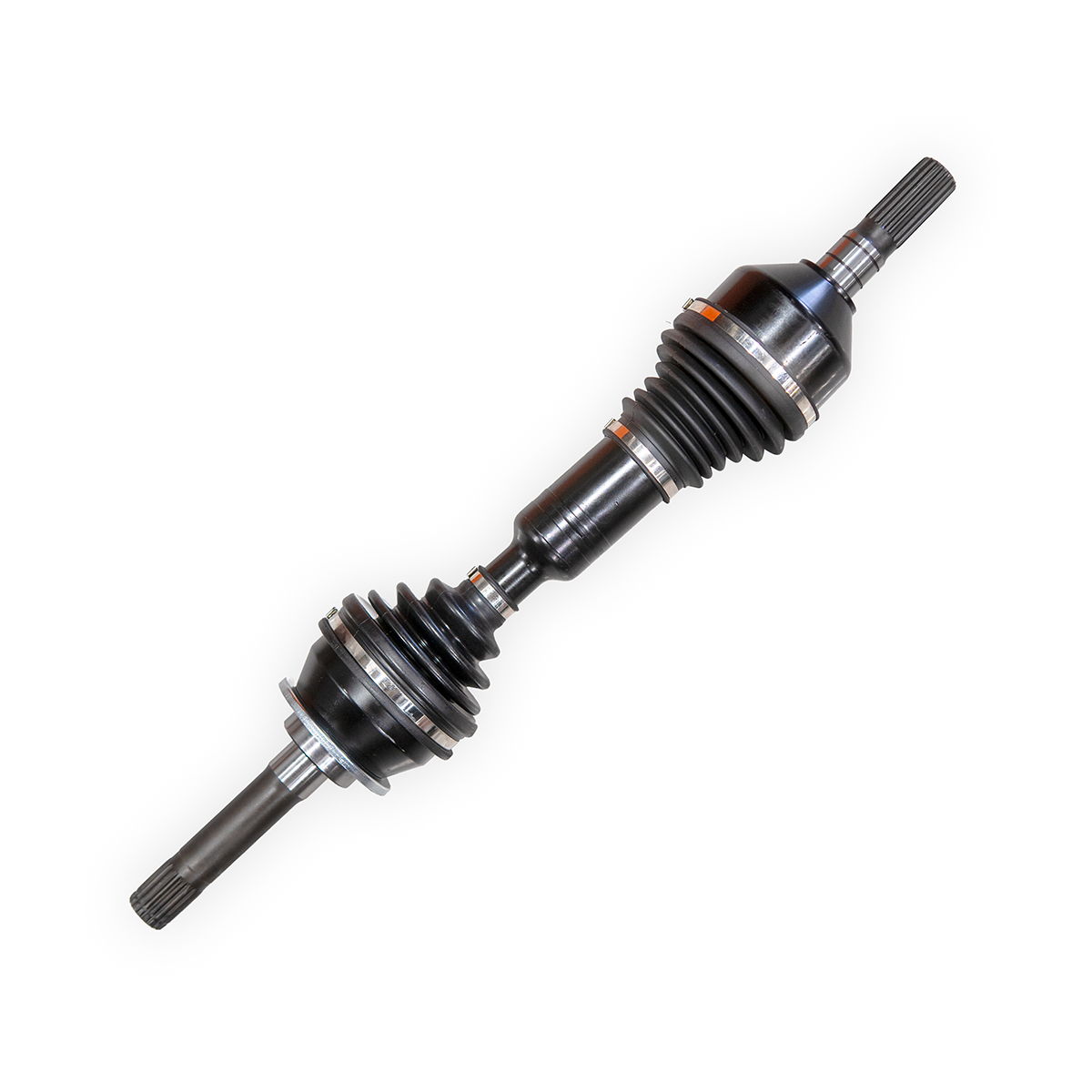

The BASCO telescopic CV shafts are a new product designed to address the issue of Excessive CV angle on your lifted Isuzu Dmax. If you’ve lifted your I.F.S 4wd and noticed binding, or premature joint wear at extreme suspension angles – this shaft is designed to keep your drivetrain happy. It’s a direct‐replacement for your factory shaft but with two key upgrades – a ‘plunging’ centre section that allows it to travel further in and out, and high‐angle CV joints that won’t bind when your suspension is at its extremes.

🚗 Suitable for

• Isuzu D-Max 4×4 – all 4JJ1 models from 6/2012 onwards.
• Isuzu MU-X 4×4 – All 4JJ1 models from 6/2012 onwards.
• TFS85 Models from 08/2016 onwards.

📦 What’s in the box

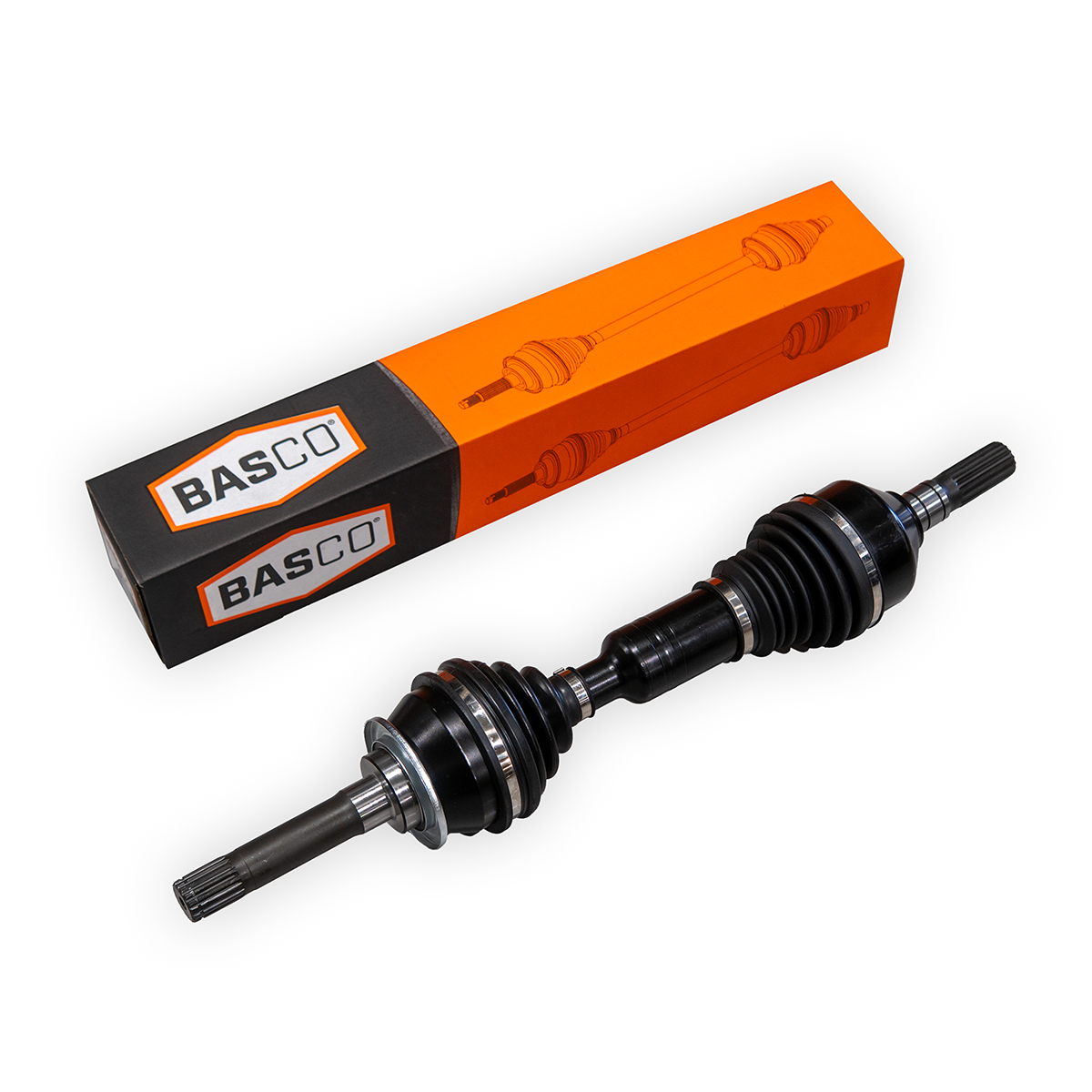

• 1x BASCO High angle CV shaft. Sold individually, will fit either left or right side.

🛠️ Fitment Details

• Torque flange bolts to factory spec.
• Check for clearance or binding.
• After initial 200 km, check for any signs of rubbing and clearance issues
• Torque flange bolts to factory spec.
• Grease and inspect splines and hub seals before fitting.

⚙️ Why Choose This Part

• These shafts are designed to address CV binding issues on lifted vehicles
• Unique plunging center section – Telescopic Length
• High-angle Inner & Outer CV joint
• We back this product with a 12 month/10,000 km guarantee against manufacturing defects (just be sure to inspect after your initial break-in)

📦 Dispatch information

In stock for fast dispatch from our Brisbane warehouse

❓ FAQs

Q: Is this an upgrade part?
A: Yes, these shafts were designed to address clearance issues with standard CV shafts and lifted vehicles.
