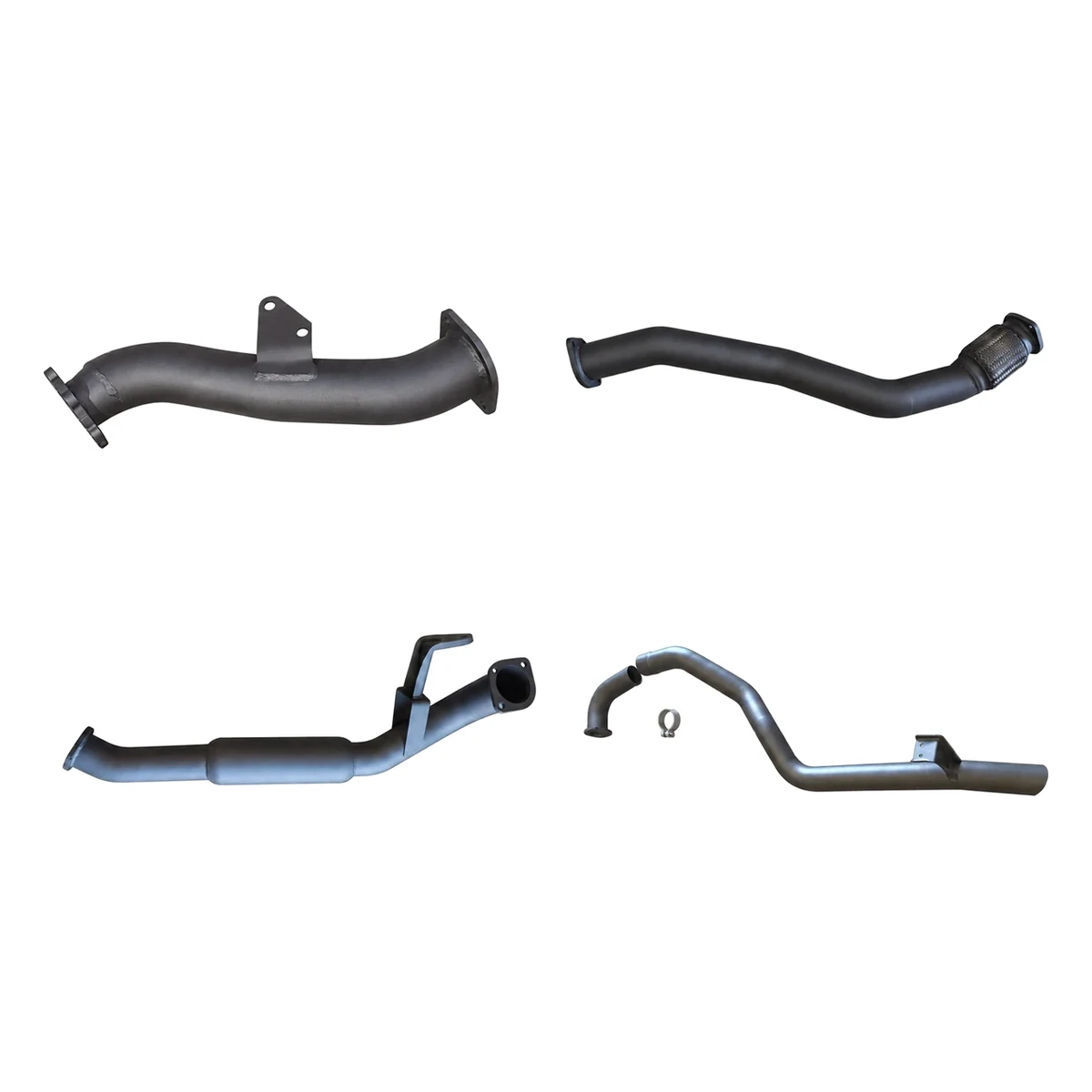

Manta’s 3″ aluminised steel turbo back exhaust for the Toyota LandCruiser 105 Series HZJ105 with the 4.2L 1HZ diesel and an aftermarket 6 Bolt Garrett Turbo. From the turbo back you get a 3″ aluminised steel dump pipe, a 3″ engine pipe with flex, a 3″ centre hotdog and a 3″ tailpipe. It is rated as a medium noise level exhaust system.

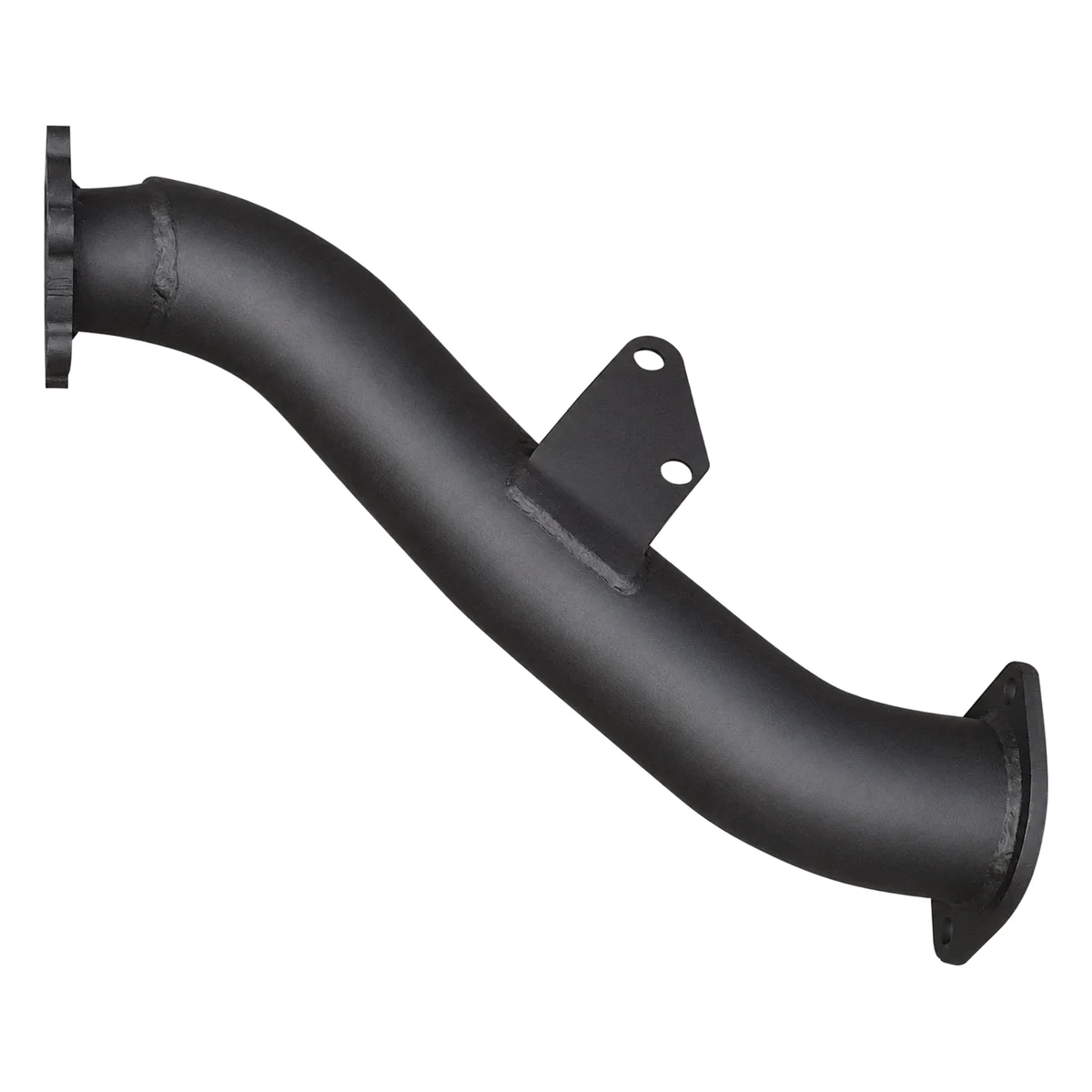

This kit is made for the 6 Bolt Garrett Turbo. Its dump pipe has a 6 bolt flat flange to match the outlet on the back of that turbo, so check your turbo flange before you order. The second photo shows the dump pipe and its flange.

This kit has no catalytic converter. Removing the cat is for off road use only. Emissions rules vary by state, and it’s on you and your installer to check what applies to your vehicle.

🚗 Suitable for:

• Toyota LandCruiser 105 Series HZJ105 wagon, 4.2L 1HZ diesel with an aftermarket 6 Bolt Garrett Turbo fitted, 1998 to 2007

📦 What’s Included:

• 1x 3″ aluminised steel dump pipe
• 1x 3″ aluminised steel engine pipe with flex
• 1x 3″ aluminised steel centre hotdog
• 1x 3″ aluminised steel tailpipe
• Gaskets, rubbers, bolts and nuts, Manta Red Seal silicone gasket sealant and Manta Bolt Locker thread lock
• Manta kit number MKTY0326

🔧 Fitment Details:

• Replaces everything from the turbo outlet back to the tailpipe
• No catalytic converter
• Single 3″ pipe, centre hotdog
• Dump pipe turbo flange: 6 bolt flat flange, to suit the 6 Bolt Garrett Turbo
• Rated as a medium noise level exhaust system

⚙️ Why Choose Manta:

• 3″ pipe from front to back
• Aluminised steel is mild steel coated inside and out, with a 2 year Manta warranty
• Designed and made in Australia, as Manta have done since 1974
• We fit these in house
• Manta is Australia’s largest exhaust manufacturer

🚚 Shipping and Pickup:
These Manta exhausts ship directly out of Melbourne or Perth depending on stock location availability with free in store pickup and transfer to our showroom in Darra, Queensland 4076 (15 mins from Brisbane CBD).

❓ FAQs:
Q: How do I check which turbo flange I have?
A: Look at the outlet on the back of your turbo, where the dump pipe bolts on, and count the bolts. The DTS TD05 uses a 3 bolt fixed flange, the 3 bolt Garrett a 3 bolt floating flange, and the 6 bolt Garrett a 6 bolt flat flange. The dump pipe in this kit only fits its matching flange, so check yours before you order.

Q: Will it fit a factory non-turbo HZJ105?
A: No. This kit suits an HZJ105 with an aftermarket turbo fitted.

Q: Does it keep a cat?
A: No. There is no cat in this kit, so it is for off road use only.

Q: How loud is it?
A: It is rated as a medium noise level exhaust system. It has a centre hotdog.
