Right Inner Tie Rod End suitable for Toyota LandCruiser 80 Series 105 Series and 70 Series

Right Inner Tie Rod End suitable for Toyota LandCruiser 80 Series 105 Series and 70 Series

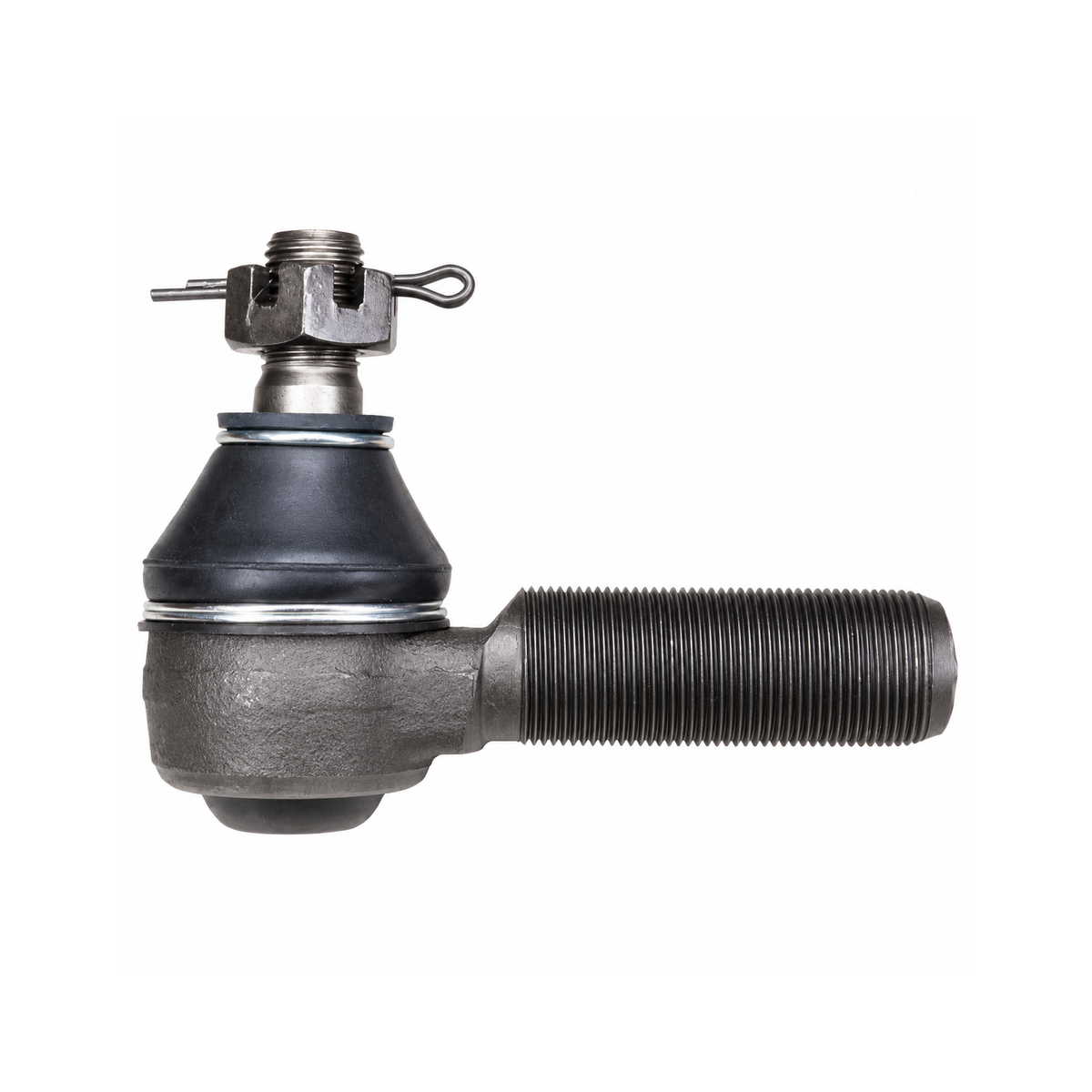

TE997 right inner tie rod end (driver side) suitable for the Toyota LandCruiser 80 Series and 105 Series and the coil sprung 70 Series from 1999. It sits on the steering relay rod (drag link).

A worn tie rod end shows up as play in the wheel when you rock it at 9 and 3 o’clock, a clunk over corrugations, or steering that wanders and needs correcting on the highway. If the boot has split, the joint is on borrowed time.

The 80 and 105 Series use four tie rod ends: left inner, right inner, left outer and right outer. We sell each on its own and the four as a kit. Replace them in pairs at least, and get a wheel alignment afterward.

🚗 Suitable for:

• Toyota LandCruiser 80 Series FJ80 3F-E, 1989 to 1992
• Toyota LandCruiser 80 Series FZJ80 1FZ-FE, 1992 to 1998
• Toyota LandCruiser 80 Series HZJ80 1HZ, 1990 to 1998
• Toyota LandCruiser 80 Series HDJ80 1HD-T, 1990 to 1995, and 1HD-FT, 1995 to 1998
• Toyota LandCruiser 80 Series HDJ81 1HD-T and 1HD-FT, 1989 to 1997
• Toyota LandCruiser 105 Series HZJ105 1HZ, 1998 to 2007
• Toyota LandCruiser 105 Series FZJ105 1FZ-FE, 1998 to 2002
• Toyota LandCruiser 70 Series HZJ78 and HZJ79 1HZ, 1999 to 2007
• Toyota LandCruiser 70 Series FZJ78 1FZ-FE, 1999 to 2001, and FZJ79, 1999 to 2007
• Toyota LandCruiser 70 Series HDJ78 and HDJ79 1HD-FTE, 2001 to 2007
• Toyota LandCruiser 70 Series VDJ76, VDJ78 and VDJ79 1VD-FTV, 2007 to 2022
• Toyota LandCruiser 70 Series GDJ79 1GD-FTV, 2023 on

📦 What’s Included:

• 1x TE997 right inner tie rod end
• 1x castle nut
• 1x split pin

🔧 Fitment Details:

• Right inner (driver side)
• Fits on the steering relay rod (drag link)
• One per vehicle in this position. The full steering needs all four ends
• Torque the castle nut to spec and fit a new split pin
• Wheel alignment needed after fitting

⚙️ Why Choose This Part:

• Greasable steel housing with a hardened ball stud
• Made to the original taper and thread, no reaming or adapters
• Supplied with the castle nut and split pin

📦 Dispatch Information:

• Contact us for current stock and lead times.

❓ FAQs:

Q: Which one do I need?
A: The outers sit at the steering knuckles on the tie rod, the inners on the relay rod that runs across to the pitman arm. Left is the passenger side, right is the driver side. This listing is the right inner.

Q: Do I need all four?
A: If one has let go the others are the same age. Doing all four and aligning once is the cheaper path. We list the four-piece kit.

Q: Not sure it suits your vehicle?
A: Send us your VIN and we’ll check it before you order.
