Left Outer Tie Rod End suitable for Toyota LandCruiser 80 Series 105 Series

Left Outer Tie Rod End suitable for Toyota LandCruiser 80 Series 105 Series

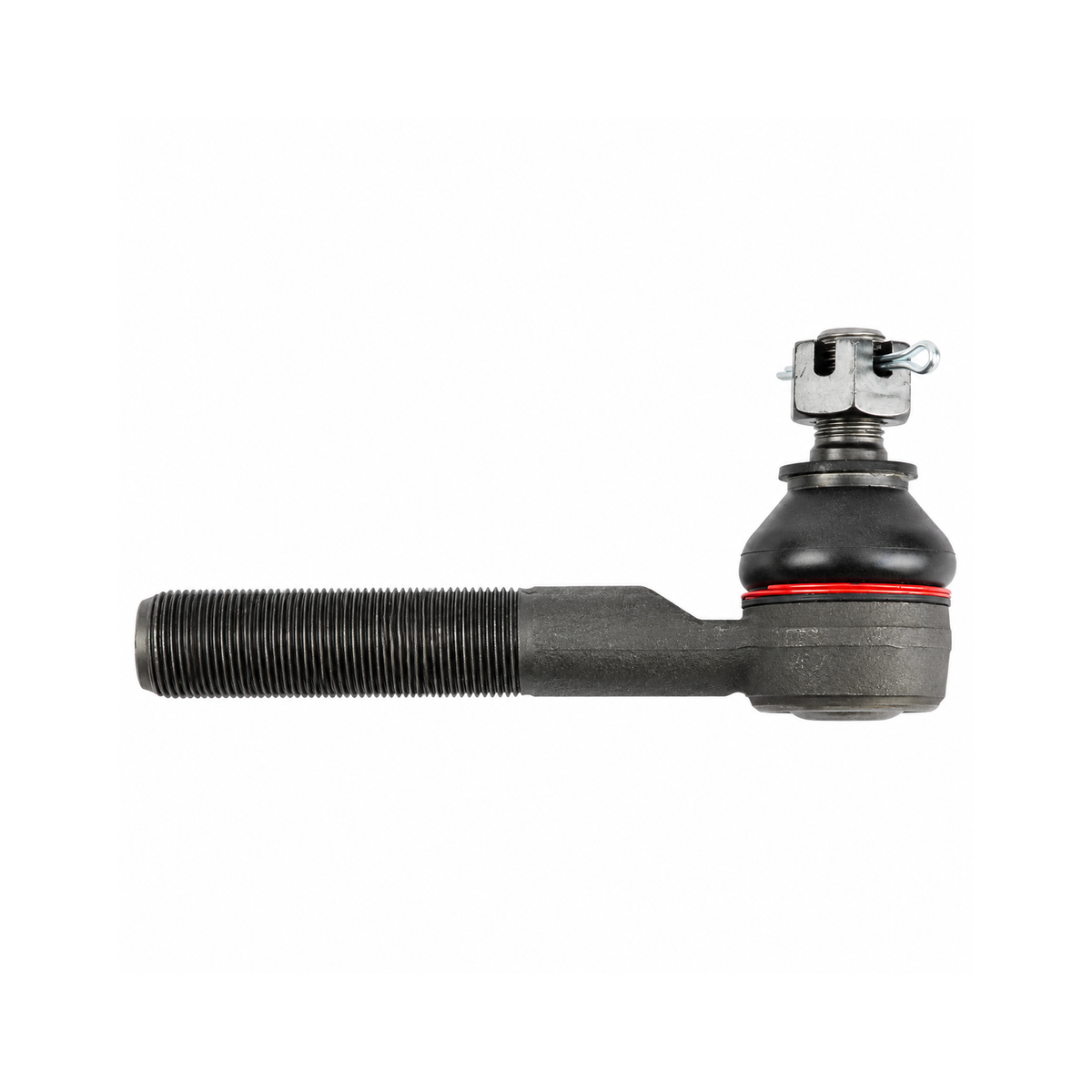

TE990 left outer tie rod end (passenger side) suitable for the Toyota LandCruiser 80 Series and 105 Series. It sits on the tie rod, at the steering knuckle.

A worn tie rod end shows up as play in the wheel when you rock it at 9 and 3 o’clock, a clunk over corrugations, or steering that wanders and needs correcting on the highway. If the boot has split, the joint is on borrowed time.

The 80 and 105 Series use four tie rod ends: left inner, right inner, left outer and right outer. We sell each on its own and the four as a kit. Replace them in pairs at least, and get a wheel alignment afterward.

🚗 Suitable for:

• Toyota LandCruiser 80 Series FJ80 3F-E, 1989 to 1992
• Toyota LandCruiser 80 Series FZJ80 1FZ-FE, 1992 to 1998
• Toyota LandCruiser 80 Series HZJ80 1HZ, 1990 to 1998
• Toyota LandCruiser 80 Series HDJ80 1HD-T, 1990 to 1995, and 1HD-FT, 1995 to 1998
• Toyota LandCruiser 80 Series HDJ81 and HZJ81, 1989 to 1997
• Toyota LandCruiser 105 Series HZJ105 1HZ, 1998 to 2007
• Toyota LandCruiser 105 Series FZJ105 1FZ-FE, 1998 to 2002

📦 What’s Included:

• 1x TE990 left outer tie rod end
• 1x castle nut
• 1x split pin

🔧 Fitment Details:

• Left outer (passenger side)
• Fits on the tie rod, at the steering knuckle
• One per vehicle in this position. The full steering needs all four ends
• Torque the castle nut to spec and fit a new split pin
• Wheel alignment needed after fitting

⚙️ Why Choose This Part:

• Greasable steel housing with a hardened ball stud
• Made to the original taper and thread, no reaming or adapters
• Supplied with the castle nut and split pin

📦 Dispatch Information:

• Contact us for current stock and lead times.

❓ FAQs:

Q: Which one do I need?
A: The outers sit at the steering knuckles on the tie rod, the inners on the relay rod that runs across to the pitman arm. Left is the passenger side, right is the driver side. This listing is the left outer.

Q: Do I need all four?
A: If one has let go the others are the same age. Doing all four and aligning once is the cheaper path. We list the four-piece kit.

Q: Not sure it suits your vehicle?
A: Send us your VIN and we’ll check it before you order.
