Ultima Handbrake Shoes suitable for Toyota LandCruiser 80 Series – 210mm

Ultima Handbrake Shoes suitable for Toyota LandCruiser 80 Series – 210mm

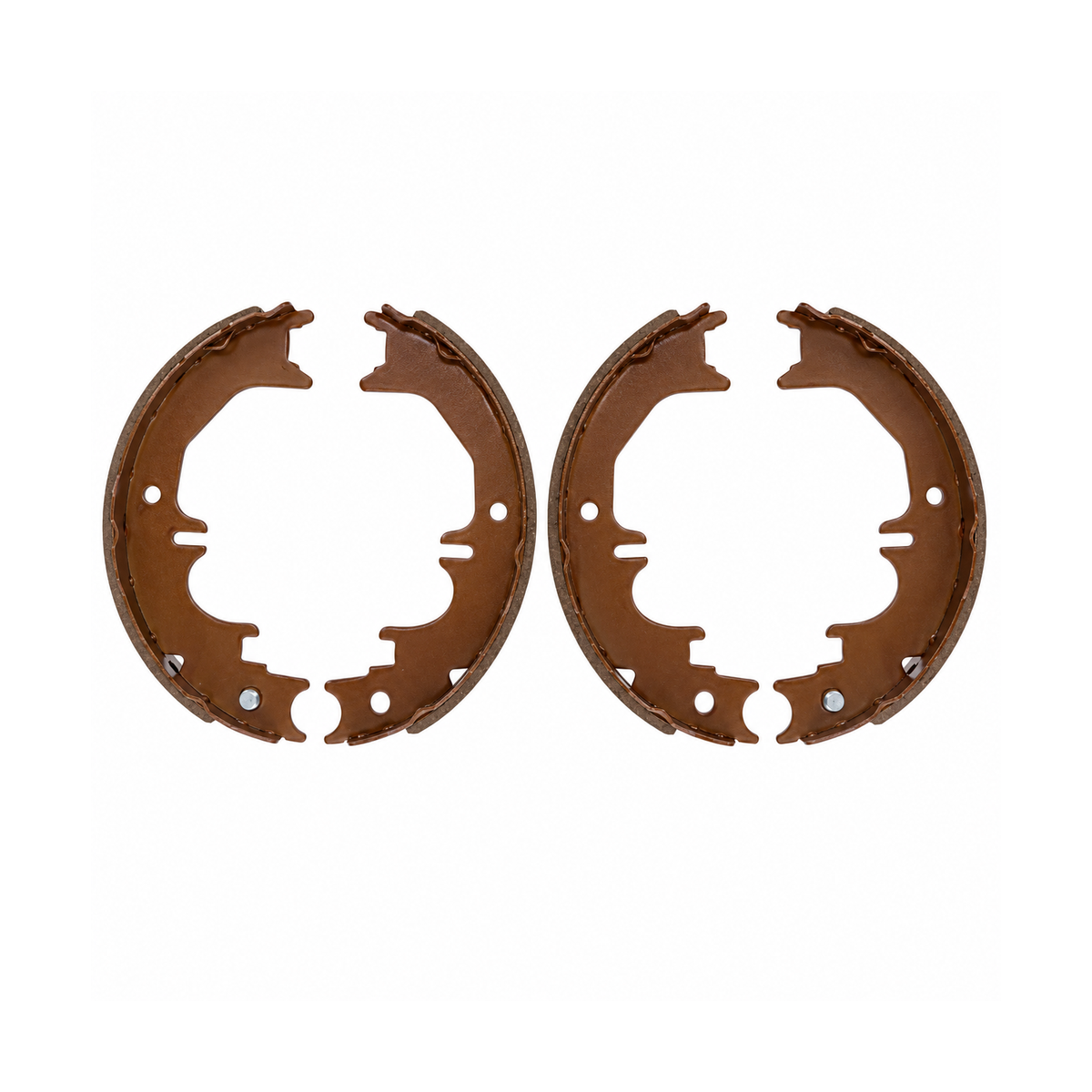

Ultima BS1744 handbrake shoes for the 210mm handbrake drum. They suit the Toyota LandCruiser 70, 80, 100 and 105 Series, the Prado from the 90 Series to the 150, and the FJ Cruiser. Advanced Ceramic formula.

If the handbrake won’t hold on a slope, or the lever comes right up before it bites, the shoes are usually worn. The 80 Series came with two drum sizes, so measure yours first. The 229mm version is listed separately.

🚗 Suitable for:

• Toyota LandCruiser 70 Series FZJ75 1FZ-FE, 1992 to 1999, FZJ78 1999 to 2001 and FZJ79 1999 to 2007
• Toyota LandCruiser 70 Series HZJ75 1HZ, 1990 to 1999
• Toyota LandCruiser 70 Series HZJ79 1HZ, 1999 to 2007 and 2016 on
• Toyota LandCruiser 70 Series VDJ76, VDJ78 and VDJ79 1VD-FTV, 2007 to 2025
• Toyota LandCruiser 70 Series BJ70, BJ73, BJ75, FJ70, FJ73, FJ75 and PZJ70, 1984 to 1994
• Toyota LandCruiser 80 Series FJ80 3F-E, 1990 to 1992
• Toyota LandCruiser 80 Series FZJ80 1FZ-FE, 1992 to 1998
• Toyota LandCruiser 80 Series HZJ80 1HZ, 1990 to 1998
• Toyota LandCruiser 80 Series HDJ80 1HD-T, 1990 to 1995, and 1HD-FT, 1995 to 1998
• Toyota LandCruiser 100 Series UZJ100 2UZ-FE, 1998 to 2007
• Toyota LandCruiser 105 Series FZJ105 1FZ-FE, 1998 to 2002
• Toyota LandCruiser Prado 90 Series KZJ90 and KZJ95 1KZ-TE, RZJ95 3RZ-FE and VZJ95 5VZ-FE, 1996 to 2003
• Toyota LandCruiser Prado 120 Series KZJ120, KDJ120, GRJ120, RZJ120, VZJ120 and TRJ120, 2002 to 2009
• Toyota LandCruiser Prado 150 Series KDJ150, KDJ155, GRJ150, TRJ150 and GDJ150, 2009 to 2024
• Toyota FJ Cruiser GSJ15 1GR-FE, 2011 to 2016
• 210mm handbrake drum only

📦 What’s Included:

• Ultima BS1744 handbrake shoe set, 4 shoes, does both rear wheels

🔧 Fitment Details:

• Suits the 210mm handbrake drum inside the rear rotor hat
• Remove the rear rotor to reach the shoes
• Replace the springs and hold-down hardware if they’re tired, then adjust the shoes and cable after fitting

⚙️ Why Choose Ultima:

• Advanced Ceramic formula
• Made to the factory shoe size

📦 Dispatch Information:

• Contact us for current stock and lead times.

❓ FAQs:

Q: Which size do I need?
A: The 80 Series used two handbrake drum sizes, 210mm and 229mm. Take a rear rotor off and measure across the inside of the hat, or send us your VIN and we’ll check it.

Q: Does it suit my 70 Series ute?
A: Only if it has rear disc brakes with a handbrake drum in the rotor hat. Check before you order.
