Ultima Rear Brake Rotor suitable for Toyota LandCruiser 70 Series

Ultima Rear Brake Rotor suitable for Toyota LandCruiser 70 Series

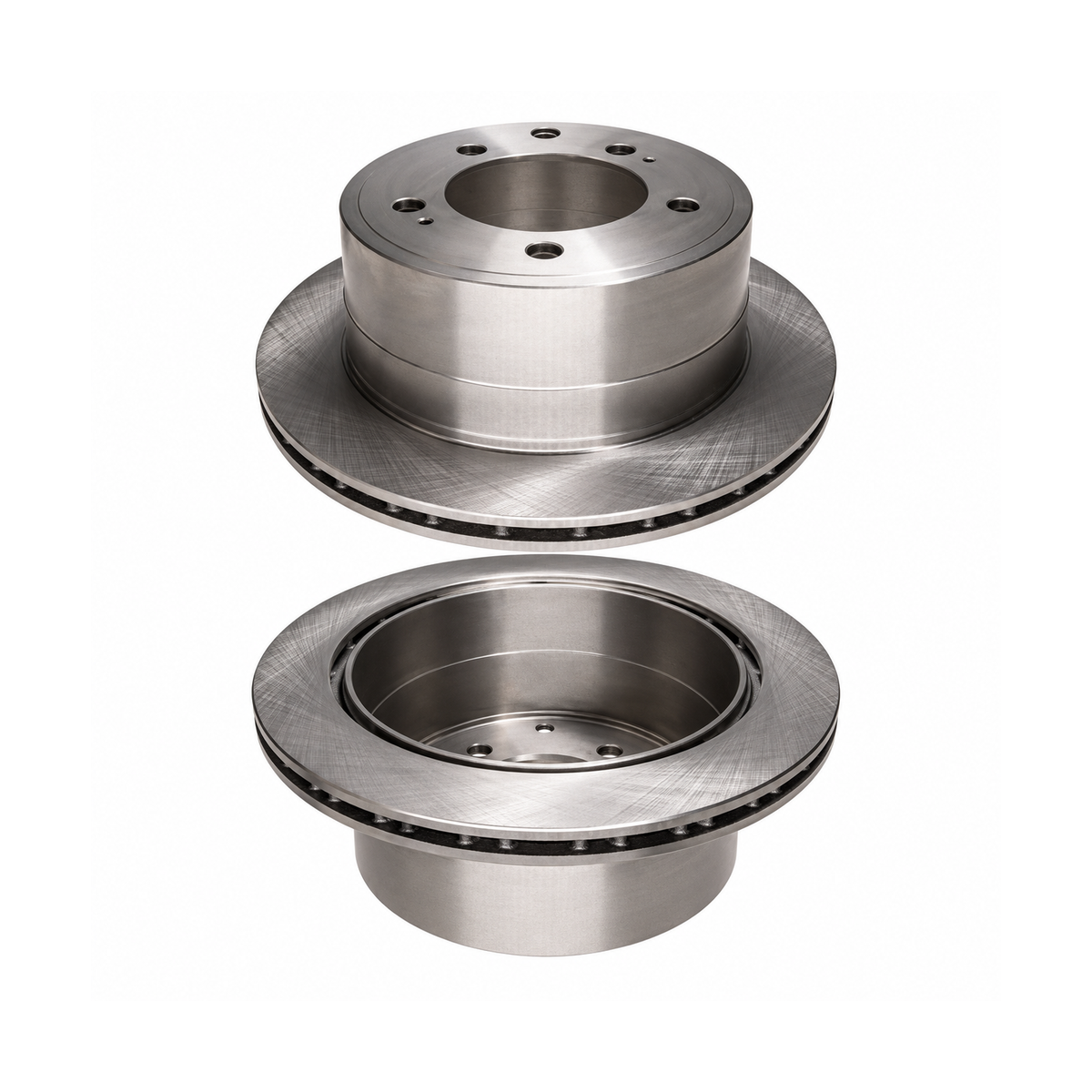

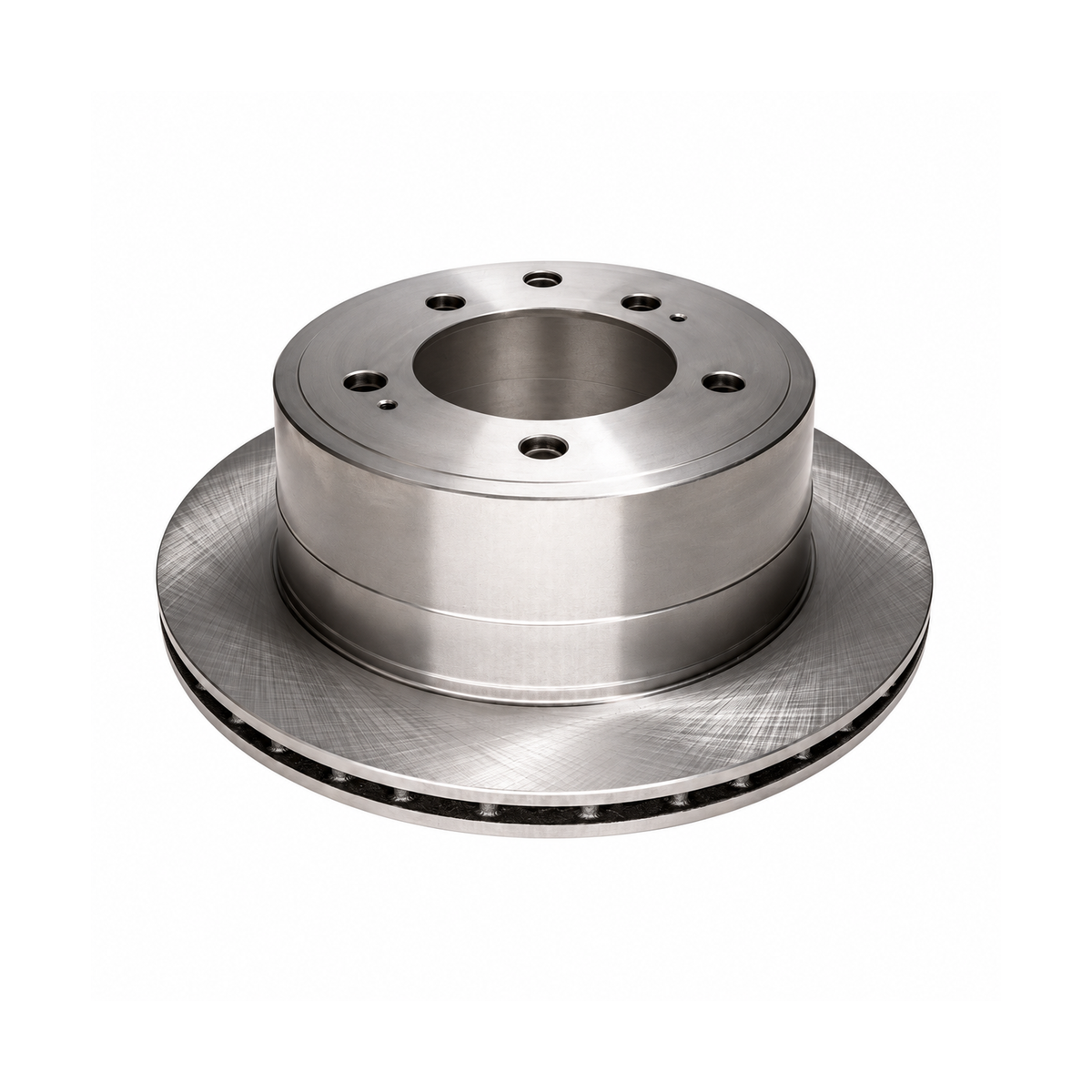

Ultima AAP794 rear disc brake rotor suitable for the rear disc Toyota LandCruiser 70 Series, including the V8 VDJ76, VDJ78 and VDJ79 and the 2023 on GDJ76, GDJ78 and GDJ79. It is a 312mm vented rotor with the drum-in-hat hand brake surface machined into the centre. The same rotor suits the Hilux GUN126R Rogue and GR Sport, which run rear discs.

Sold each. Order two for the axle. If the handbrake has been dragging, check the hand brake shoes and the inside of the hat while the rotor is off, and fit new DB1200 rear pads at the same time.

🚗 Suitable for:

• Toyota LandCruiser 70 Series VDJ76, VDJ78 and VDJ79 1VD-FTV, 2007 to 2025 (rear disc models)
• Toyota LandCruiser 70 Series GDJ76, GDJ78 and GDJ79 1GD-FTV, 2023 on
• Toyota LandCruiser 70 Series GRJ79 1GR-FE, 2007 on
• Toyota LandCruiser 70 Series HDJ78 and HDJ79 1HD-FTE, 2001 to 2007 (rear disc models)
• Toyota LandCruiser 70 Series HZJ78 and HZJ79 1HZ, 1999 to 2007 (rear disc models)
• Toyota LandCruiser 70 Series FZJ78 1FZ-FE, 1999 to 2001, and FZJ79, 1999 to 2007 (rear disc models)
• Toyota Hilux GUN126R Rogue and GR Sport 1GD-FTV, 2020 to 2025 (rear disc models)

📦 What’s Included:

• 1x Ultima AAP794 rear disc brake rotor

🔧 Fitment Details:

• 312mm outside diameter, 18mm new thickness, 16mm minimum thickness
• 103mm height, 110mm centre bore, 5 x 150mm stud pattern
• Drum-in-hat hand brake surface for the 210mm BS1744 handbrake shoes
• Rear disc brake models only. Many 78 and 79 Series run rear drums, so look behind the rear wheel before you order
• Takes DB1200 rear brake pads

⚙️ Why Choose Ultima:

• Cast and machined to the original dimensions
• Balanced, so no judder on a fresh fit

📦 Dispatch Information:

• Contact us for current stock and lead times.

❓ FAQs:

Q: How do I know if my 70 Series has rear discs or drums?
A: Look behind the rear wheel. A disc shows a flat rotor with a caliper over it. A drum is a closed steel bowl with no caliper. The drum models take our AAP1868 rear drum instead.

Q: Do I need to replace both rear rotors?
A: Yes. A new rotor on one side with a worn one on the other pulls under brakes. Order two and fit new rear pads.

Q: Not sure it suits your LandCruiser?
A: Send us your VIN and we’ll check it before you order.
