Diff Pinion Seal suitable for Toyota LandCruiser 80 Series (Front and Rear)

Diff Pinion Seal suitable for Toyota LandCruiser 80 Series (Front and Rear)

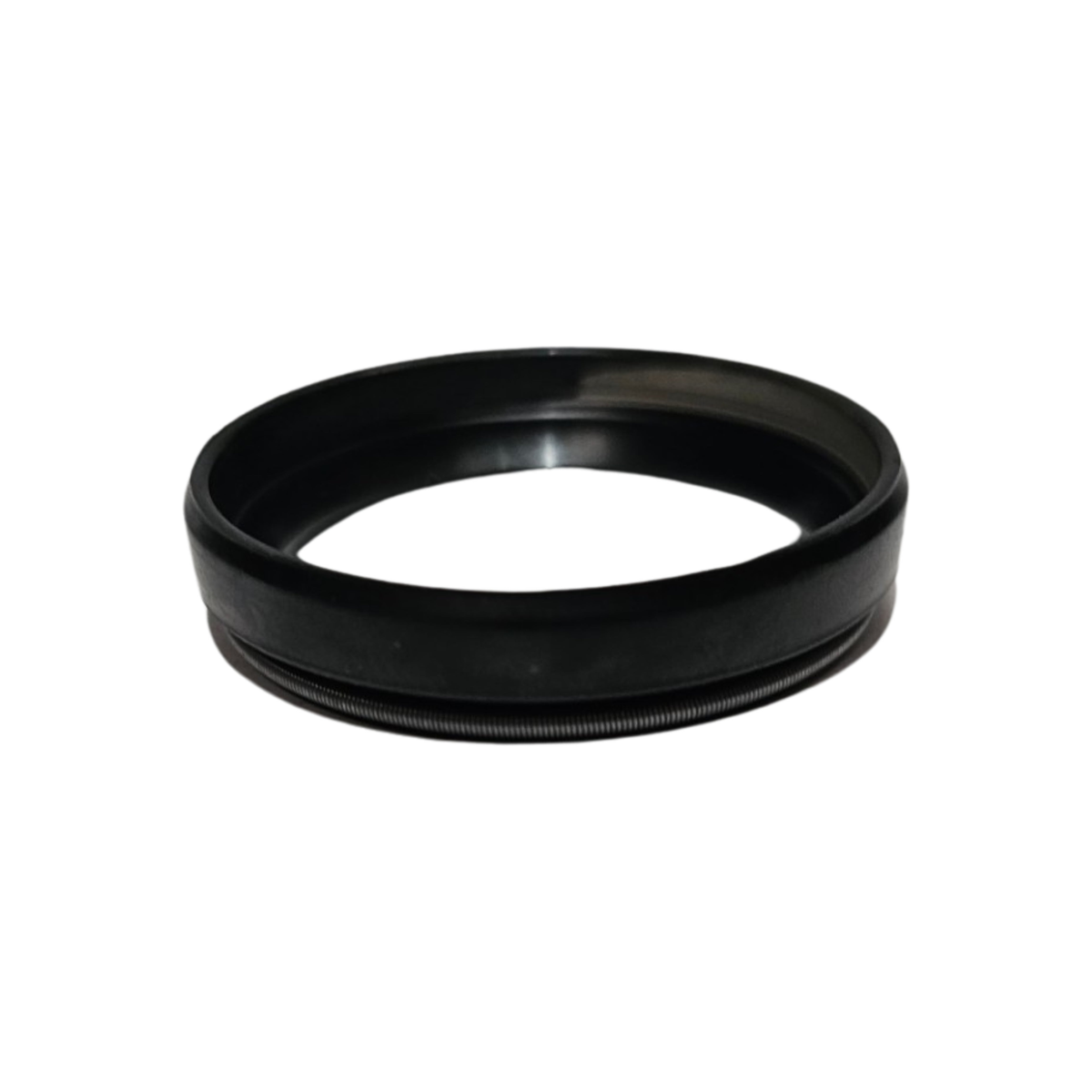

OSN0400 differential pinion seal suitable for the Toyota LandCruiser 80 Series. It is a 38mm x 74mm seal, 11mm to 18mm wide, and the same seal does the front and the rear diff, so one part number covers both ends.

Oil weeping from behind the pinion flange onto the tailshaft and underbody means this seal has gone. Replace it with the pinion flange off, and fit a new pinion nut. One per diff.

🚗 Suitable for:

• Toyota LandCruiser 80 Series FJ80 3F-E, 1989 to 1992
• Toyota LandCruiser 80 Series FZJ80 1FZ-FE, 1992 to 1998
• Toyota LandCruiser 80 Series HZJ80 1HZ, 1990 to 1998
• Toyota LandCruiser 80 Series HDJ80 1HD-T, 1990 to 1995, and 1HD-FT, 1995 to 1998
• Toyota LandCruiser 80 Series HDJ81 1HD-T and 1HD-FT, 1989 to 1997

📦 What’s Included:

• 1x OSN0400 diff pinion seal

🔧 Fitment Details:

• 38mm inside diameter, 74mm outside diameter, 11mm to 18mm wide
• Same seal front and rear diff
• One per diff. Order two to do both ends
• Set the pinion nut torque and preload to spec when refitting the flange

⚙️ Why Choose This Part:

• Nitrile lip with a garter spring

📦 Dispatch Information:

• Contact us for current stock and lead times.

❓ FAQs:

Q: Front or rear diff?
A: Both. The 80 Series uses the same pinion seal in the front and rear diff.

Q: Do I need a new pinion flange?
A: Only if the old one is grooved where the seal runs. We list the BPF1001 pinion flange.

Q: Not sure it suits your vehicle?
A: Send us your VIN and we’ll check it before you order.
