HD Automotive High Flow Airbox suitable for Toyota Landcruiser HDJ70 HZJ70 Series

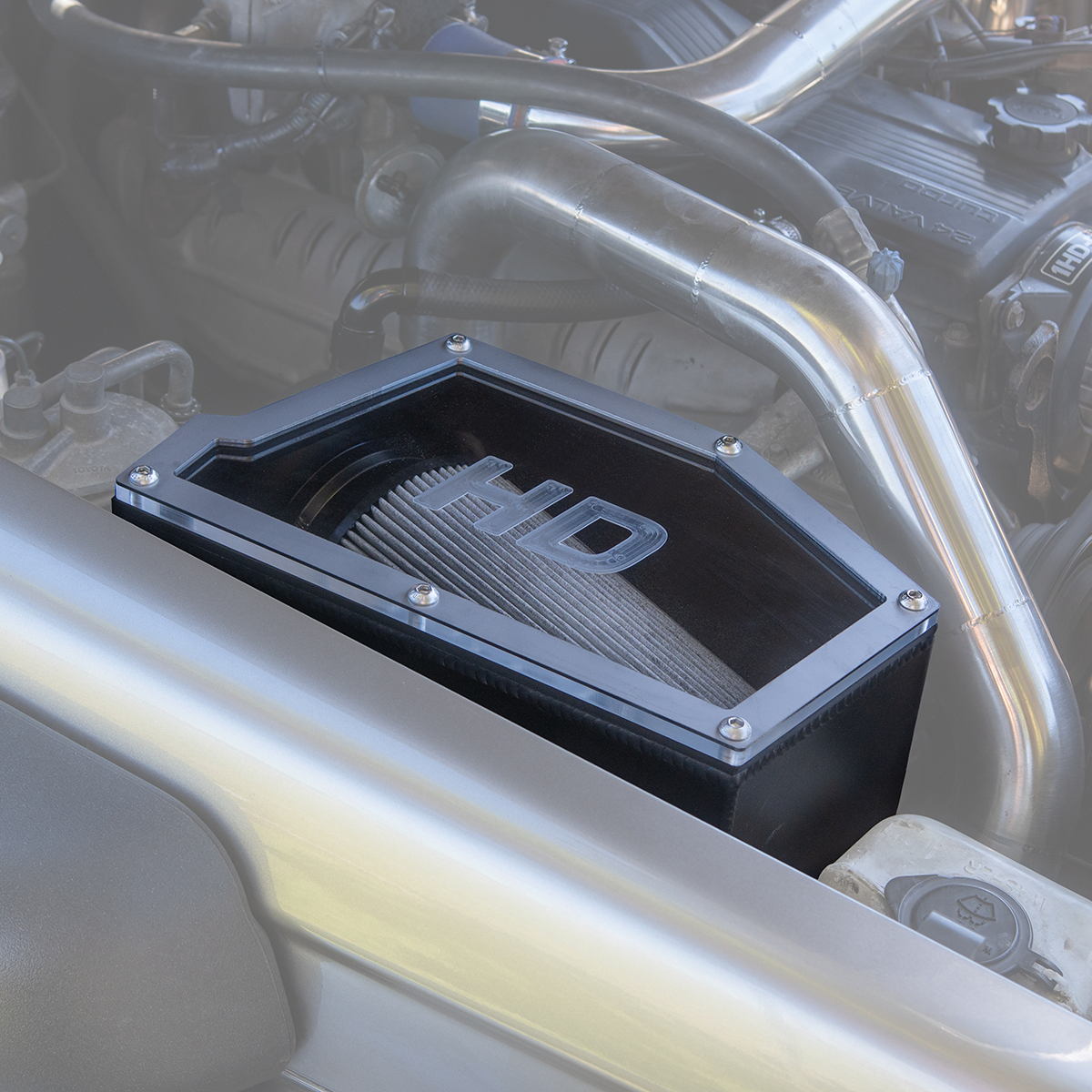

The stock airbox on the HDJ70 and HZJ70 becomes a restriction point beyond 200HP or 20psi of boost. The HD Automotive airbox is built for CT26-based turbo upgrades on the 1HD-FTE and turbocharged 1HZ, with a 4″ inlet and outlet, CNC laser cut construction, and a 9″ tapered off-road paper pod filter. Direct fit, no relocation required, suits builds up to 400HP.
⚙️ Why This Airbox:
- 4″ inlet and outlet for unrestricted airflow at elevated power levels
- CNC laser cut components including 10mm laser etched acrylic lid with 2mm stainless steel clamping flange
- 9″ tapered off-road paper pod filter suited to on and off-road conditions
- Water collection sump with one-way duck bill valve drains water automatically
- AN10 push-lock breather for crank case ventilation
🔧 Fitment Details:
- Direct fit, no relocation of existing components required
- Required beyond 200HP or 20psi boost; suitable up to 400HP
- Silicone supplied at full length; some trimming may be required to fit
- Specify your turbocharger at checkout so correct silicone adaptors can be supplied
- Does not suit the factory CT20B on HDJ70 Series
- HZJ owners running Denco, DTS, Safari, or other older non-CT26 kits should carefully review fitment before ordering
📦 What’s Included:
- 1x HD Automotive HDJ70/HZJ70 airbox with 9″ off-road paper pod filter
- Silicone adaptors to suit chosen turbocharger
- Crank case breather hose
- Duck bill drain valve
- Mounting hardware
🚗 Suitable for:
- Toyota Landcruiser HDJ76 / HDJ78 / HDJ79 1HD-FTE with CT26-based turbo upgrade (Gturbo, UFI, Arashi, etc.)
- Toyota Landcruiser HZJ75 / HZJ78 / HZJ79 1HZ with CT26-based turbo kit
- Suits 4″ Safari Armax or 4″ stainless steel snorkel
- Does NOT suit the factory CT20B turbocharger on HDJ70 Series
- May not suit Denco, DTS, Safari, and other older style 1HZ kits not using a CT26 turbocharger
📦 Dispatch Information:
We aim to keep this airbox in stock. At times there is a 2 to 4 week lead time. Contact us to confirm current availability before ordering.
❓ FAQs:
Q: Will this suit the factory CT20B turbo on my HDJ79?
A: No. This airbox is designed for aftermarket CT26-based turbo upgrades. It does not suit the factory CT20B turbocharger.
Q: I have an older 1HZ turbo kit. Will this fit?
A: It may not suit Denco, DTS, Safari, and other older kits not using a CT26 turbocharger. Review the product photos carefully and contact us before ordering if you are unsure.
Q: Do I need to specify my turbocharger when ordering?
A: Yes. Specify your turbocharger at checkout so the correct silicone adaptors can be included with your kit.
