1VD-FTV Garrett Replacement Turbo suitable for Toyota LandCruiser 70 Series VDJ76 VDJ78 VDJ79

1VD-FTV Garrett Replacement Turbo suitable for Toyota LandCruiser 70 Series

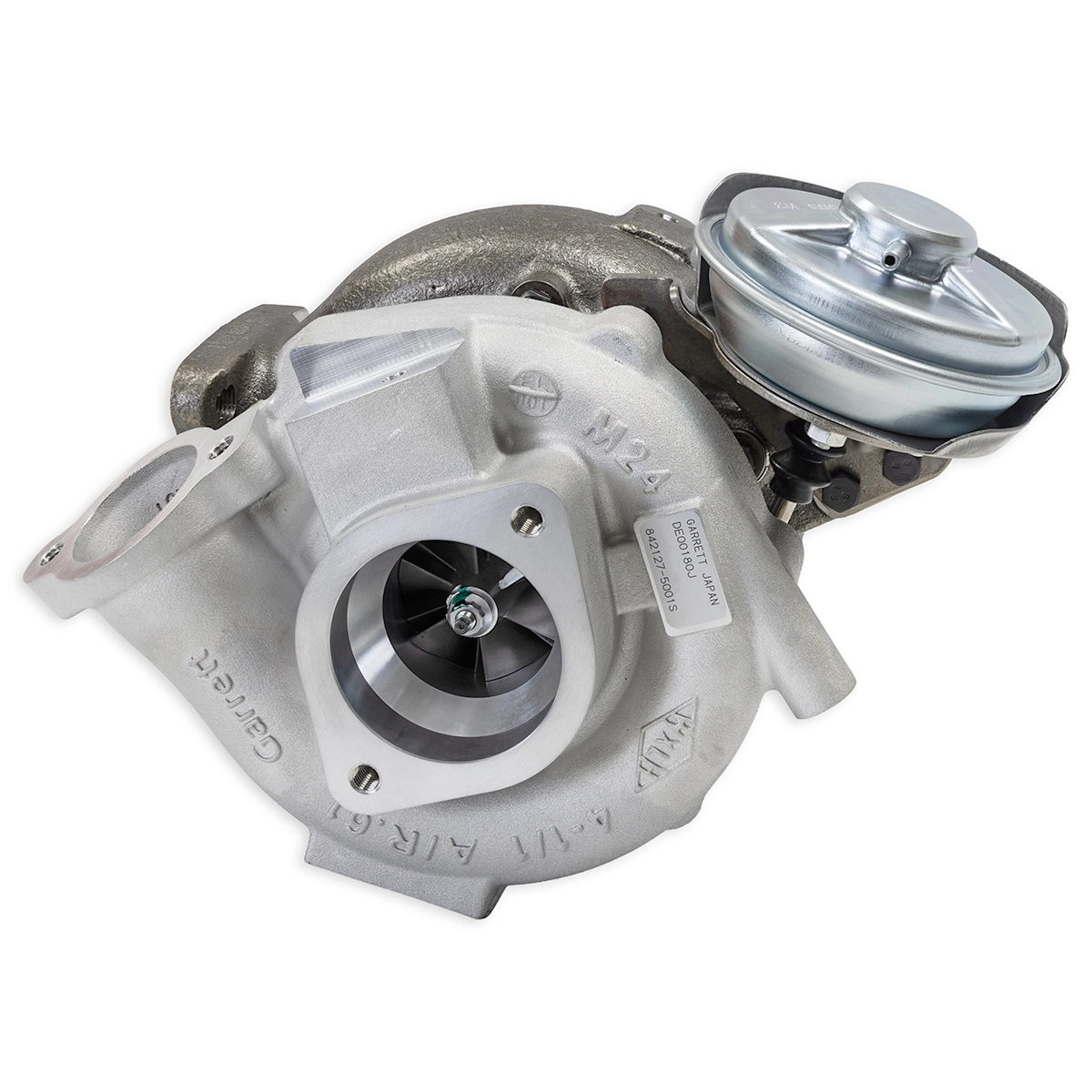

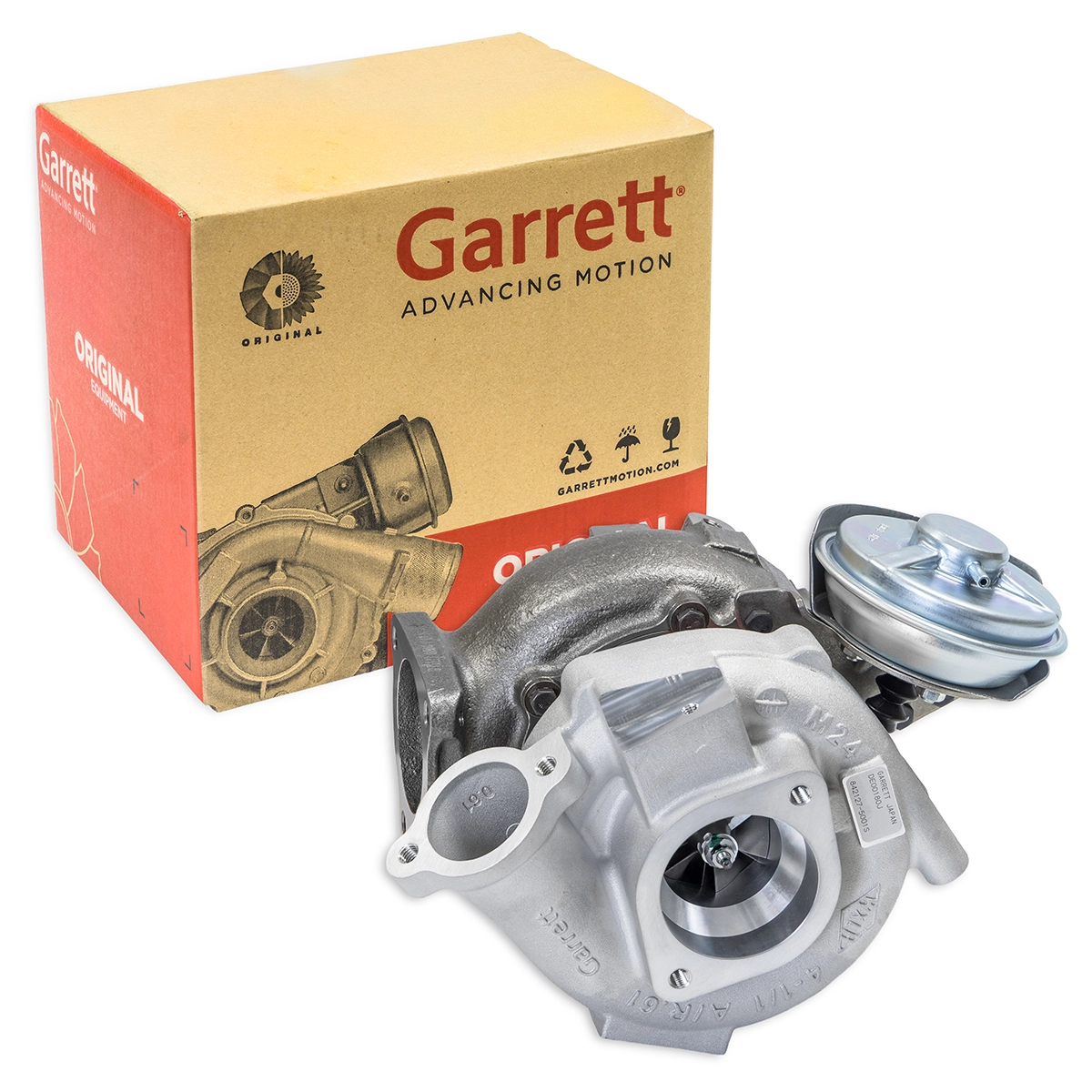

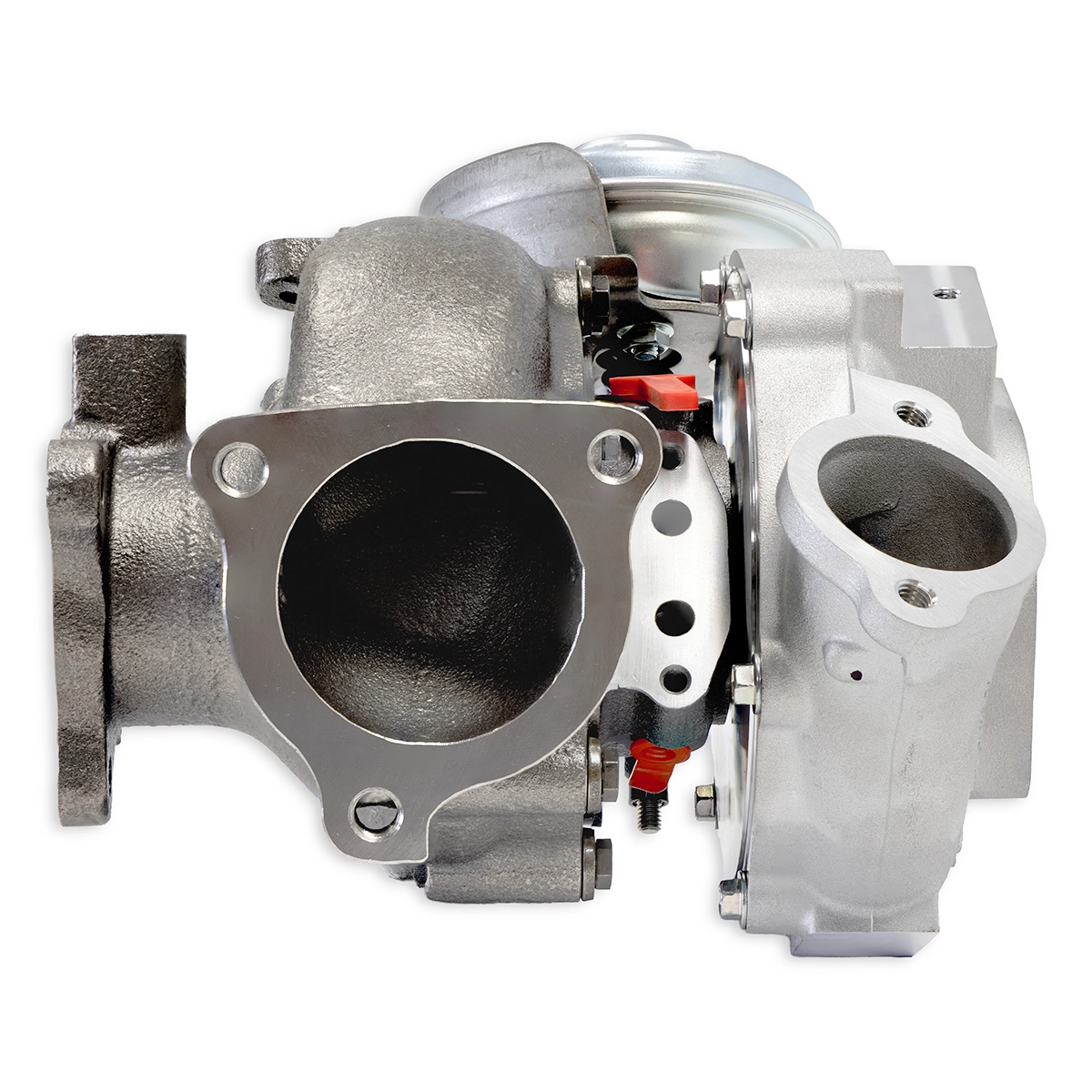

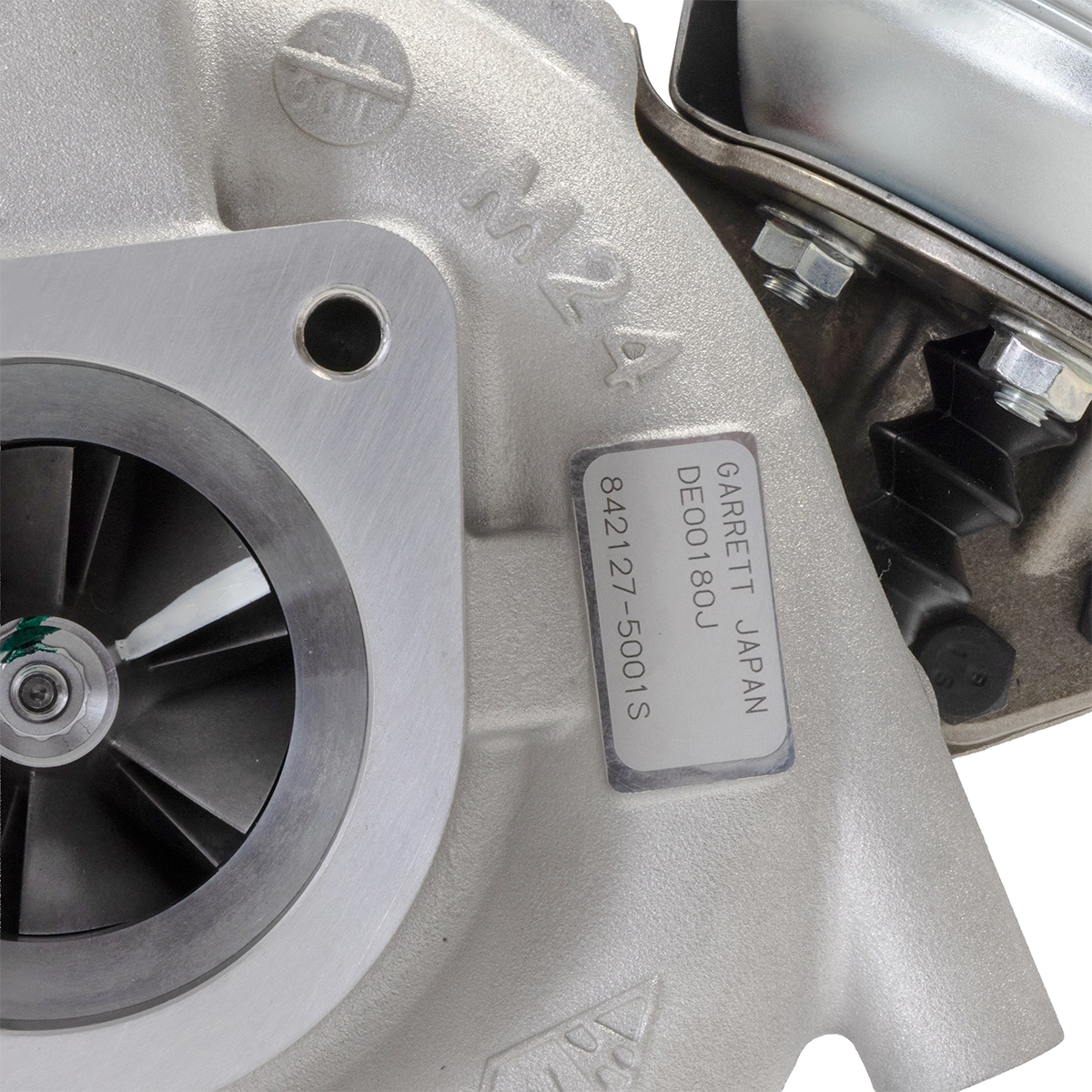

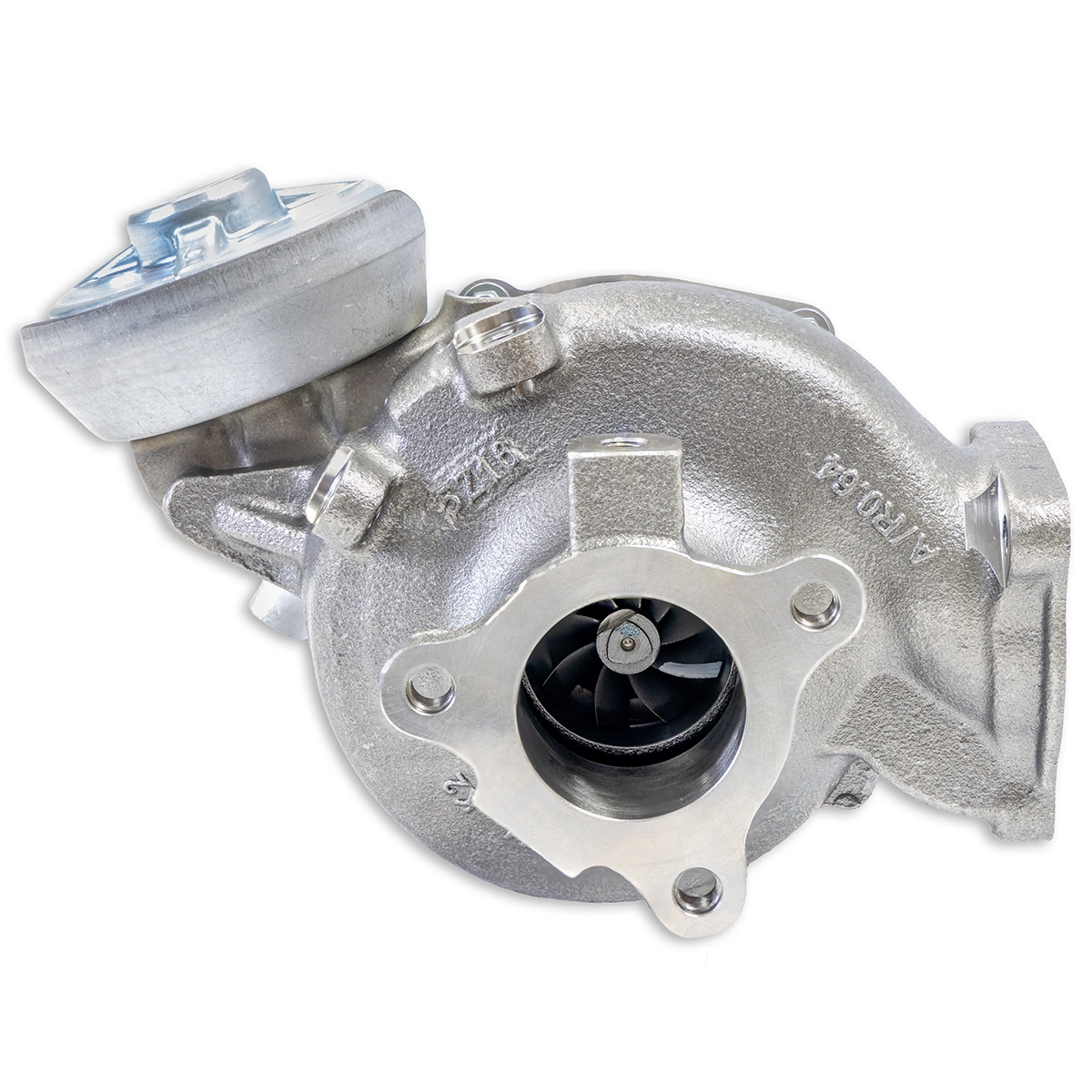

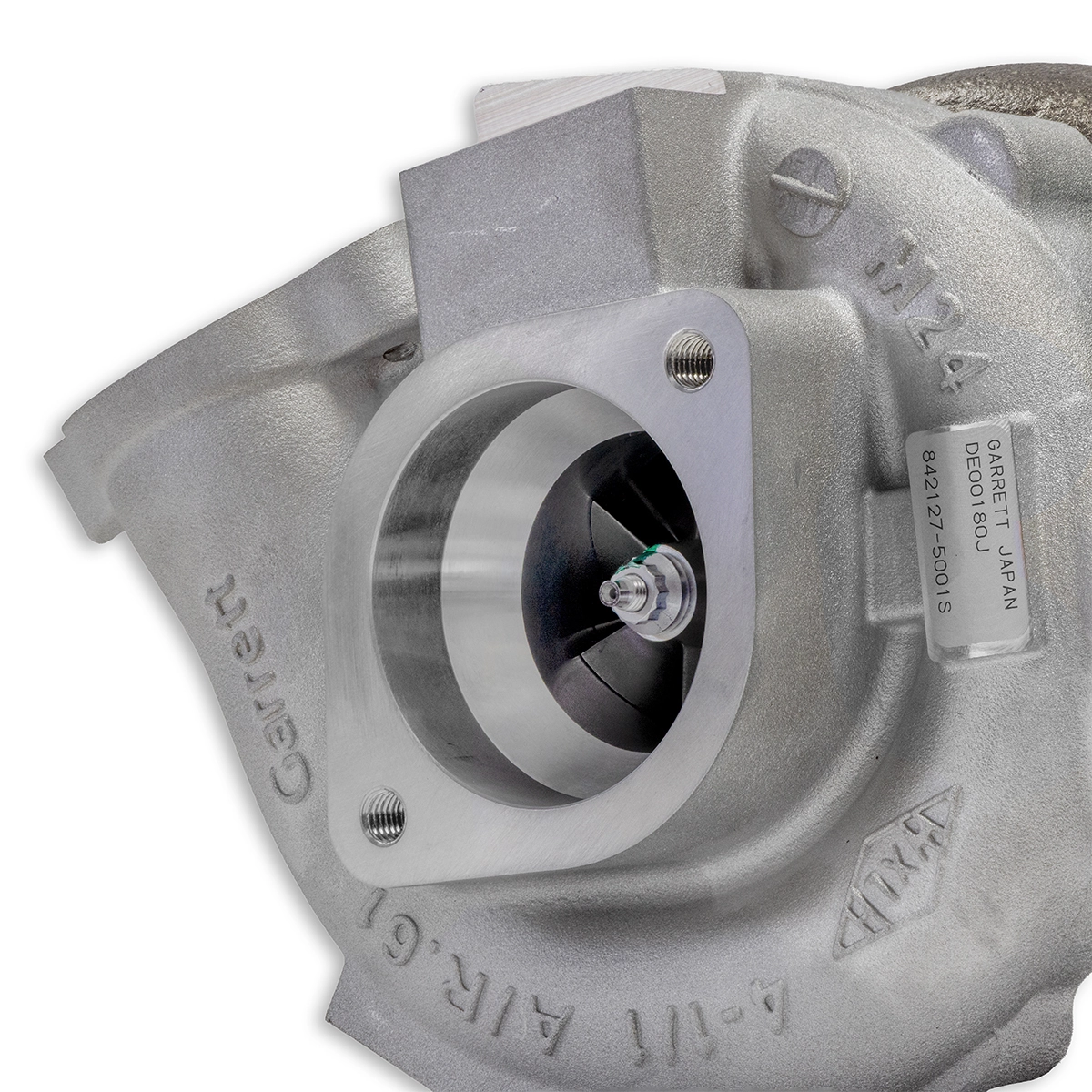

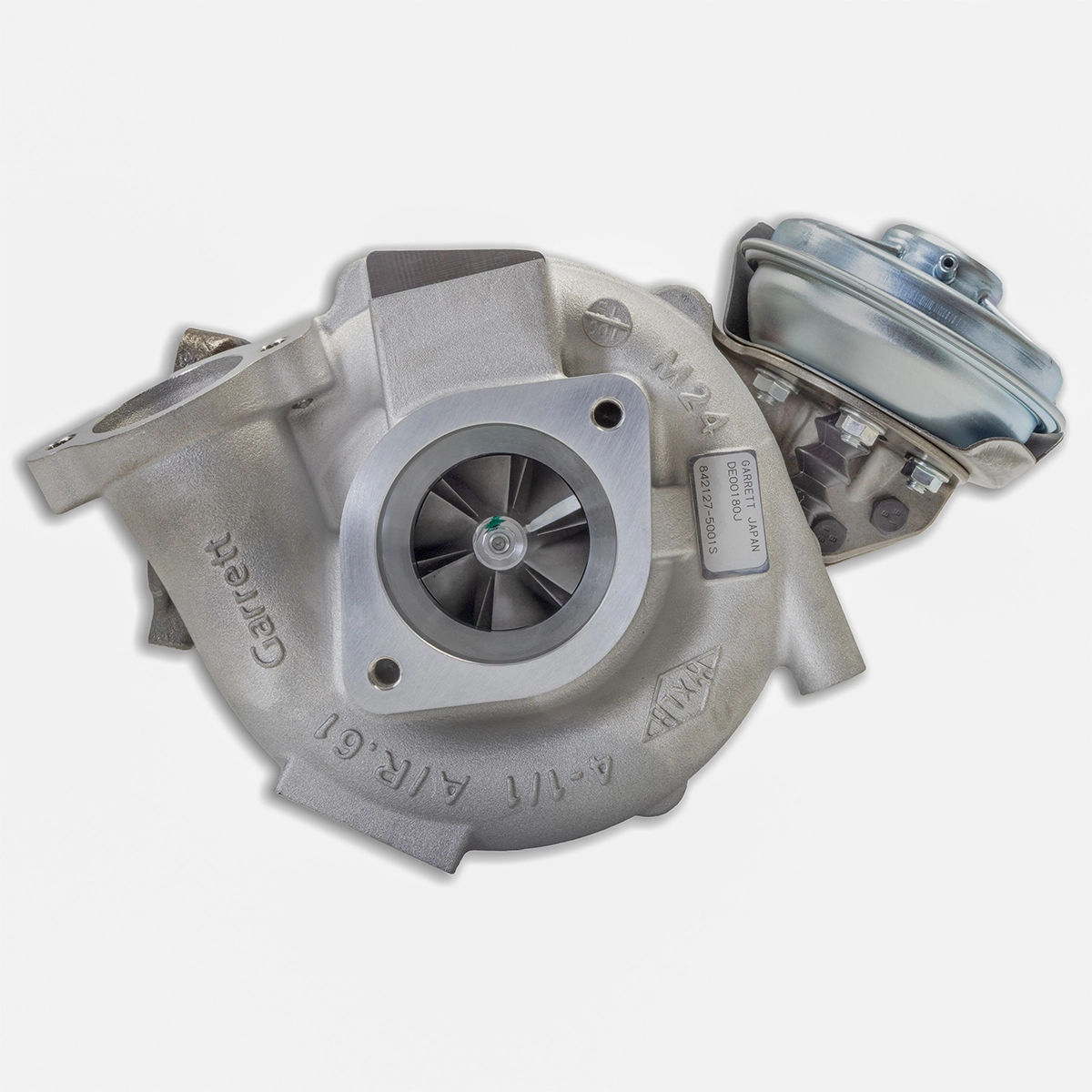

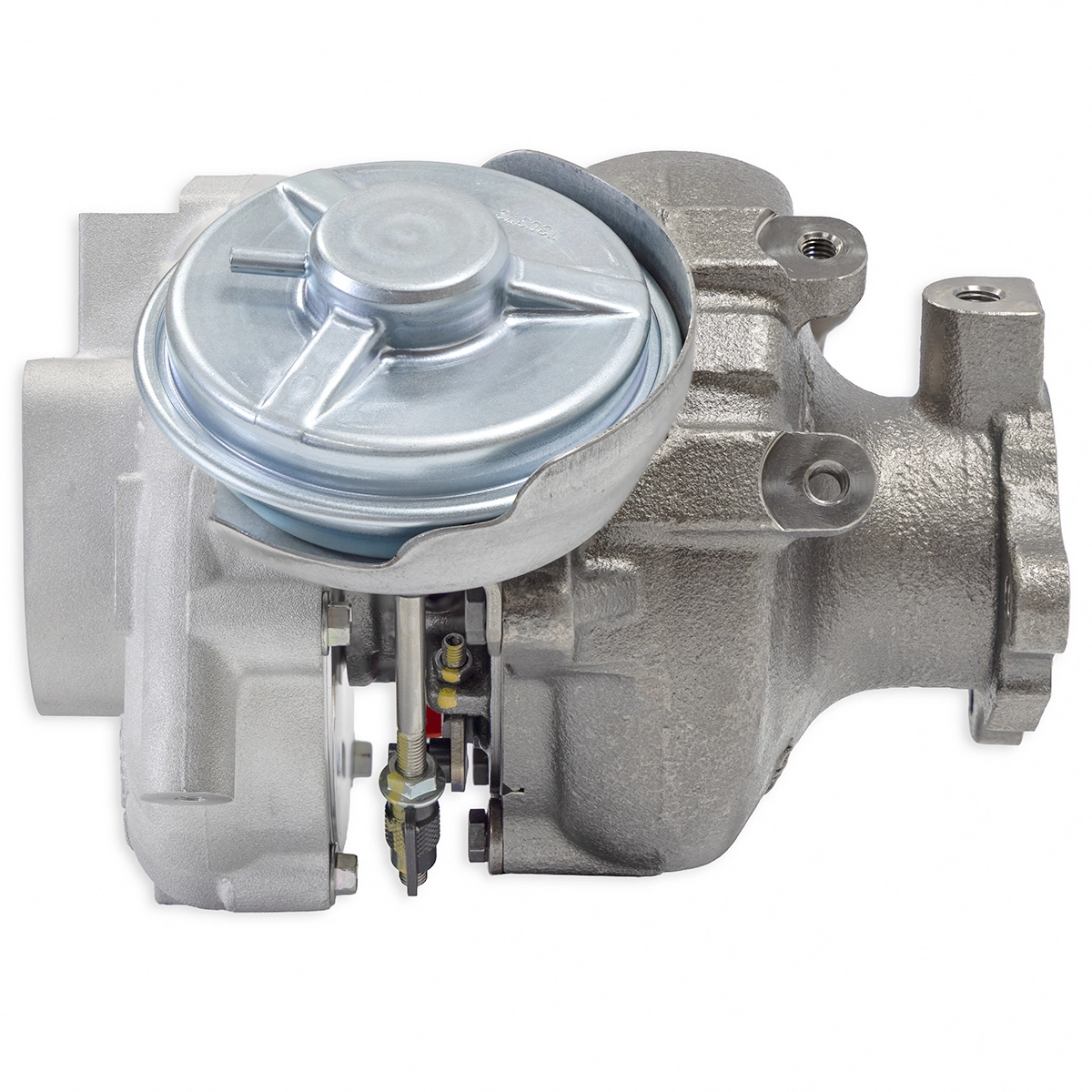

If the turbo on your 70 Series V8 has worn out, this is the one to put back in. Garrett built the factory turbo for the single-turbo 1VD-FTV, and 842127-5001S is Garrett’s current part number for it. It’s a GTA2359V, new in the Garrett box, and we have them on the shelf in Brisbane.

On the factory tune it’s a like-for-like swap, so you get factory boost and the stock 151kW. With a proper tune it’s good for 170kW, but you need the tune to get there. Keep boost at 19psi or under. That’s the safe limit for this turbo when tuning. If you’re chasing more than that, the Garrett PowerMax bolts into the same spot and suits tuned builds up to around 260hp.

🚗 Suitable for:

• Toyota LandCruiser VDJ76 wagon, 1VD-FTV 4.5L V8 turbo diesel, 2007 onwards
• Toyota LandCruiser VDJ78 troop carrier, 1VD-FTV 4.5L V8 turbo diesel, 2007 onwards
• Toyota LandCruiser VDJ79 single cab and dual cab, 1VD-FTV 4.5L V8 turbo diesel, 2007 onwards
• Pre-DPF and DPF models

📦 What’s Included:

• 1 x Garrett GTA2359V turbo, 842127-5001S, with the VNT actuator fitted

Gaskets, studs and nuts aren’t in the box. Our Turbo Fitting Kit suitable for VDJ70 Series Toyota LandCruiser has them and is in the Bought Together box below.

🔧 Before you fit it:

• It uses your factory manifold, dump pipe, oil and coolant lines and intake pipework. No fabrication.
• Replace the oil feed line if it’s rusted or kinked.
• Change the oil and filter before the first start.
• No tune needed to fit it. It runs on the factory tune.

📦 Dispatch Information:
On the shelf at our Brisbane store.

❓ FAQs:

Q: Is this the same turbo my LandCruiser came with?
A: Yes. Garrett supplied the factory turbo for the single-turbo 1VD-FTV. 842127-5001S replaces Garrett’s earlier numbers for it, 775095-5001S and 769686-5001S.

Q: How much power will it make?
A: On the factory tune, the stock 151kW. With a proper tune, 170kW, at no more than 19psi. For more than that, step up to the Garrett PowerMax.

Q: Does it suit my DPF model?
A: Yes. It suits the VDJ76, VDJ78 and VDJ79 from 2007 onwards, before and after the DPF update.

Q: Will it fit my 200 Series?
A: No. The 200 Series runs a twin-turbo 1VD-FTV. This turbo suits the single-turbo engine in the 70 Series only.
