PDI N70 Front Mount Intercooler Kit suitable for Toyota Hilux
🚗 This front mount intercooler kit for the Toyota Hilux N70 is suitable for the following year models,
- Toyota Hilux N70 KUN26 3.0L TD 4wd 2005-2015
- Toyota Hilux N70 KUN16 3.0L TD 2wd 2005-2015

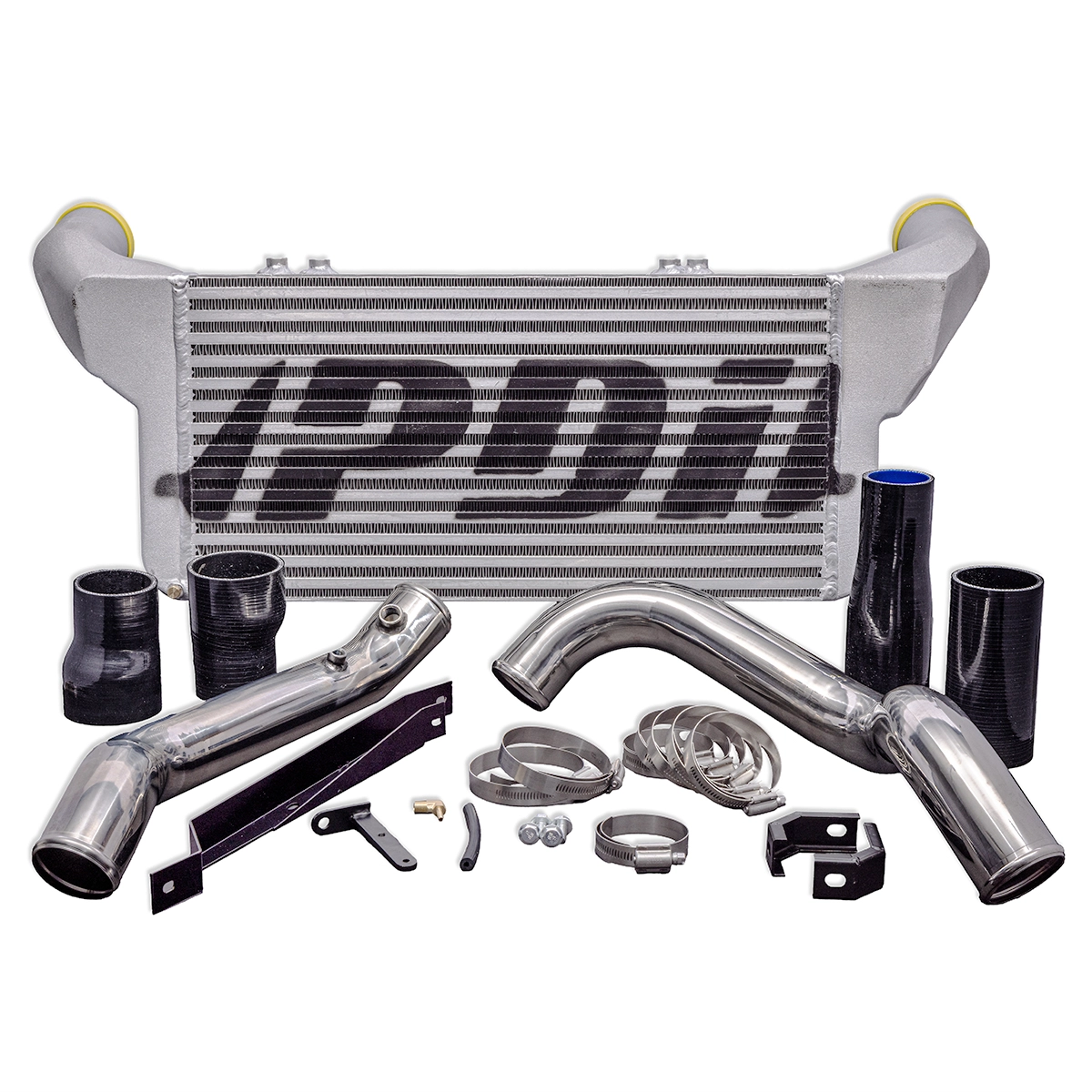

📦 What’s in the Kit,

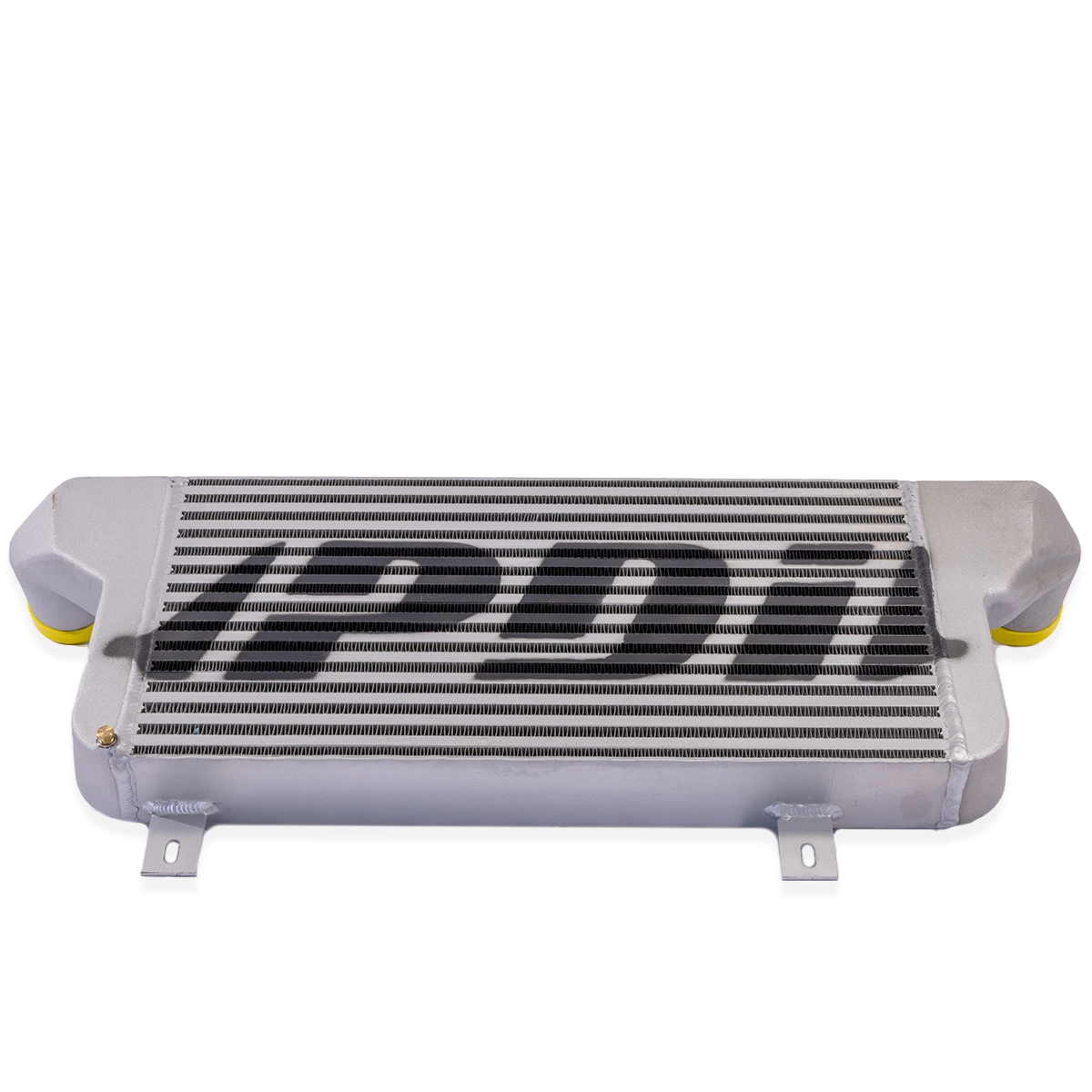

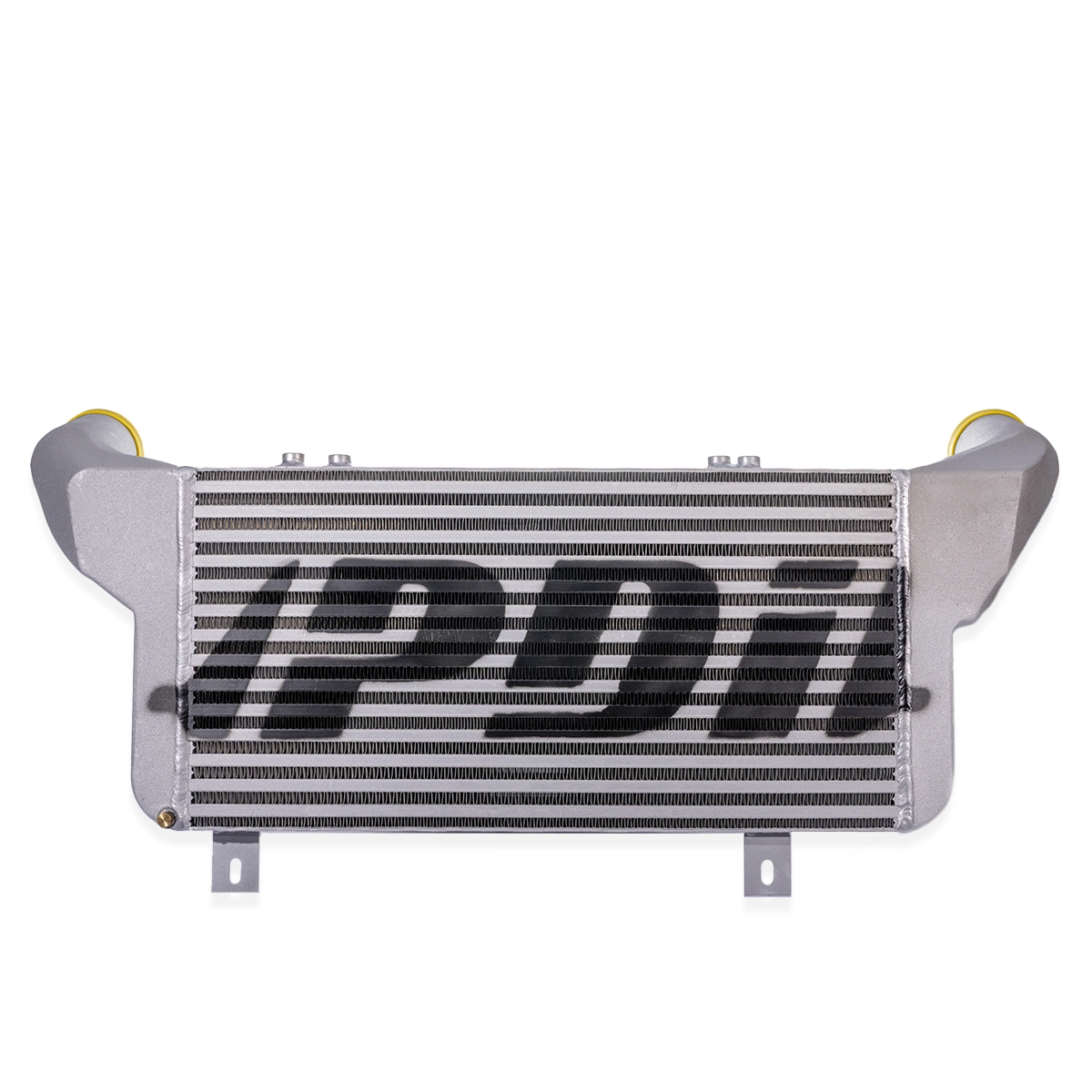

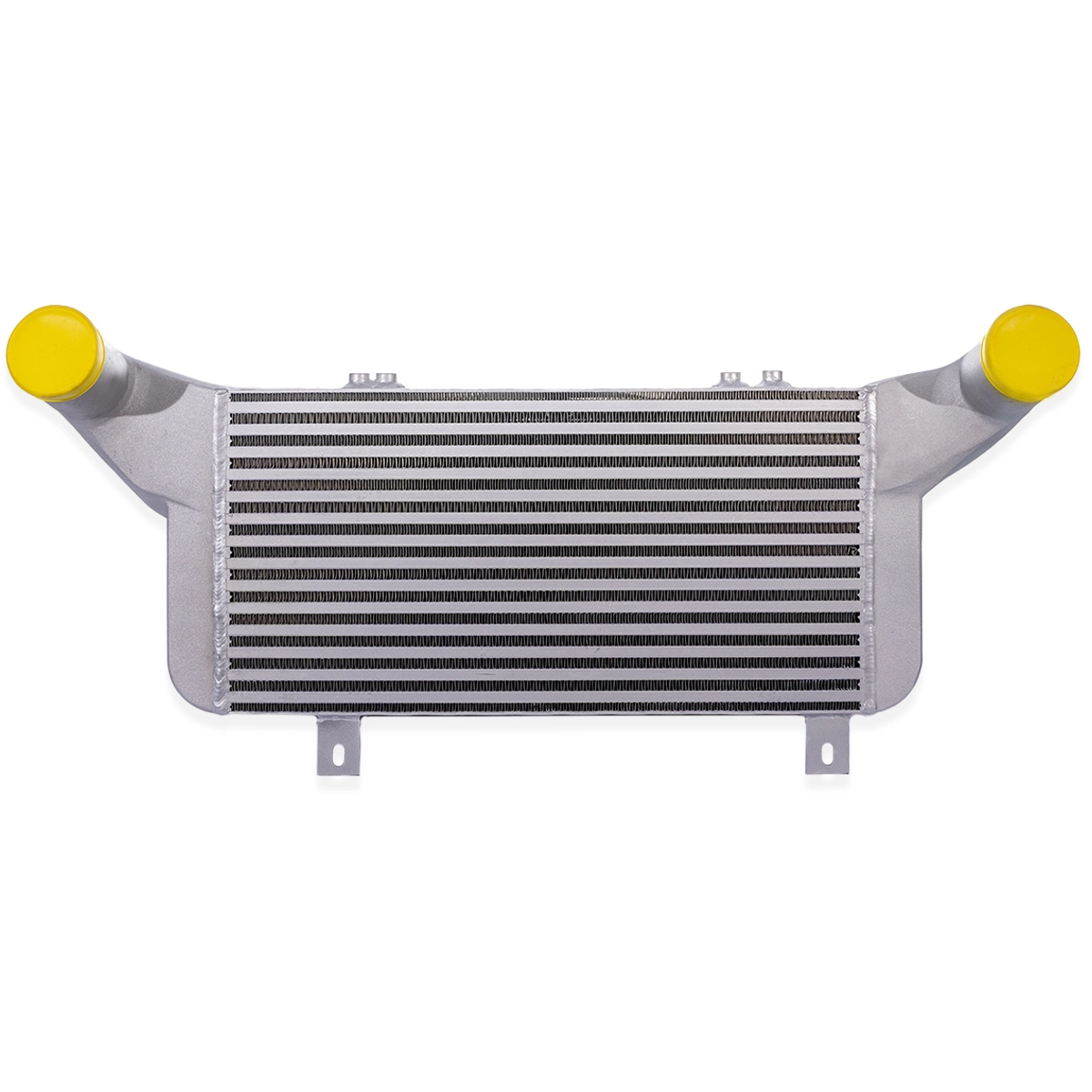

- Intercooler with 600x300x76mm core (around 20% larger than competitors designs)
- Fully cast alloy end tanks with recesses to allow it to sit back and maintain the factory look, without chopping up your grill.
- 3” Outlets into the engine bay

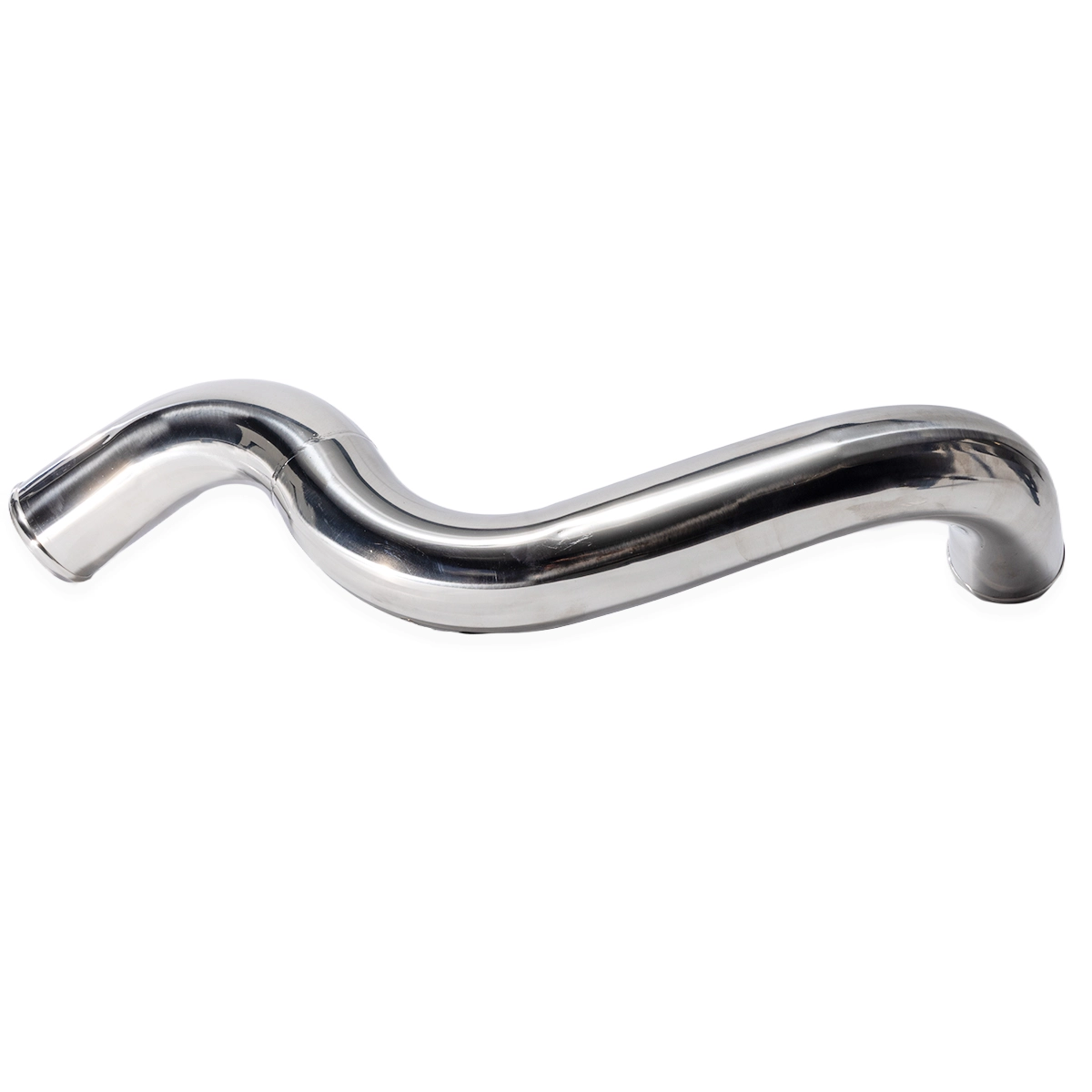

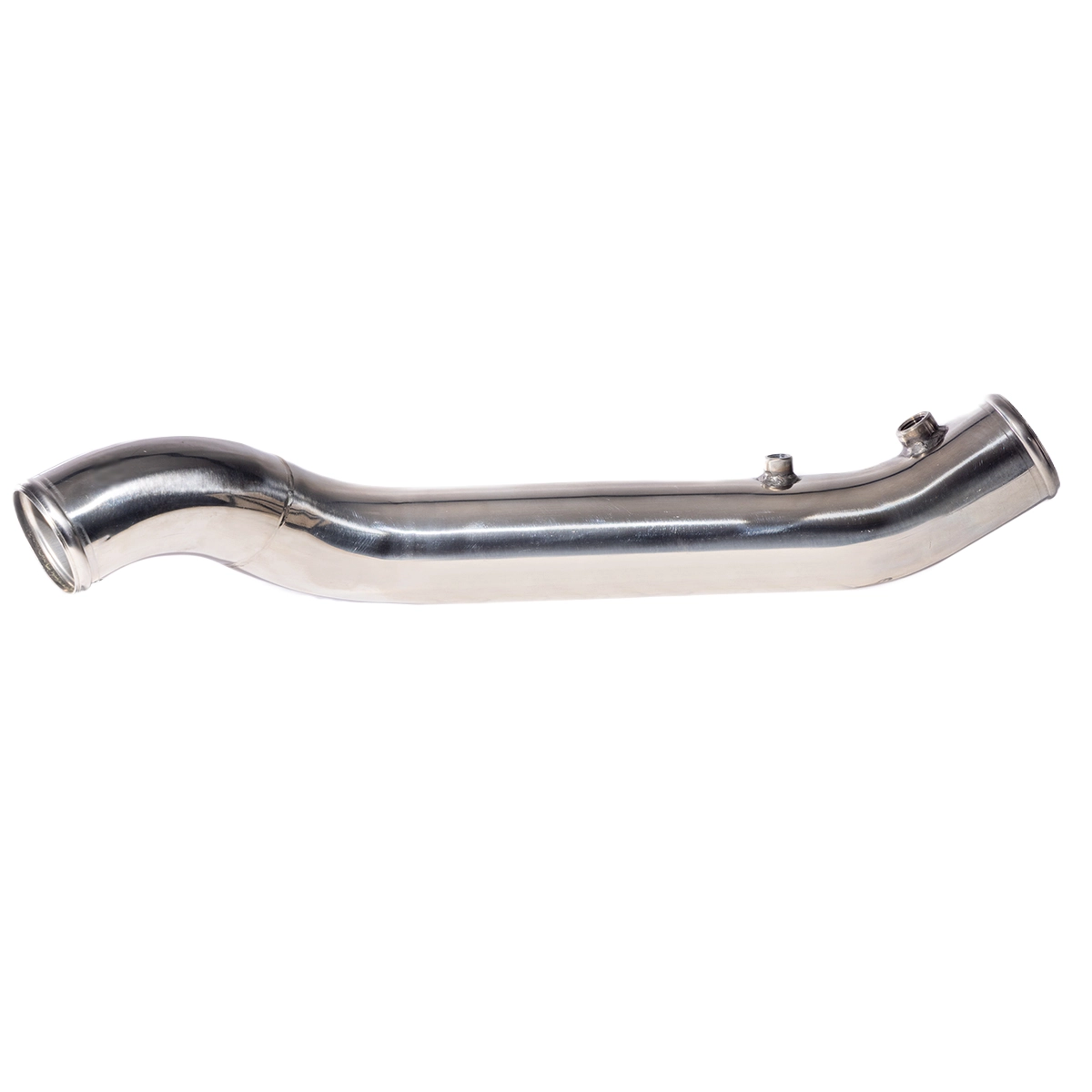

- 2.5” Stainless piping

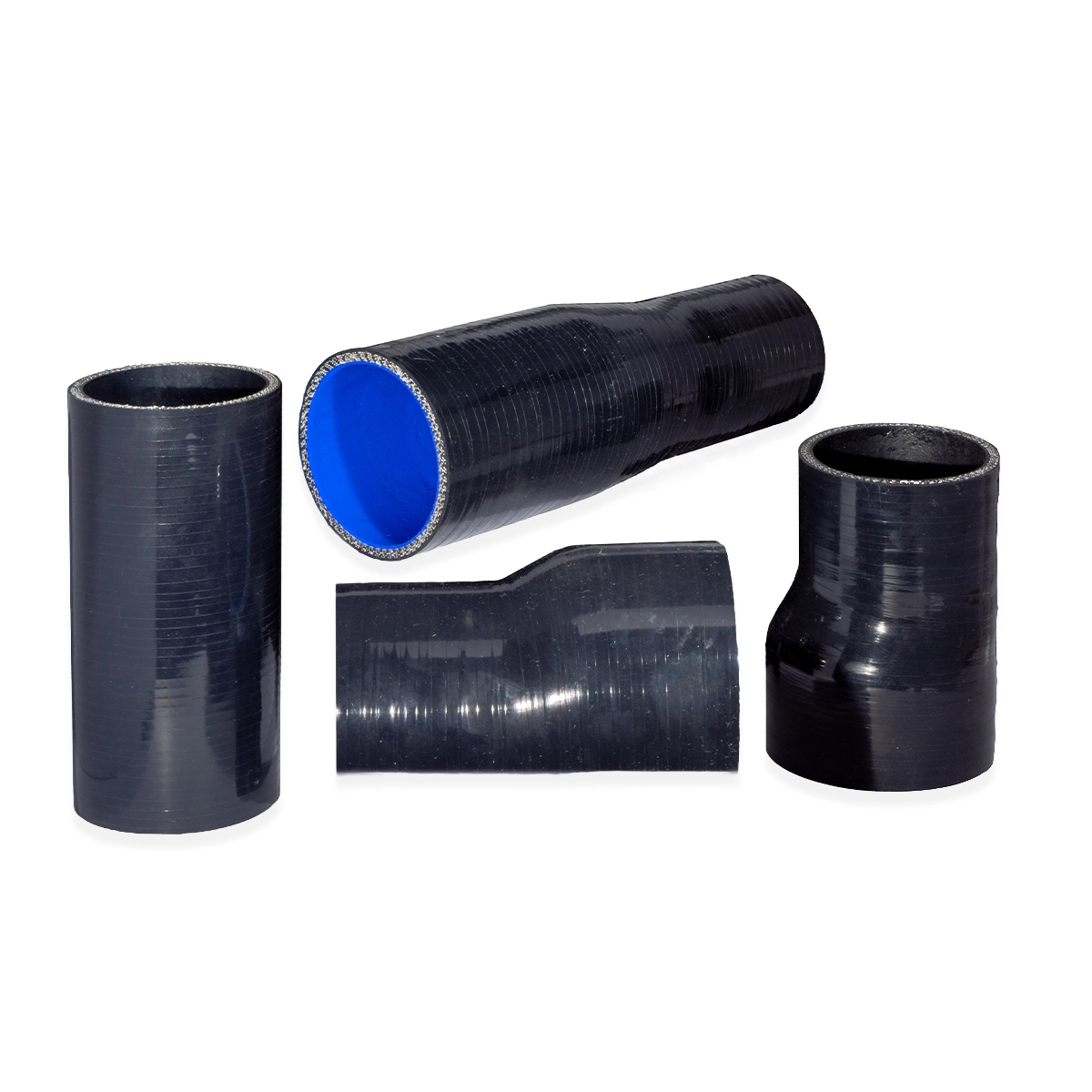

- Thick 5 ply silicon
- Mild steel brackets – zinc plated and then painted black – no stainless brackets which are prone to fatigue crack and cause rusting of body panels due to anode/cathode reaction.
- High torque hose clamps
- Screw in oil drain on bottom of intercooler.
🧩 Fitment,
- Suitable for factory turbocharger, GTurbo, low mounted wastegated 44MM and Flex turbo options.
- Will not suit a high mount turbo.
- Fits behind grill with no cutting needed.
- Suitable for winch and bull bar.
This is a very popular kit, due to its effective and efficient design and you will find lots of positive feedback on many forums from owners.
🗣️ What Customers Say,
- Matt – “Glad I got one when I did. I used to tow a car trailer with my standard intercooler and always found by the time I got to the top of a certain hill on the way to Willowbank Raceway on the Warrego Highway, it would always run out of power. With the new PDI Intercooler, it seems to just keep on pulling.”
- Josh – “Happy with the fitment. Was a huge upgrade over standard. Cheers guys!”
🤔 Why fit a front mount intercooler to your Toyota Hilux?
- From factory, the Toyota Hilux N70 KUN26 and KUN16 (4X2) comes fitted with a top mounted intercooler. This factory intercooler is very small, and suffers from severe heat soak by sitting in the engine bay.
- The benefits from upgrading to a front mount intercooler on your Hilux are immediately noticed by a reduction in EGT’s, even at a standard power level with no tune.
- When tuning your Toyota Hilux N70, the use of a front mount intercooler becomes even more crucial. As your boost pressure increases with tuning, there is more heat being put through the factory intercooler, rendering it significantly ineffective.
- By upgrading to a front mount intercooler on your Hilux, you can safely run up to 35PSI of boost while maintaining acceptable boost air tempuratures.
- Having reduced boost air temps means more power, while also keeping things nice and cool, which in turn means your engine can run at this power safer.
✅ Why choose Performance Diesel Intercoolers (PDI)?
- This is the largest core you can fit (possible due to our custom end tanks) and still retain the factory grill and any bumper or bull bar option.
- Additionally the tapering in of the headlight/grill line is matched by the end tanks to complement the design of the front of the vehicle.
- We have supplied intercoolers to highly modified 4WD where the owner is pushing the engine limits and running upwards of 60psi.
- Our cores have proved to be able to deal with the abuse an addition to amazing the customers with inlet air being so close to ambient both on the dyno and during use on the road/track/strip.
