1KD Garrett Turbocharger suitable for N70 Toyota Hilux and Toyota Prado KDJ120

1KD Garrett Turbocharger suitable for N70 Toyota Hilux and Toyota Prado KDJ120

🚗 Compatible With,

• Toyota Hilux N70 KUN16R, KUN26R 1KD Engine 03/2005 – 09/2015
• Toyota Landcrusier Prado 120 Series KDJ120 1KD Engine 03/2005 – 09/2015
• NOT COMPATIBLE WITH 150 SERIES PRADO

✨ Why Upgrade?

• The new Garrett upgrade is a game changer. It’s a direct replacement of the factory turbo, redesigned by Garrett with a billet compressor wheel and better flow/response characteristics.
• It’s high quality and also affordable, which means cheap ‘high flow’ turbochargers and reconditions are pretty much obsolete.
• This direct bolt-on replacement turbocharger is the perfect option for your 1KD engine in the KUN26 Hilux or KDJ120 Prado.

📦 What You Get,

• 1 x GTB2256VZK 1KD-FTV Garrett Turbocharger
• 1 x Electronic VNT Actuator

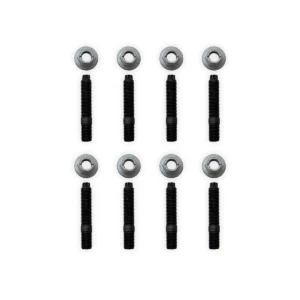

• As an optional extra, this kit can include all new turbocharger studs, nuts, gaskets, washers and turbo pre-lubricant for start up.
• It does not include new studs for the water and oil feeds.

🛠️ Fitment Details:

• Direct Bolt-in fitment. Tuning is not required after install.
• Toyota Prado: An additional wiring harness for stepper motor may be required to lengthen the factory stepper motor loom. Alternatively, the loom can be pulled off its clip and moved to fit without an extension harness.
• We provide this harness as a ‘bought together’ option.

📦 Dispatch information:

This is a popular turbocharger we keep in stock at our Brisbane store, for fast dispatch.

❓ FAQs:

Q: Is this the Garrett RedBoost or the Garrett PowerMax?
A: This is the RedBoost (909930-5001Y). Garrett sells several turbo ranges. RedBoost turbos replace the factory turbo, and Garrett builds them on the same production process as its original-equipment turbos and puts them through 500 rounds of thermal shock testing. PowerMax is Garrett’s upgrade range, built to make more power than the factory turbo. For the 1KD Hilux that’s the Garrett PowerMax Turbo Upgrade suitable for Toyota Hilux N70 KUN26.

Q: Did Garrett make the original 1KD turbo?
A: No. The factory turbo on the 1KD wasn’t a Garrett. The RedBoost is Garrett’s own replacement, designed to bolt in where the factory turbo came out.

Q: What kind of results can I expect after a tune?
A: A dyno sheet showing a Garrett Redboost fitted and tuned can be viewed below,

GARRETT 1KD

OEM Part Number references,

• 17201-30110, 1720130110, 17201-0L041, 172010L041, 17201-0L042, 172010L042, 17201-0L040, 172010L040, 17201-30180, 17201-30181, 17201-30150, 17201-30101, 17201-30100, CT12CV
