Ultima Rear Brake Shoes suitable for Toyota LandCruiser 70 Series

Ultima Rear Brake Shoes suitable for Toyota LandCruiser 70 Series

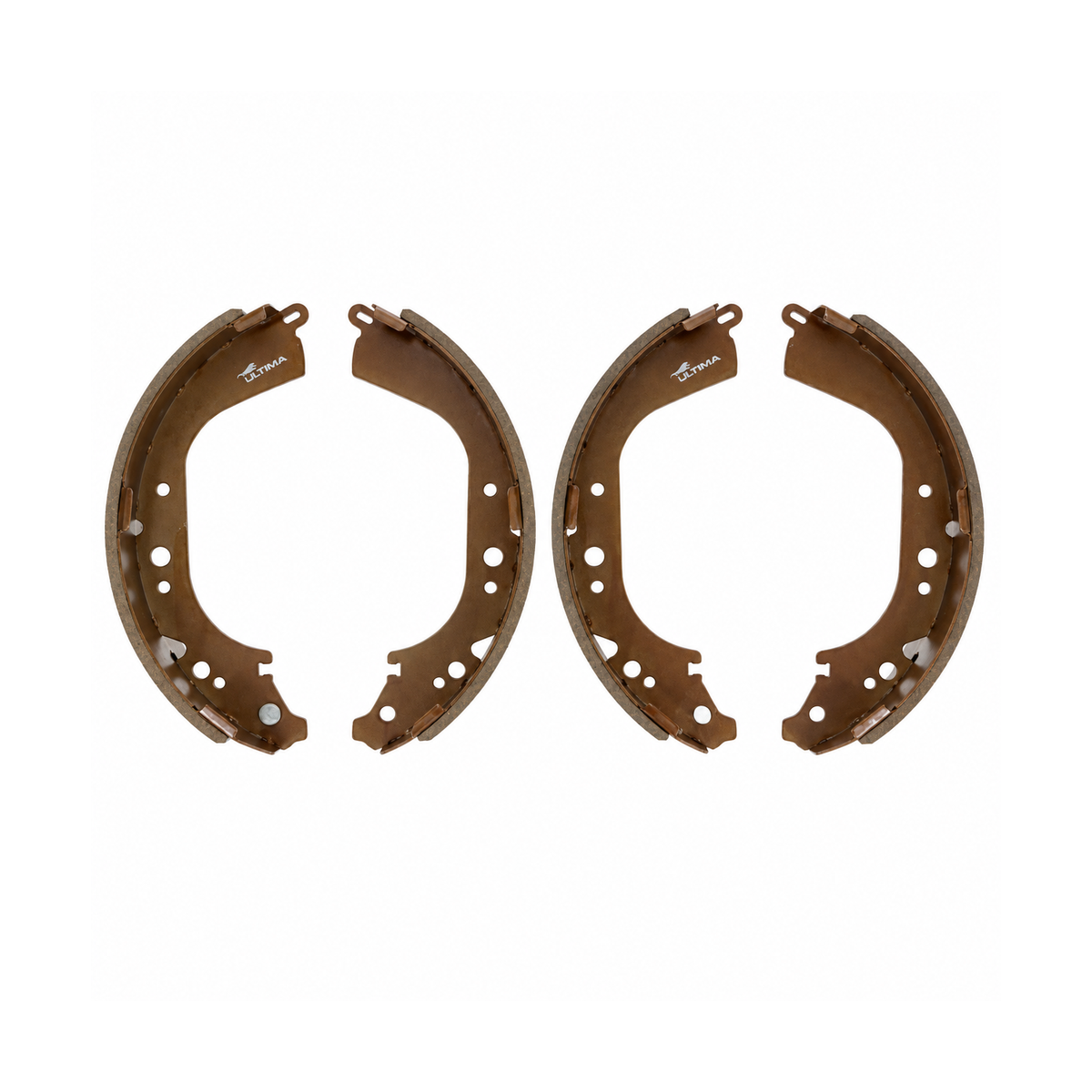

Ultima BS1414 rear brake shoe set suitable for the rear drum Toyota LandCruiser 70 Series, from the 1984 BJ and FJ 70s through the 1HZ, 1FZ-FE and 1HD-FTE 75, 78 and 79 Series to the V8 VDJ76, VDJ78 and VDJ79 with rear drums. The same 295mm shoe was used on the 40 and 60 Series before them.

The set does one axle, four shoes. Ultima’s Advanced Ceramic formula runs cleaner than the old organic lining and does not glaze when the drums get hot behind a loaded tray. If the drums are scored or past their wear limit, we list the AAP1868 rear drum and the JB2797 wheel cylinder for the same models.

🚗 Suitable for:

• Toyota LandCruiser 70 Series VDJ76, VDJ78 and VDJ79 1VD-FTV, 2007 on (rear drum models)
• Toyota LandCruiser 70 Series HDJ78 and HDJ79 1HD-FTE, 2001 to 2007
• Toyota LandCruiser 70 Series HZJ78 and HZJ79 1HZ, 1999 to 2007
• Toyota LandCruiser 70 Series FZJ78 1FZ-FE, 1999 to 2001, and FZJ79, 1999 to 2007
• Toyota LandCruiser 70 Series HZJ73 and HZJ75 1HZ, 1990 to 1999
• Toyota LandCruiser 70 Series FZJ75 1FZ-FE, 1992 to 1999
• Toyota LandCruiser 70 Series BJ70, BJ73, BJ75, FJ70, FJ73 and FJ75, 1984 to 1992
• Toyota LandCruiser 60 Series FJ60, FJ61, FJ62, HJ60 and HJ61, 1980 to 1990
• Toyota LandCruiser 40 Series BJ40, BJ42, FJ40, FJ45, HJ45 and HJ47, 1965 to 1984

📦 What’s Included:

• 1x Ultima BS1414 rear brake shoe set (4 shoes, one axle)

🔧 Fitment Details:

• Suits the 295mm rear drum
• Advanced Ceramic formula lining
• Rear drum brake models only. The 76 wagon and later 78 and 79 utes with rear discs take the drum-in-hat hand brake shoes instead
• Adjust the shoes up after fitting and bed them in gently for the first 100km
• Springs, adjusters and wheel cylinders are not included

⚙️ Why Choose Ultima:

• Lining bonded and riveted to the shoe
• Made to the original shoe width and arc

📦 Dispatch Information:

• Contact us for current stock and lead times.

❓ FAQs:

Q: How do I know if my 70 Series has rear drums?
A: Look behind the rear wheel. A drum is a closed steel bowl with no caliper. If you can see a flat rotor with a caliper over it, you have rear discs and need the AAP794 rear rotor and the hand brake shoes instead.

Q: Does the set come with springs and adjusters?
A: No. It is the four shoes only. Reuse your hardware if it is in good shape, or ask us about the adjuster kit.

Q: Not sure it suits your LandCruiser?
A: Send us your VIN and we’ll check it before you order.
