Ultima Rear Wheel Cylinder suitable for Toyota LandCruiser 70 Series

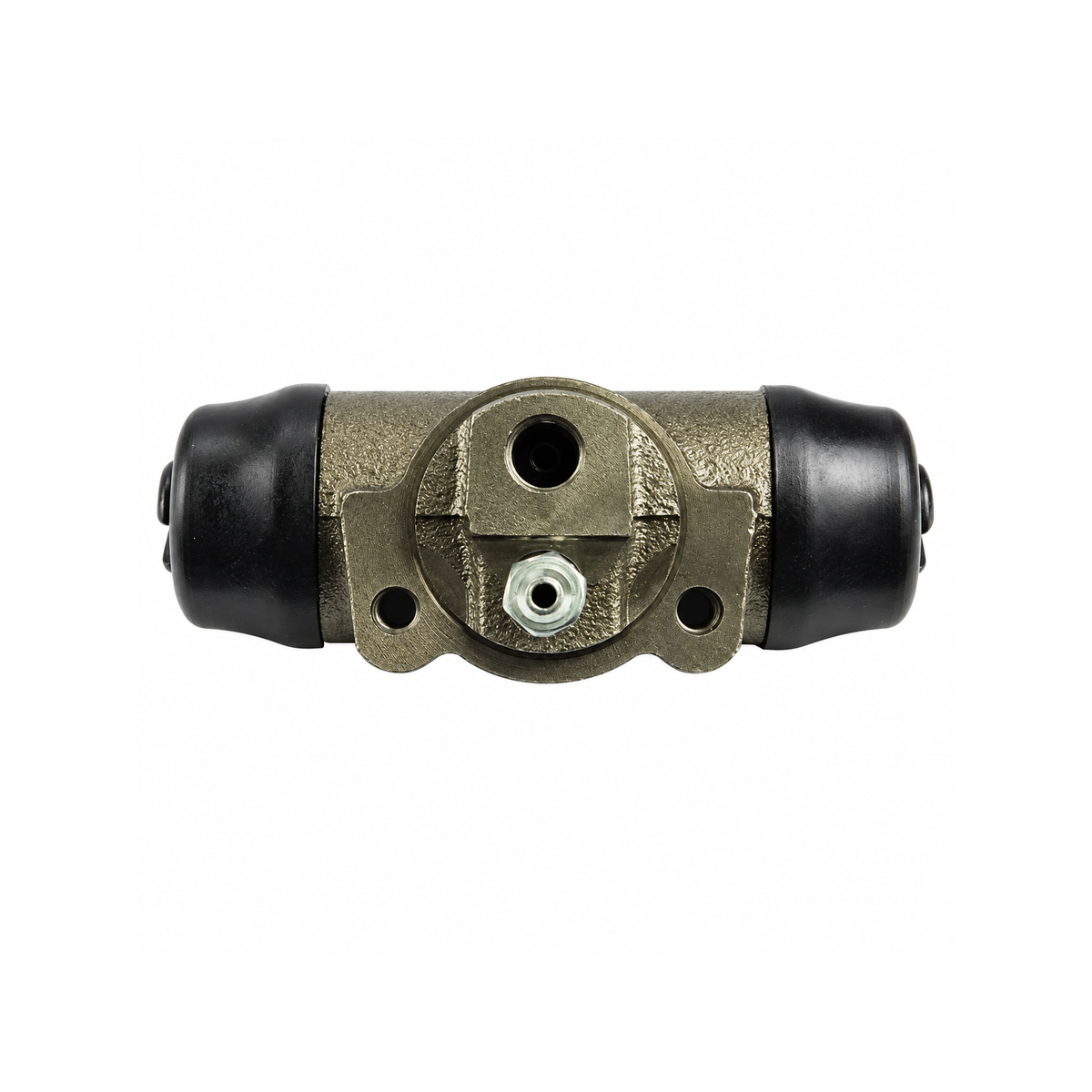

Ultima JB2797 rear wheel cylinder suitable for the rear drum Toyota LandCruiser 70 Series, from the HZJ73, HZJ75 and FZJ75 through the HZJ78, HZJ79, FZJ79, HDJ78 and HDJ79 to the V8 VDJ76, VDJ78 and VDJ79 built up to 09/2012. It has a 25.4mm (1 inch) bore and the same cylinder fits the left and the right side.
Sold each. Order two to do the axle. A weeping wheel cylinder shows up as a wet patch on the inside of the drum, a brake pedal that slowly sinks, or rear shoes that are soaked and glazed. It is a cheap part, so do both sides while the drums are off.
🚗 Suitable for:
- Toyota LandCruiser 70 Series VDJ76, VDJ78 and VDJ79 1VD-FTV, 2007 on (rear drum models)
- Toyota LandCruiser 70 Series HDJ78 and HDJ79 1HD-FTE, 2001 to 2007
- Toyota LandCruiser 70 Series HZJ78 and HZJ79 1HZ, 1999 to 2007
- Toyota LandCruiser 70 Series FZJ78 1FZ-FE, 1999 to 2001, and FZJ79, 1999 to 2007
- Toyota LandCruiser 70 Series HZJ73 and HZJ75 1HZ, 1990 to 1999
- Toyota LandCruiser 70 Series FZJ75 1FZ-FE, 1992 to 1999
📦 What’s Included:
- 1x Ultima JB2797 rear wheel cylinder
🔧 Fitment Details:
- 25.4mm (1 inch) bore
- Fits left and right. Order two for the axle
- Rear drum brake models only
- Suits the V8 70 Series built up to 09/2012
- Bleed the rear brakes after fitting and adjust the shoes up
⚙️ Why Choose Ultima:
- New cylinder, not a resleeve
- Made to the original bore and mounting
📦 Dispatch Information:
- Contact us for current stock and lead times.
❓ FAQs:
Q: How do I know if my 70 Series has rear drums?
A: Look behind the rear wheel. A drum is a closed steel bowl with no caliper. If you can see a flat rotor with a caliper over it, you have rear discs and need the AAP794 rear rotor and the hand brake shoes instead.
Q: Is it left or right hand?
A: Both. The same cylinder fits either side, so order two for the axle.
Q: Not sure it suits your LandCruiser?
A: Send us your VIN and we’ll check it before you order.
