NPC 1300NM Heavy Duty Clutch Kit suitable for Toyota LandCruiser V8 VDJ76 VDJ78 VDJ79 70 Series 79 Series

NPC 1300NM Heavy Duty Clutch Kit suitable for Toyota LandCruiser V8 VDJ76 VDJ78 VDJ79 70 Series 79 Series

The NPC 1300NM Heavy Duty Clutch Kit, NPC part number NPC7751-1D, is the most popular clutch upgrade we sell for the 1VD-FTV V8 LandCruiser 70 Series. The factory clutch only holds what the engine makes from the factory, and it’s well known for slipping once you start towing, fitting upgrades or tuning. This kit comes with a billet flywheel and suits a tune, exhaust, injector upgrade and turbo upgrade.

Running 35-inch tyres, carrying a lot of weight, towing heavy or chasing big power? Step up to the NPC 1600NM Super Heavy Duty Clutch Kit, which also comes with a new slave cylinder.

🚗 Suitable for:

• Toyota LandCruiser VDJ79 4.5L 1VD-FTV V8, 2007-2025
• Toyota LandCruiser VDJ78 4.5L 1VD-FTV V8, 2007-2025
• Toyota LandCruiser VDJ76 4.5L 1VD-FTV V8, 2007-2025

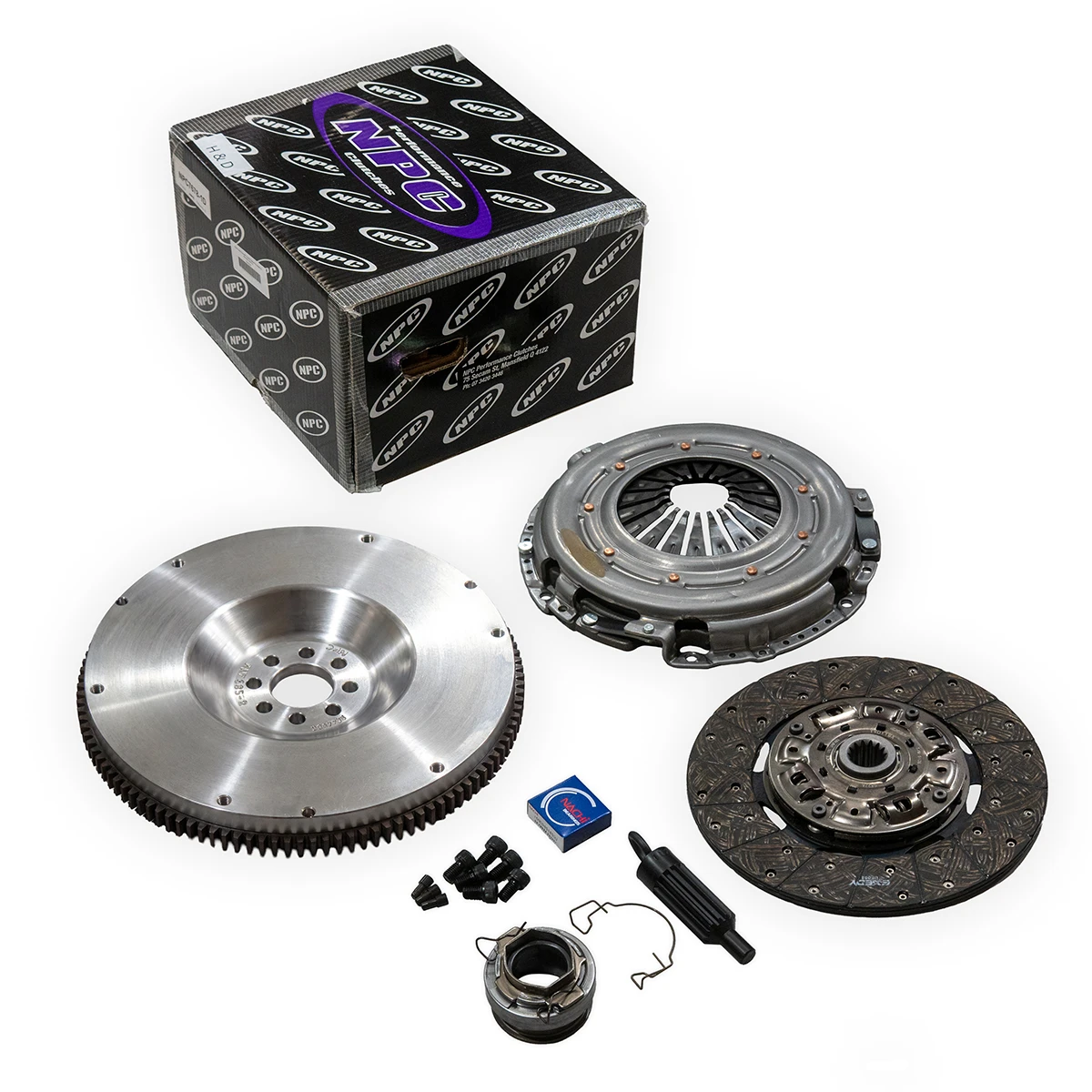

📦 What’s Included:

• NPC 1300NM clutch plate and pressure plate
• Billet flywheel
• Throw-out bearing
• Spigot bearing
• Pressure plate bolts
• Clutch alignment tool

A slave cylinder is not included. With the gearbox out, it’s a good time to fit a new clutch slave cylinder and a braided clutch line for a firmer pedal.

🔧 Fitment Details:

• This kit only suits the VDJ76, VDJ78 and VDJ79 with the 1VD-FTV. If you’re not sure it fits, contact us and we’ll check for you.
• A billet flywheel is included, so your factory flywheel doesn’t need resurfacing.
• The 1VD clutch is not self-adjusting. Adjust the pedal and pushrod at fitment, then check them again at around 500km. Don’t over-adjust the pedal. The pushrod needs some free play, or the release bearing will sit loaded against the pressure plate.
• Download the NPC Fitting Sheet 3A for the VDJ 1300NM kit (PDF) for the full fitting steps.
• Torque the flywheel bolts to 182Nm and the M10 x 16 pressure plate bolts evenly to 77Nm. Use Loctite sparingly on both.
• Fitting takes around 5 to 6 hours. Side steps, such as ARB side steps, can add time if they get in the way of the gearbox crossmember mounts.
• Bed the clutch in with at least 1000km of normal driving before any hard use. Lots of gear changes and town driving is ideal, because it’s the engagement that beds it in.

⚙️ Why Choose NPC:

• NPC raise the clamp pressure 20 to 45% above standard and pair it with a full-faced premium disc, for smooth engagement and, in most cases, no extra pedal effort.
• NPC make their own flywheels and modify Exedy clutch components from other applications to suit the LandCruiser. That’s how they get a high torque rating and a comfortable pedal at the same time.
• A remapped VDJ70 Series with a 3″ turbo-back exhaust and an NPC clutch commonly makes 200HP to 240HP and 600NM to 700NM at the rear wheels. The 1300 comfortably handles more than that.
• Every bearing in NPC’s kits is a Japanese brand bearing.
• NPC Performance warrants most of their clutches for 1 year or 20,000km.

📦 Dispatch Information:

In stock in Brisbane. Order before midday for same-day dispatch.

❓ FAQs:

Q: NPC 1300 or 1600 for a 79 Series?
A: The 1300 suits most tuned touring 79s. Go the NPC 1600NM if you’re running 35s, carrying a lot of weight, towing heavy or chasing big power.

Q: When should I replace the factory clutch?
A: Most owners do it when they tune the car, start towing or touring, fit bigger wheels and tyres, or add a lift kit and accessories. Do it before or with the tune, not after.

Q: Is an NPC clutch just a reboxed Exedy?
A: No. NPC make their own flywheels and modify Exedy components from other applications to suit the LandCruiser, which gives a higher torque rating with a comfortable pedal.
