WALBRO 460 LPH FUEL PUMP F90000267

$249.99

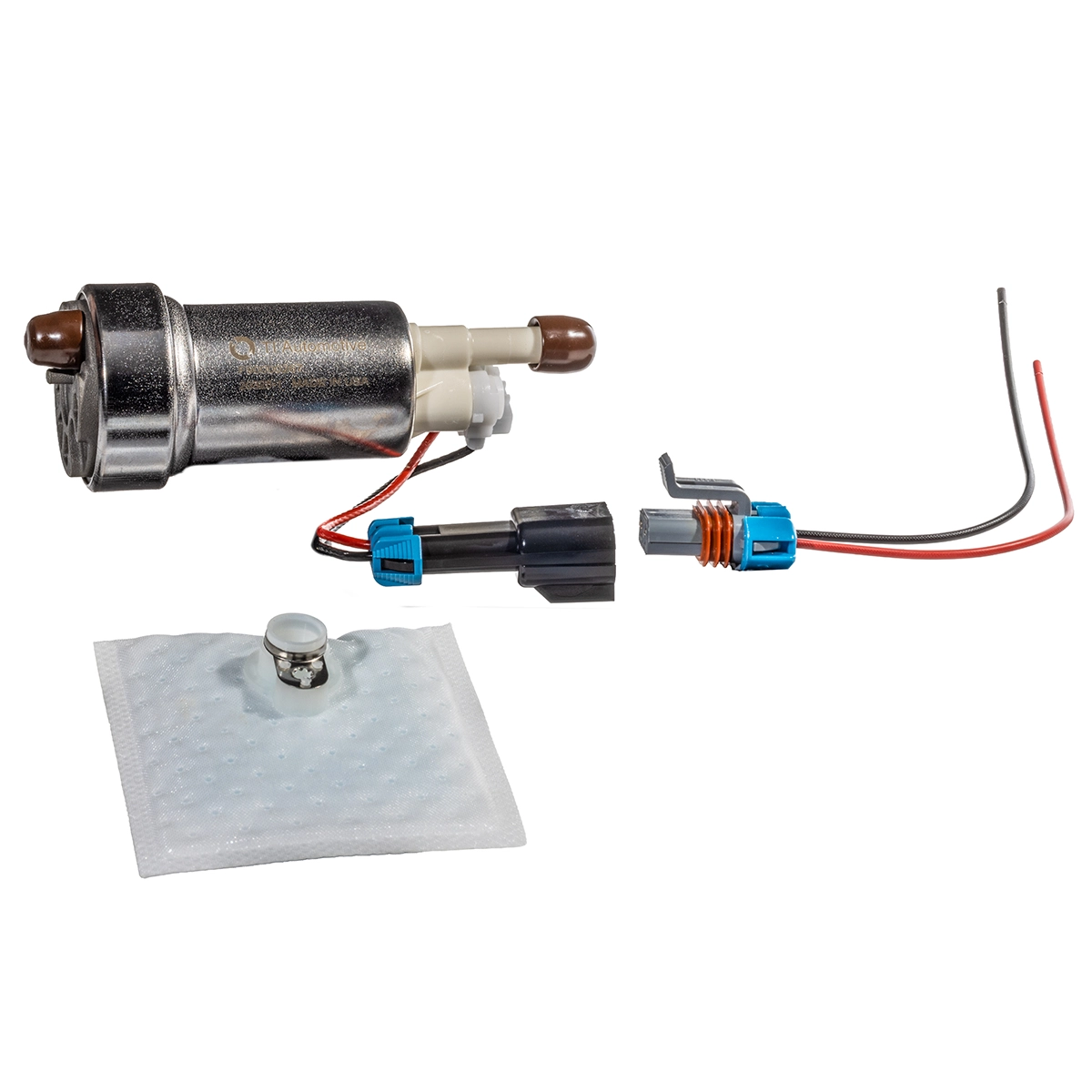

GENUINE WALBRO 460 LPH E85 READY IN TANK FUEL PUMP WITH FITTING KIT. THIS PUMP IS PERFECT FOR 1FZ-FE TURBOCHARGED ENGINES. IT IS A DIRECT REPLACEMENT FOR THE FACTORY IN-TANK PUMP. ALSO KNOWN AS A WALBRO 450. SUITS TOYOTA FZJ80/105, FORD BA, BF, FG, FG X FALCON & XR6 TURBO, HOLDEN VT, VX, VY, VZ, VE,VF COMMODORE, SUBARU WRX AND MANY OTHERS. PART NUMBER F90000267

SKU: F90000267 Category:

Description

COMMON NAMES: WALBRO 450, TIA485-2, GST-450, WALBRO 465, 400E
FLOW RATE: 415LPH @ 13.5V (3 BAR)
E85 COMPATIBLE: YES
MAX CURRENT DRAW: 22A (15A AVERAGE)
BODY DIAMETER: 39MM / 50MM
LENGTH: 131MM
FUEL OUTLET DIAMETER: 11MM OD (10.8 – 9.1MM)
PRESSURE RELIEF: 87PSI (SEE OTHER ITEMS FOR 112PSI HIGH PRESSURE VERSION – ONLY NEEDED AT 30+PSI BOOST)
CHECK VALVE: YES (INBUILT)

FOR DECADES, WALBRO AUTOMOTIVE FUEL PUMPS HAVE BEEN MANUFACTURED BY TI AUTOMOTIVE. AS OF LATE 2019, THESE SAME PUMPS ARE NOW BRANDED WITH THE TI AUTOMOTIVE NAME, CARRYING A LEGACY FOR MORE THAN 60 YEARS OF MANUFACTURING THE MOST POPULAR DROP-IN FUEL PUMPS, WITH THE SAME PERFORMANCE, QUALITY AND RELIABILITY THAT YOU HAVE COME TO KNOW AND EXPECT.

TI AUTOMOTIVE PRODUCTS ARE MANUFACTURED IN THEIR PLANT IN CARO, MICHIGAN IN THE USA. WE SOURCE OUR PUMPS FROM A REGISTERED AUSTRALIAN WHOLESALER, DELIVERED THEM WITH HOLOGRAMS FOR AUTHENTICITY AND SUPPLY THEM WITH GENUINE FITTING KITS ONLY.

Brand

Raceworks

The exciting new Raceworks range of high-performance automotive components has arrived. Components include high-performance air, fuel and fluid management components ranging from fuel pumps, silicone hoses, fuel rails, aluminium fittings, fuel injectors and sensors, to connectors and supporting hardware. Raceworks products have been manufactured from high-quality materials to ensure the highest specifications and industry standards are surpassed. All products come with an Industry-leading 2 year warranty. An E85 fuel compatible range of fuel pumps is a distinguishable feature of the Raceworks range, with a 340 LPH and a 265 LPH version available. Several other high flow in-tank and external fuel pumps are also available. Other products include Billet fuel pump brackets, oil catch tanks, surge tanks, fuel cells and a range of high quality, high flow fuel injectors. Raceworks carries a range of performance fuel rails for many popular vehicles and to suit a variety of performance engine conversions which include Holden V8 304–355, LS1, LS2, LS3, Nissan RB25, RB26, RB30, SR20, Toyota 2JZ, Subaru EJ20T, Mazda 13B and bare metal extrusions. Raceworks fuel rails are all manufactured from 6061 T6 Aluminium then double anodised for the ultimate finish. Raceworks includes a wide variety of double anodised aluminium fittings also manufactured from 6061 T6 Aluminium including Push Lok full flow, AN, Barb, Bulkhead, Flare, Union, NTP, Y Blocks and fittings to suit Teflon Braid. E85 compatible Teflon Braided and Push Lok Hoses will also be available as part of the Raceworks range. The Raceworks range of silicone hoses consists of high grade 5mm thick 4 ply silicone polyester-reinforced configuration, available in a variety of styles and sizes including elbows, tees and reducers. Raceworks silicone hoses meet or exceed all performance and physical characteristics of SAE J20 R1, SAE J20 R1 H.T. Class A, TMC RP303B Grade I and Grade II, Mil-Spec A-A-52426 and various heavy-duty OEM requirements and are available in blue or black outer colour.

Additional information

Weight 1 kg
