Garrett PowerMax Turbo Upgrade suitable for Toyota Hilux N70 KUN26

Garrett PowerMax Turbo Upgrade suitable for Toyota Hilux N70 KUN26

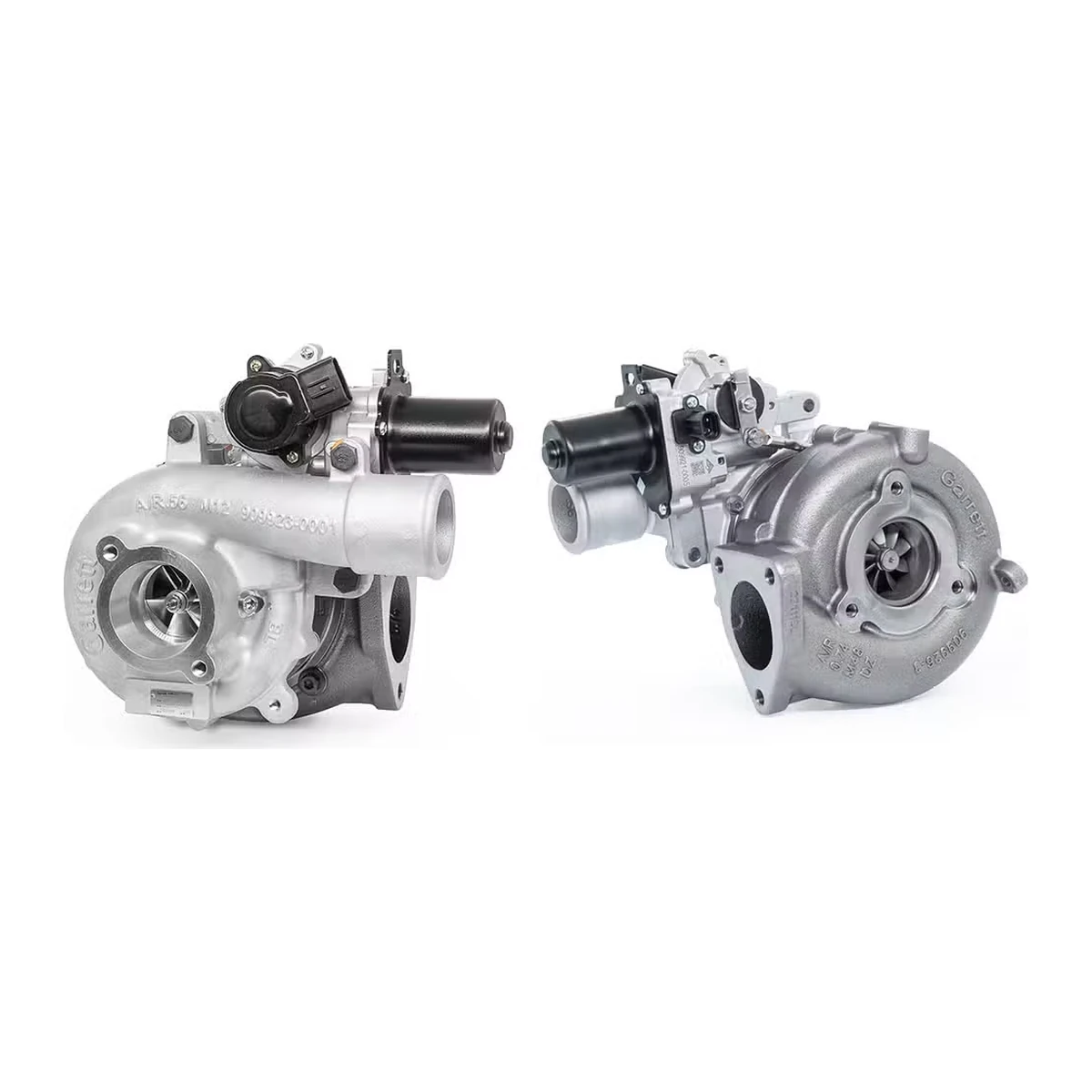

Developed in house with Garrett Advancing Motion and HD Auto, the Garrett PowerMax turbo suitable for the 1KD-FTV in the Toyota Hilux N70 has arrived. It is a complete, direct-fit turbocharger that bolts up in place of the factory unit and supports up to 198kW (265 BHP). Garrett’s on-dyno testing against the OEM turbo showed 38% more power and 70% more torque, from 320Nm to 550Nm.

🚗 Suitable for:

• Toyota Hilux N70 KUN25 KUN26 3.0L 1KD-FTV turbo diesel (2005-2015), Garrett part number 953907-5001S

📦 What’s Included:

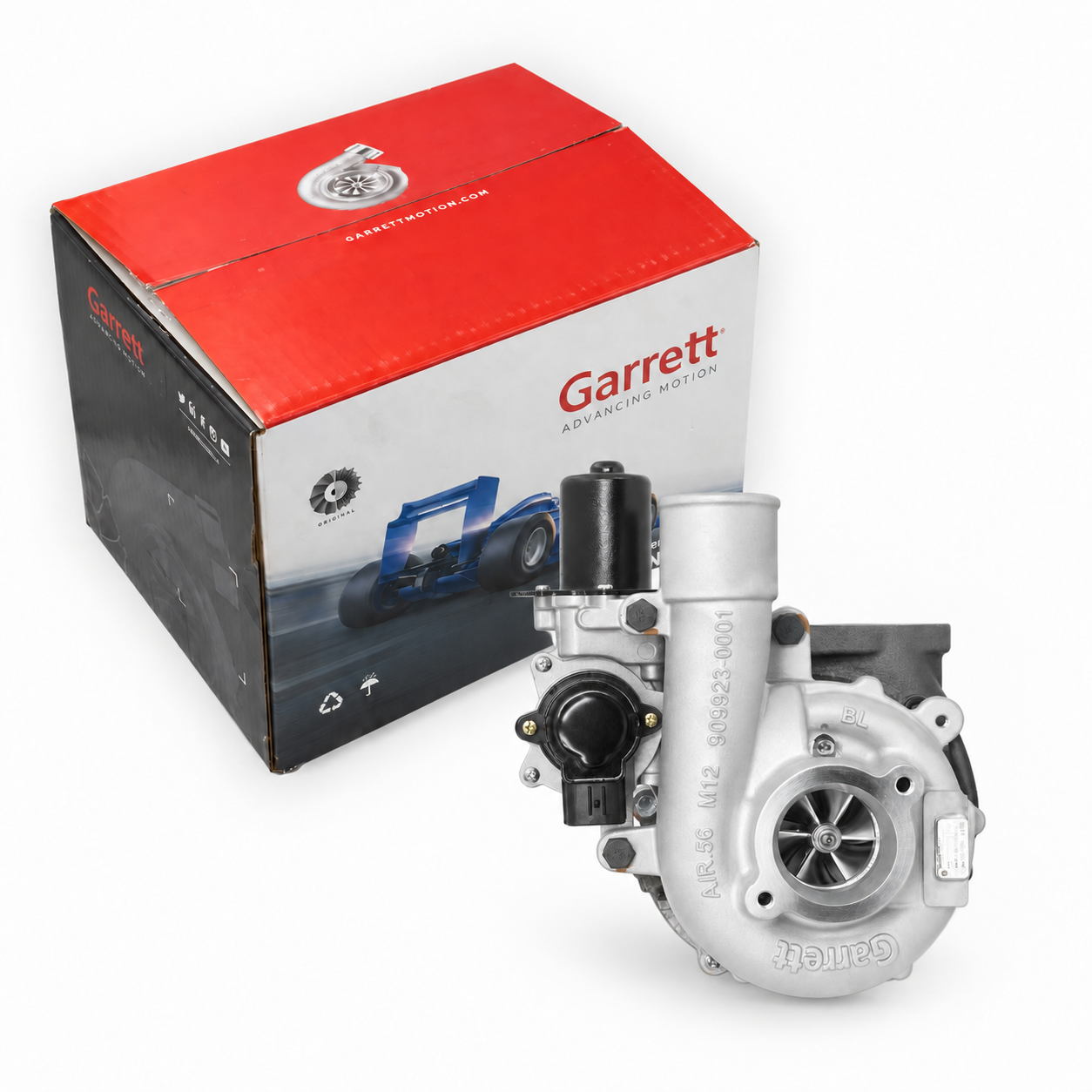

• 1x Garrett Advancing Motion PowerMax turbocharger, complete assembly with calibrated electric actuator

🔧 Fitment Details:

• Direct OEM bolt-up unit with a brand new turbo actuator motor. No fabrication required
• Reuses the factory mounting locations, oil and coolant connections, and intake and exhaust connections
• We recommend a turbo fitting kit and new gaskets
• We recommend dyno tuning for best results

⚙️ Why Choose Garrett PowerMax:

• Tested in house on our own Toyota Hilux N70, in a collaboration between Garrett Advancing Motion and HD Auto
• Up to 70% more torque, 550Nm from 320Nm, tested on-dyno against the OEM turbo
• Improved electric actuator assembly for increased durability
• Engineered to OEM durability and quality standards

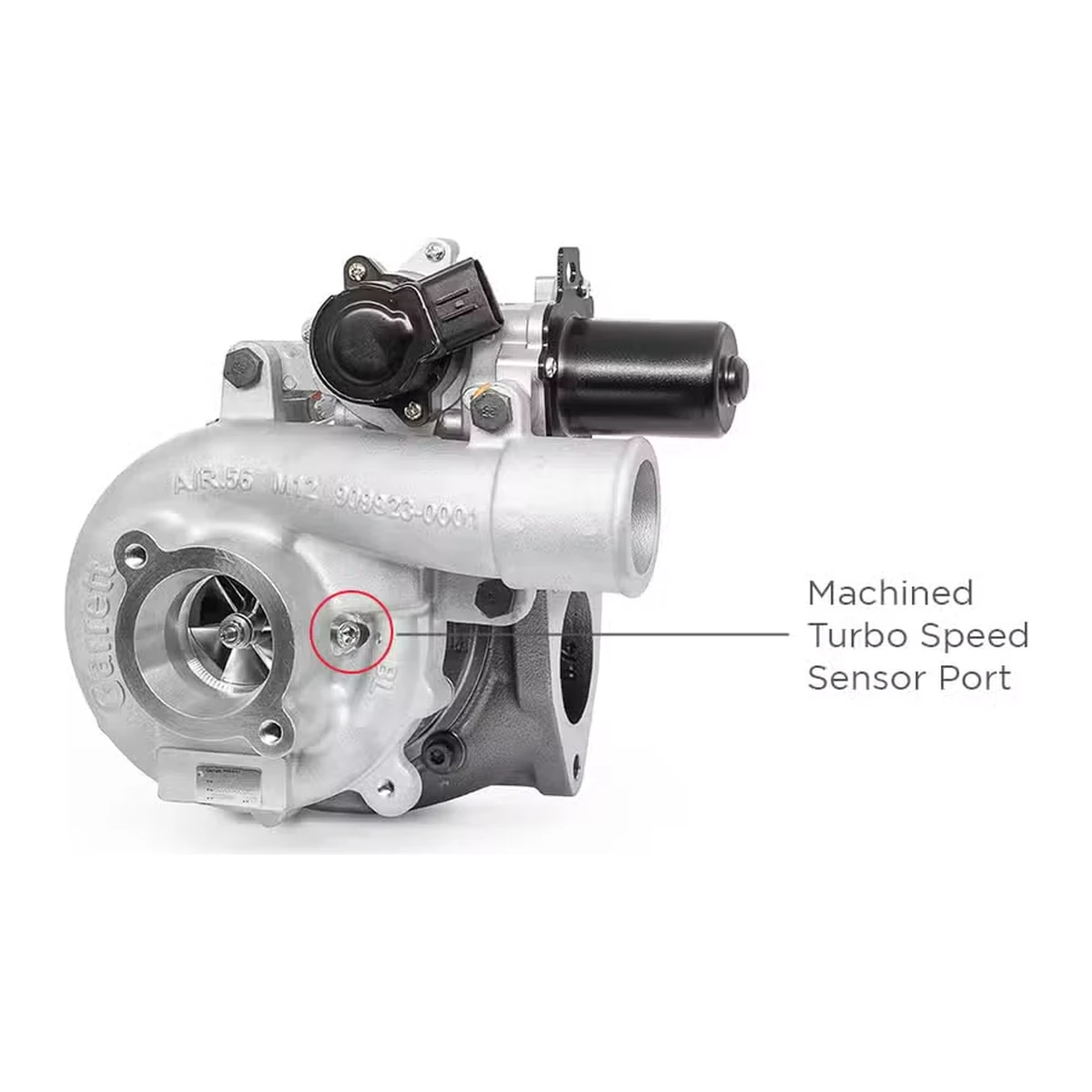

• Fully machined turbo speed sensor port for monitoring shaft speed. Use Garrett PN 923586-0002 (G-Smart Bluetooth module and app), or speed sensor kit 781328-0001 (street kit with gauge) or 781328-0002 (pro kit without gauge), sold separately

📐 Specifications:

• Turbo model: GTB2260V
• Power capability: up to 198kW (265 BHP)
• Compressor wheel: 42.4mm inducer, 61mm exducer
• Turbine wheel: 50mm inducer, 45mm exducer

📦 Dispatch Information:
We keep these on the shelf at our Brisbane store, for fast dispatch.

❓ FAQs:
Q: Is this a direct bolt-on?
A: Yes. It matches the factory turbo’s footprint and comes with a calibrated electric actuator fitted, so no fabrication is needed.

Q: Do I need a tune?
A: We recommend dyno tuning for best results. Garrett’s power figure is the turbo’s capability from flow testing, and real results depend on your vehicle’s modifications and tune.

Q: Is this turbo suitable for the Toyota Prado 120 Series?
A: No. This listing is part number 953907-5001S, which suits the Toyota Hilux N70. The Toyota Prado 120 Series uses a different part number, 953907-5002S. Contact us for that one.
