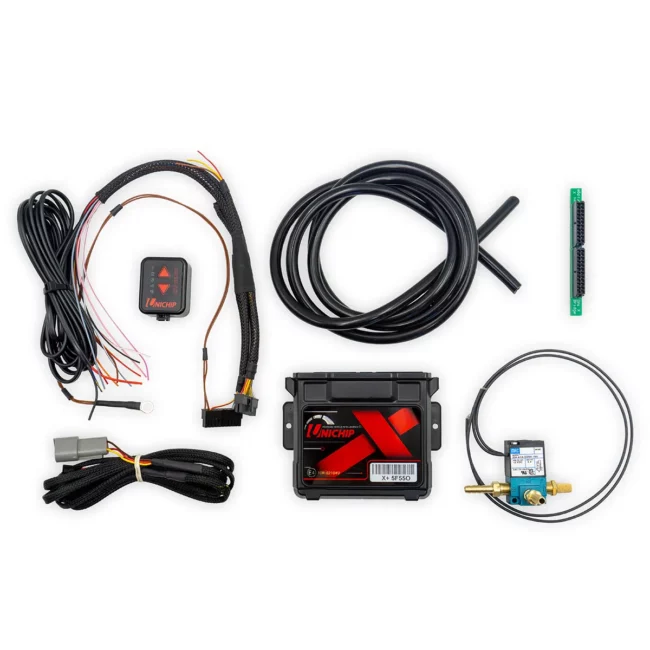

PRE TUNED 1HD-FTE UNICHIP UNI X

Please note, all tech support for these items are 100% supported by HD Automotive.

We have successfully tuned hundreds of Toyota Landcruiser’s fitted with the 1HD-FTE engine. This means that we have tuned just about every setup you could possibly imagine two, three, maybe even 100+ times! This intense focus on this specific range of products and tuning on the 1HD-FTE engine paired with our Multi-Mapping (5 Map Select) options and comprehensive performance packages has allowed us to develop a series of pre-tuned Uni-X modules that will replicate known and highly tested engine combinations giving you maximum potential gains while maintaining reliability and safety.

Please specify your setup in the notes so we can tailor the tune to suit your desired application.

Benefits of the Unichip Uni-X Platform

• Coolant Temp Protection
  • The Unichip knows your coolant temperature via a voltage input from the ECU which is read from the engine’s sensor. This allows us to de-rate the tune when the engine is cold or even worse, hot. This feature is fully inbuilt and an autonomous function unique to the Unichip ECU. No user input is required.
• 5 Map Select
  • One of our favorite features of the Unichip Uni-X is that it allows us to offer 5 completely different tunes at the touch of a button. This means you get to have your full send party tune which may be 400+HP at the wheels, and still lend the car to a mate on the 200HP tune. Typically the tunes are offered as follows,
  • Tune 1: Power + Hard Cut Limiter (Heavy focus on HP & Torque)
  • Tune 2: Tow (Leaner AFR, still maintains a focus on HP & Torque)
  • Tune 3: Eco (Lean AFR, heavy focus on fuel efficiency)
  • Tune 4: 4×4 (Same as power, but offered with a doughy throttle down low to reduce bouncing on the pedal in off-road conditions).
  • Tune 5: Stock (Or as stock as possible with larger injectors, this may be say, 200HP, where as a true stock power level may be 130-160HP at the rear wheels).
• Electronic Boost Control
  • Boost adjustment available for each tune

Common setups we are able to offer tuning solutions for,

1. 3″ Exhaust, Stock Turbo, Intercooler (HDJ100) or No Intercooler (HDJ79) + Intercooled HDJ100 – Suits Auto or Manual – 200HP/550NM
2. 3″ Exhaust, Upgraded Turbo, Intercooler, Stock Injectors, Upgraded Clutch – 220HP / 600NM
3. (Auto Specific) 3″ Exhaust, Upgraded Turbo, HD Auto A750F Specific Injectors, Upgraded Intercooler, Wholesale Automatics Extreme Valve Body – 200-270HP/600-700NM
4. 3″ Exhaust, Upgraded Turbo (GTurbo Green/Red/Blue Wheel, UFI 18G/21L/23L, GMT Highflow), Highflow Injectors, Upgraded Airbox, Intercooler – 250-400HP/650-1000NM

How to Install Video:
