1HZ Turbo Kit suitable for Toyota LandCruiser

1HZ Turbo Kit suitable for Toyota Landcruiser

Turn your 1HZ into the engine it should have been, with reliable power – and no compromise.

This package has been hand selected with top shelf components to ensure you achieve a perfect performance outcome.

1HZ Turbocharger upgrade kits are the proven way to gain safe and reliable power, torque and even economy from your naturally aspirated Toyota Landcruiser HZJ79, HZJ80 and HZJ105.

This kit is suitable for the following vehicles,

• Toyota Landcruiser HZJ75
• Toyota Landcruiser HZJ79
• Toyota Landcruiser HZJ80
• Toyota Landcruiser HZJ105
• Toyota Coaster 1HZ

What you get,

• Arashi CT26 Style Turbocharger
• Tillix Split Pulse Merge Exhaust Manifold
• Genuine Exhaust Manifold Sealing Ring Set (Silicone Inner and Steel Outer)
• Genuine Turbo To Manifold Nut & Stud Kit
• Turbo Stud & Nut Kit
• Braided Oil Feed Line & Tee Piece (Retains Factory Oil Sender)
• AN8 Oil Drain Hose, Fittings & AN8 Steel Weld On Bung
• MLS Exhaust Manifold Gasket (Pair)
• Manifold To Turbo MLS Gasket
• Turbo To Exhaust MLS Gasket

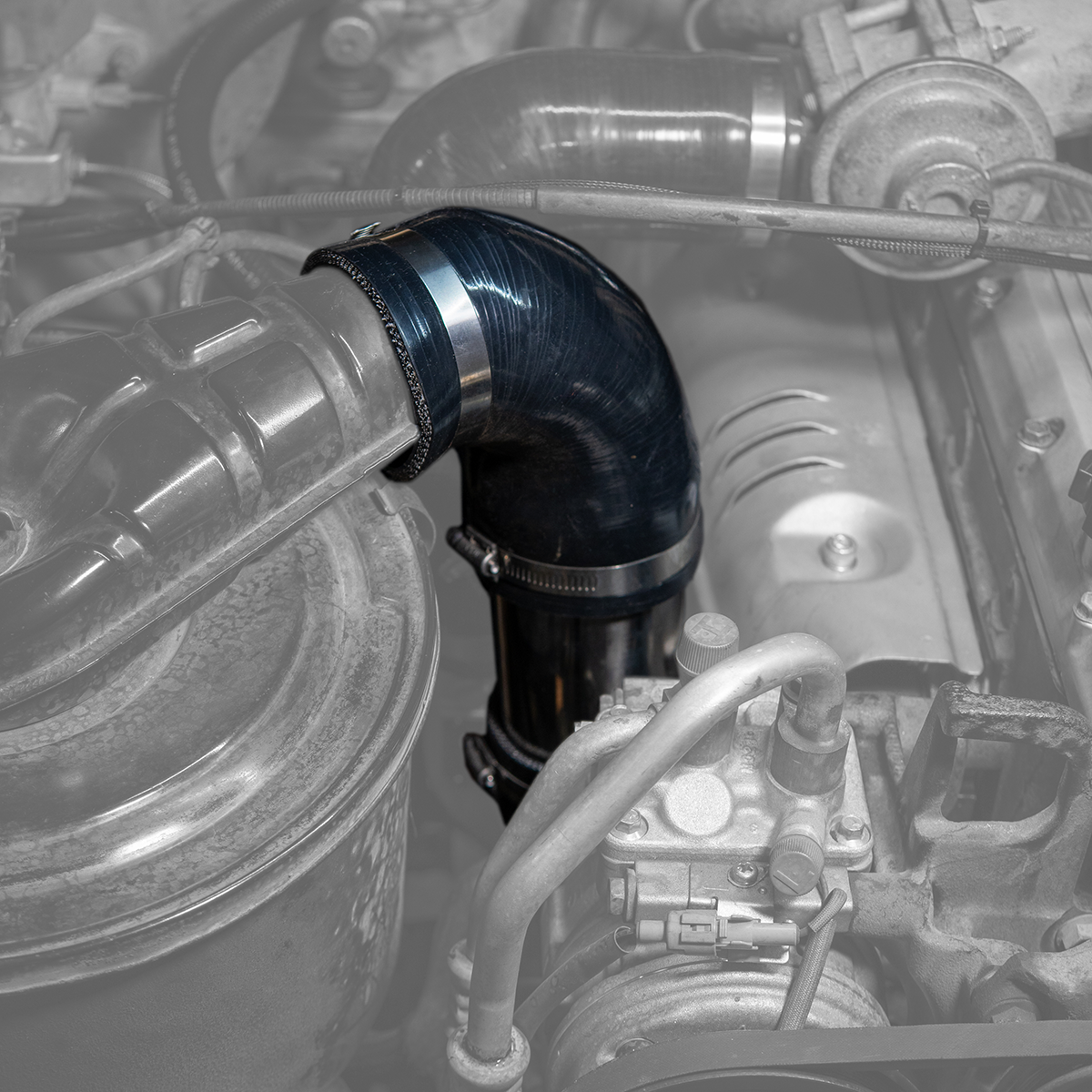

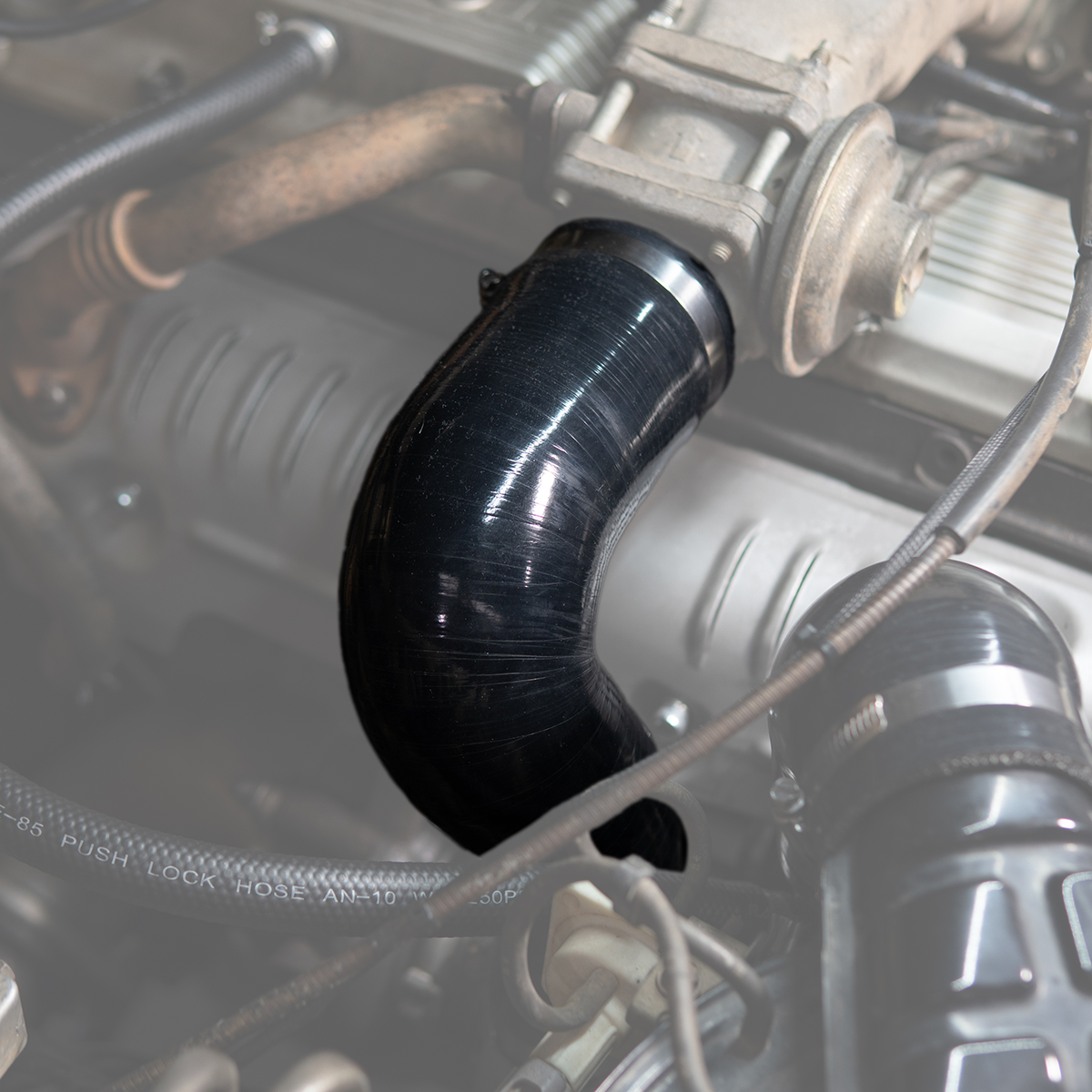

• Turbocharger To Factory Crossover Moulded Silicone Hose & Solid Band Hose Clamps
• Crossover Pipe Crank Breather Delete Bung & 1/8NPT Boost Reference Barb

Optional Extras,

• 3″ Dump Pipe Section (To suit your vehicle, or a complete exhaust system – please see other listings for complete exhaust systems)
• Airbox to Turbo Pipe (To suit your vehicle with a stock airbox)

Important information if your 1HZ currently has extractors fitted,

• If your 1HZ has had extractors fitted, you can option to get our one piece cast merge style manifold as you will likely be missing the back half of the factory manifold which typically joins into our genuine style exhaust manifold.

About the turbocharger we use,

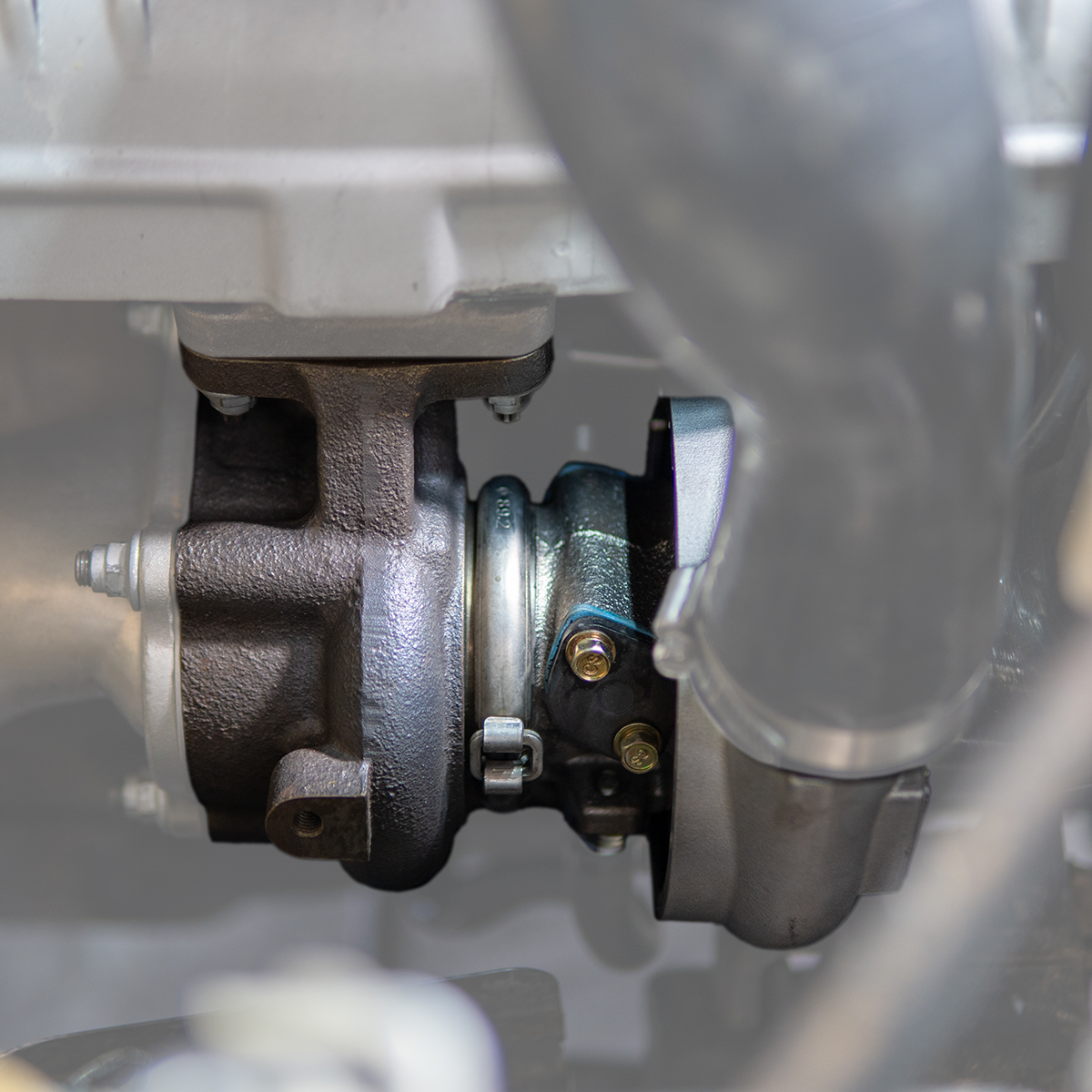

• These kits are based off a ‘factory style’ CT26 turbocharger frame.
• This has a number of benefits when it comes to installation. Any off the shelf exhaust system to suit a factory turbo 1HD-t & 1HD-FT Landcruiser will fit with this kit.
• The turbocharger placement with the factory 1HD-T manifold paired with one of our custom moulded silicone hoses allows you to retain the factory crossover pipe on your 1HZ engine.

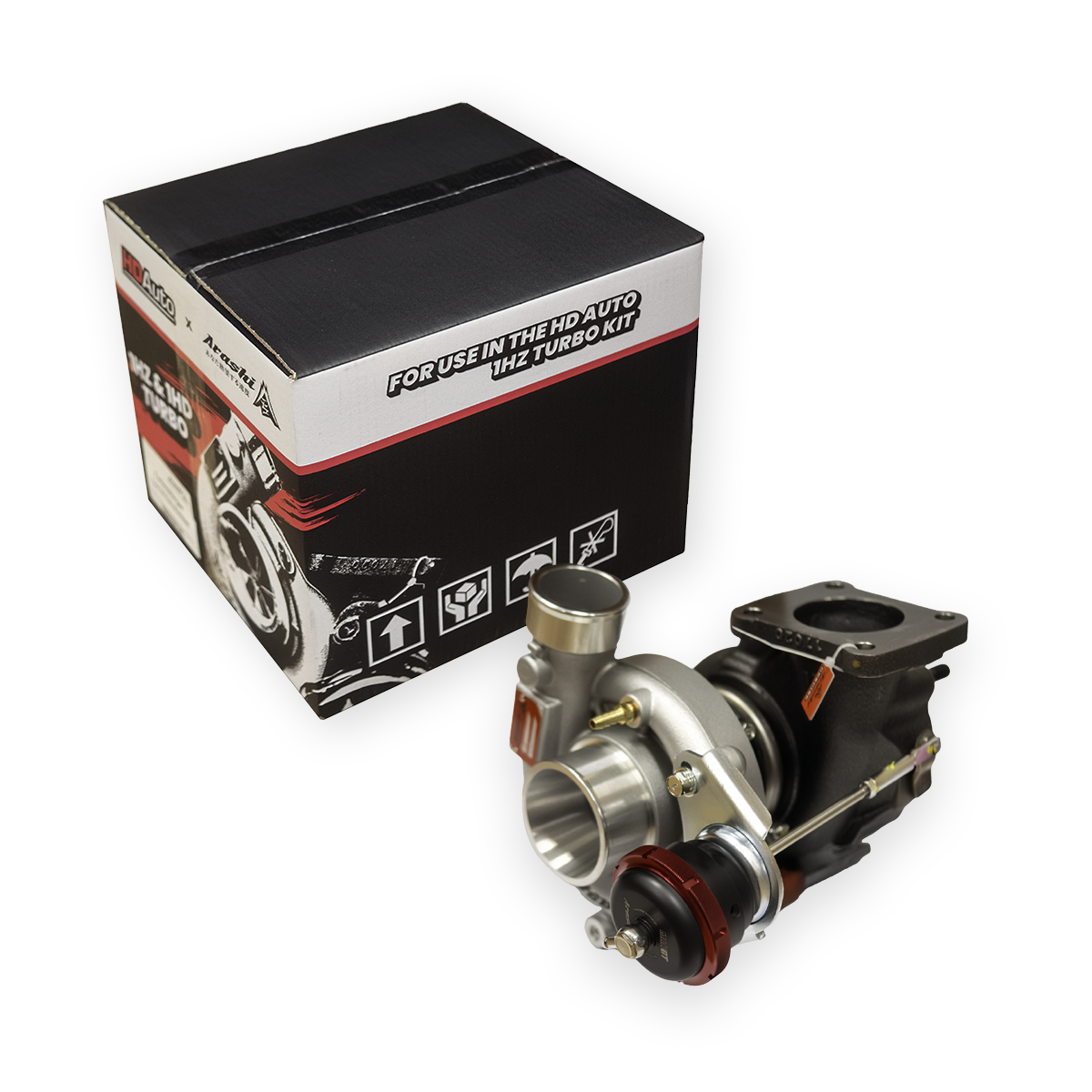

• The turbo supplied in this kit is an Arashi Billet CT26 style turbocharger.
• These are journal bearing with provisions for water cooling if you wish to run it.
• Tried and tested in house, these Landcruiser turbochargers are a reliable and efficient option.
• The billet wheel promotes early spool and provides turbocharger blade longevity.
• Capable of up to 180HP while still remaining drivable at lower RPM’s, they are the ideal choice for turbocharging your 1HZ.

Tillix Split Pulse Merge Exhaust Manifold:

• These have been engineered to use a split pulse design that provides a significant improvement over traditional merge or log-type manifolds.
• Manufactured from SiMo ductile cast iron.
• Will replace your factory extractors or any existing turbo manifold you may have on your engine.

Why this package?

True Bolt-on Simplicity

• Every nut, fitting and bracket is included in the box. Everything from the turbo to the manifold have been specifically designed for the Toyota Landcruiser 1HZ engine. No extra runs to Bunnings (as much as we all love a sneaky snag), or dodgy improvisations.

Workshop-Approved Fitment

• We install these in our workshop in Brisbane every week – we’ve refined this kit based on real world feedback from 100’s of builds.

Backed by Pros, Not Just Parts

• You’re not just buying a box of parts. You’re getting our tech support, tuning advice, and install tips from guys who build these packages every day. We are here to help.

Backed by Australia’s most trusted 4wd performance workshop.

if you are looking for the fitting guide, it is available by clicking through on this link here

Want to see more?

Take a look at this package fitted to a vehicle on our dyno in Brisbane, where we tested a recently purchased kit on our dyno to achieve some outstanding results,
