High Angle CV Shaft suitable for Toyota Prado 120 Series 150 Series

High Angle CV Shaft suitable for Toyota Prado 120 Series 150 Series

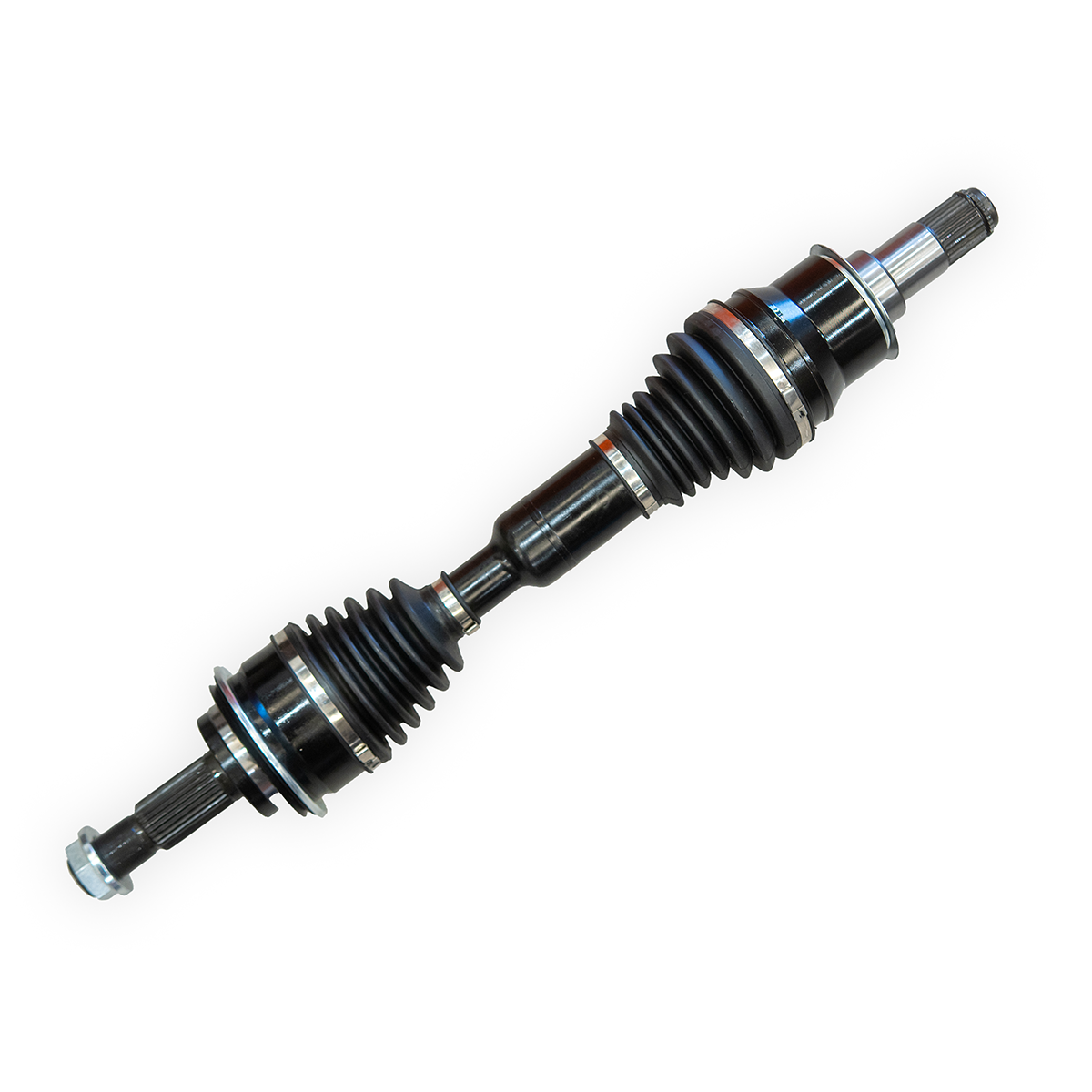

Lift a Prado and the factory CV shafts on the independent front suspension end up running at angles they were never built for. That is where the binding, the vibration and the early joint wear come from. The Basco CVA1004EXTD has a plunging centre section for more telescopic travel, plus high angle inner and outer CV joints that cope with the extra angle a lift puts on them. Sold individually, and one shaft fits either side.

🚗 Suitable for:

• Toyota Prado 120 Series KZJ120 3.0L 1KZ-TE Turbo Diesel 2003–2009
• Toyota Prado 120 Series KDJ120 3.0L 1KD-FTV Turbo Diesel 2007–2008
• Toyota Prado 120 Series GRJ120 4.0L 1GR-FE V6 Petrol 2003–2009
• Toyota Prado 150 Series KDJ150 3.0L 1KD-FTV Turbo Diesel 2009–2015
• Toyota Prado 150 Series GDJ150 2.8L 1GD-FTV Turbo Diesel 2015–2024
• Toyota Prado 150 Series GRJ150 4.0L 1GR-FE V6 Petrol 2009–2017

Does not suit the 250 Series Prado GDJ251 (2024 on).

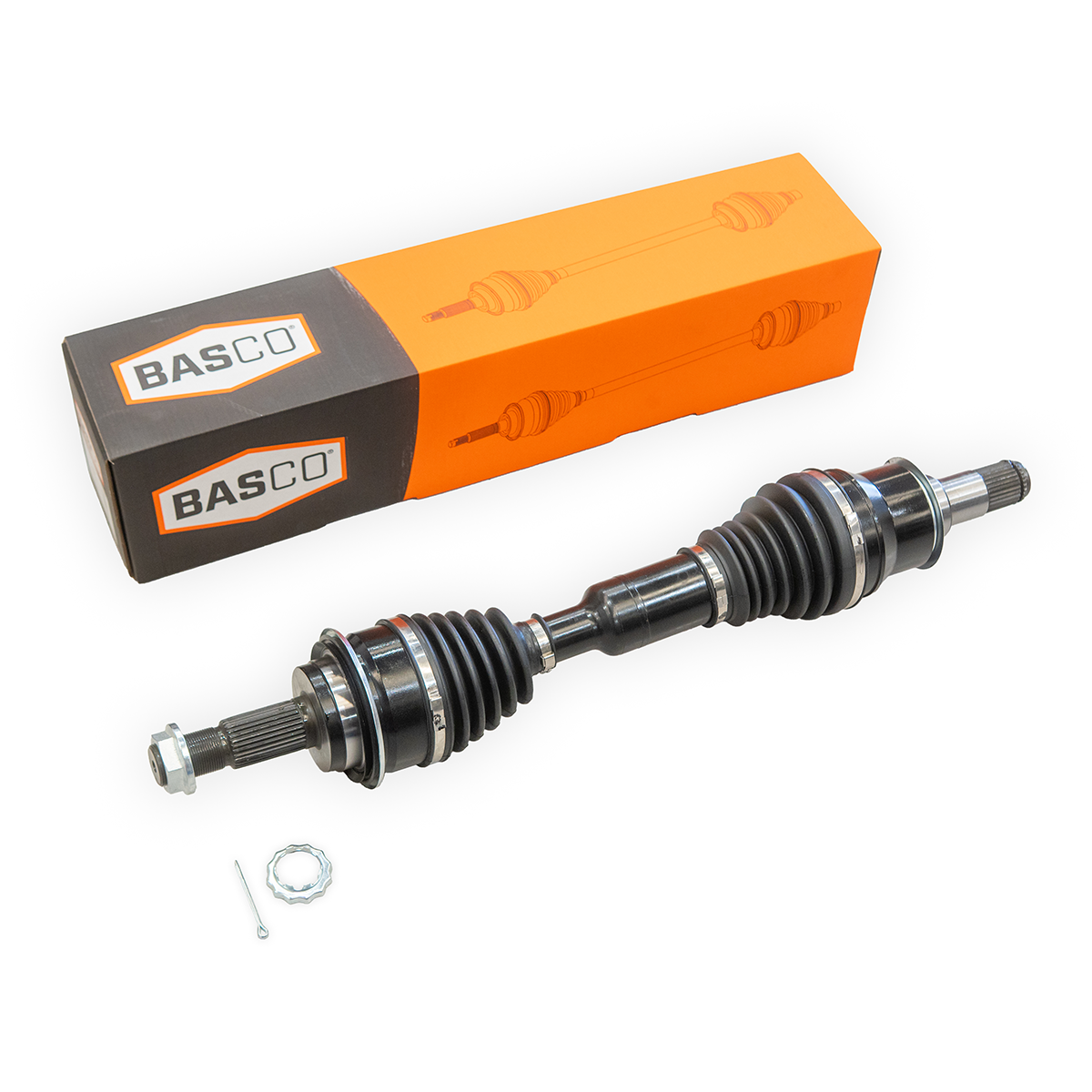

📦 What’s included:

• 1x Basco high angle CV shaft (CVA1004EXTD), suits left or right side
• 1x Axle nut
• 1x Split pin

🛠️ Fitment details:

• Direct fit in place of the factory CV shaft on a lifted Prado with IFS
• Plunging centre section gives more telescopic travel than the factory shaft

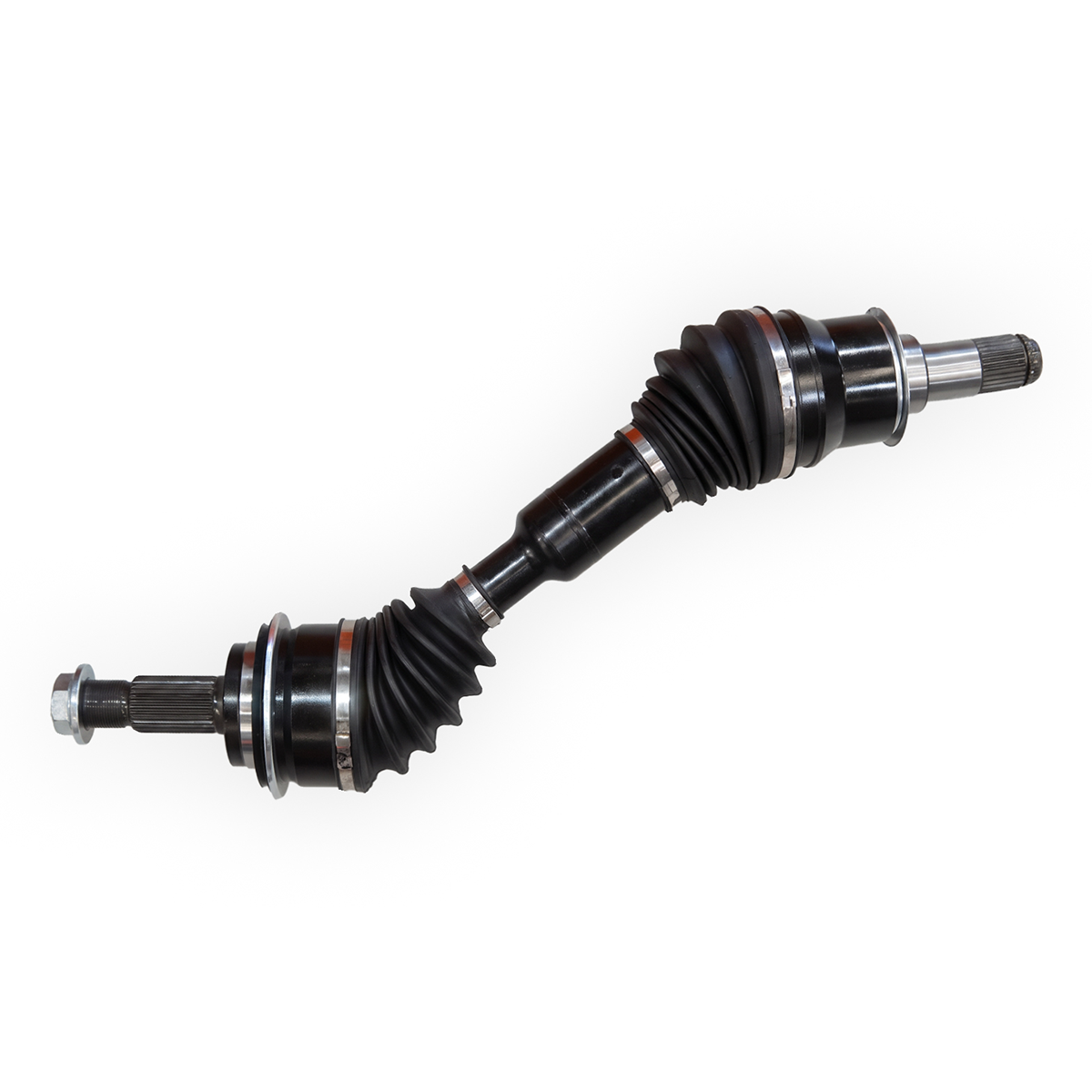

• High angle inner and outer CV joints stop binding at full droop
• Torque the flange bolts to Toyota factory specification
• Grease and inspect the splines and hub seals before fitting
• Check for clearance and binding once fitted, then recheck after the first 200 km

⚙️ Why choose Basco:

• Built for lifted IFS vehicles, where standard shafts bind and wear out early.
• The plunging centre section gives telescopic travel a factory shaft can’t.
• High angle CV joints rated for the operating angles of a lifted Prado.
• Backed by a 12 month/10,000 km guarantee against manufacturing defects.

📦 Dispatch information:

In stock in Brisbane.

❓ FAQs:

Q: Is this a straight replacement or an upgrade?
A: An upgrade. It replaces the standard CV shaft on a lifted Prado, where the factory shaft binds, vibrates or wears early at full suspension travel.

Q: Do I need one or two?
A: They are sold individually. Order two to do both sides.

Q: Will this fit the new 250 Series Prado (GDJ251)?
A: No. This shaft suits the 120 and 150 Series Prado only.
