Please note: as of 29/09/2026, the High Mount Merge option is on back order because of a dump pipe shortage. Please allow up to 2 to 3 weeks for dispatch on merge kits. Contact us if you’d like an update on your order.

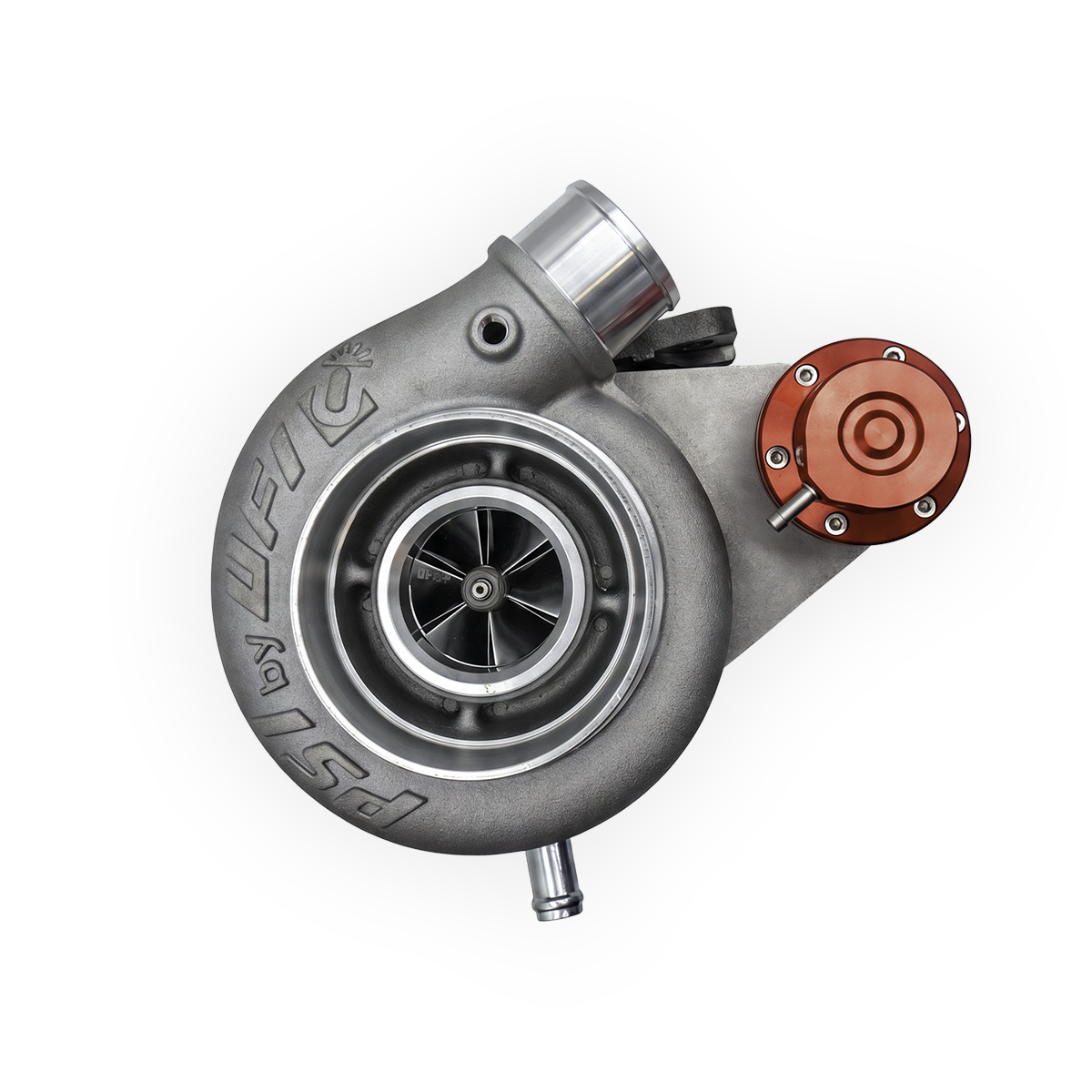

UFI TD42 turbo upgrade for the Nissan Patrol GQ and GU
HD Automotive is Australia’s largest authorised UFI distributor. This turbo bolts straight onto the factory T3 style flange of the TD42T and TD42Ti, with or without an intercooler.
A stock TD42T makes around 130hp at the wheels on our Mainline dyno. Our 250hp+ package, built around this turbo, makes around 250hp at the wheels.
Which size do I need?
Pick your power goal first. The turbo follows from that.
| Size | Power range | Best for | Pump to pair it with |
|---|---|---|---|
| 16G | Up to 200hp | Towing and touring, response off idle. Past 200hp, step up to the 18G | Factory or 11mm |
| 18G | 200 to 230hp | The all-rounder for a tuned touring Patrol | 11mm |
| 21L | 250 to 280hp | Serious builds. If your goal is 250hp, choose this one | 12mm |
| 23L | 280 to 330hp | Big power builds | 12mm |
All four are built on a Mitsubishi TD05 and set up by United Fuel Injection for low-down torque, so the bigger sizes still drive well around town.
Which manifold option?
Choose the manifold you’re running when you order.
- Factory manifold or Radius manifolds: supplied with a Radius Fabrications 3-inch dump pipe with an EGT bung.
- Any other brand: supplied with a dump flange so a pipe can be made to suit.
Don’t run the 21L or 23L on a log style manifold. It kills the response of a bigger turbo. Pair them with a high mount merge manifold like the Tillix high mount split pulse merge manifold.

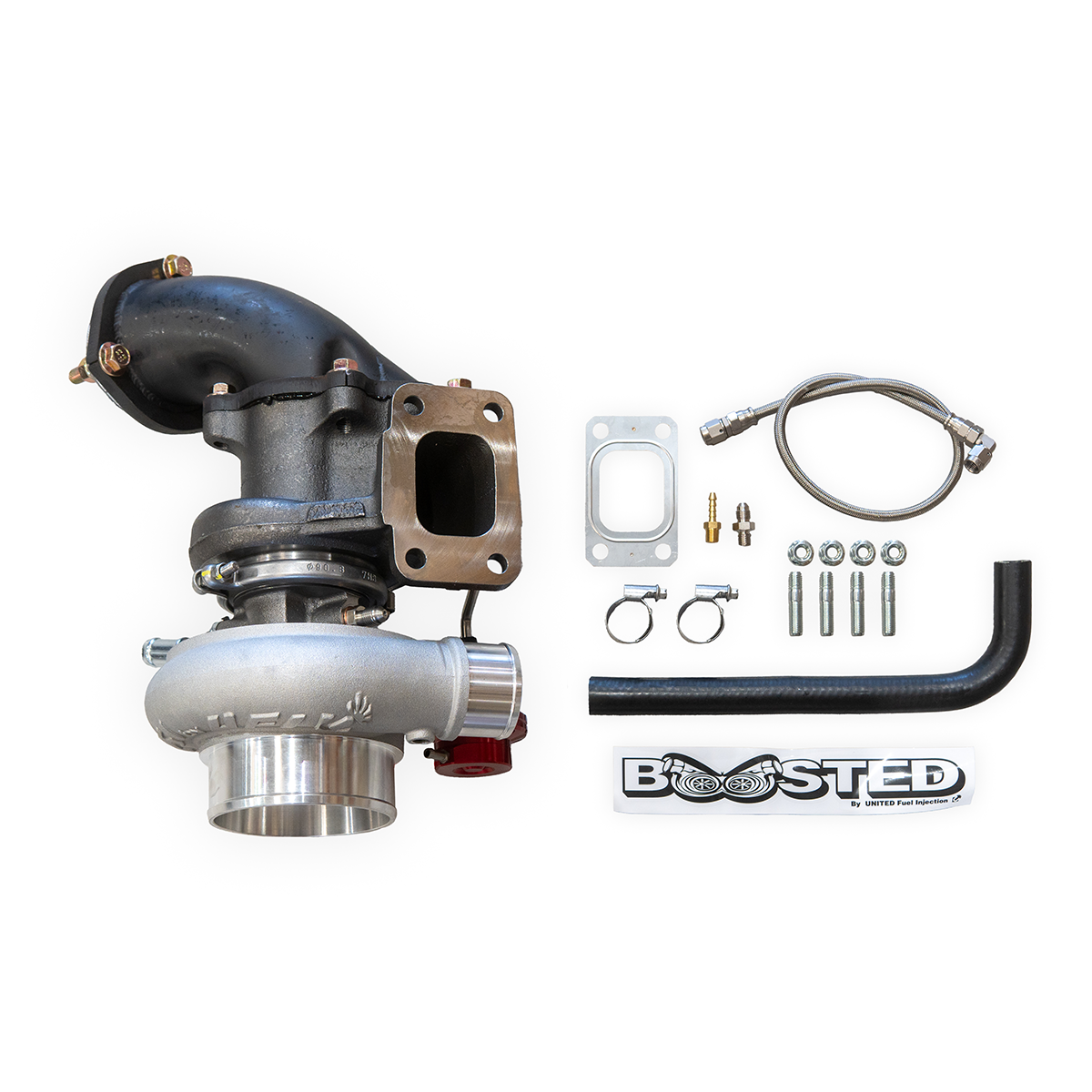

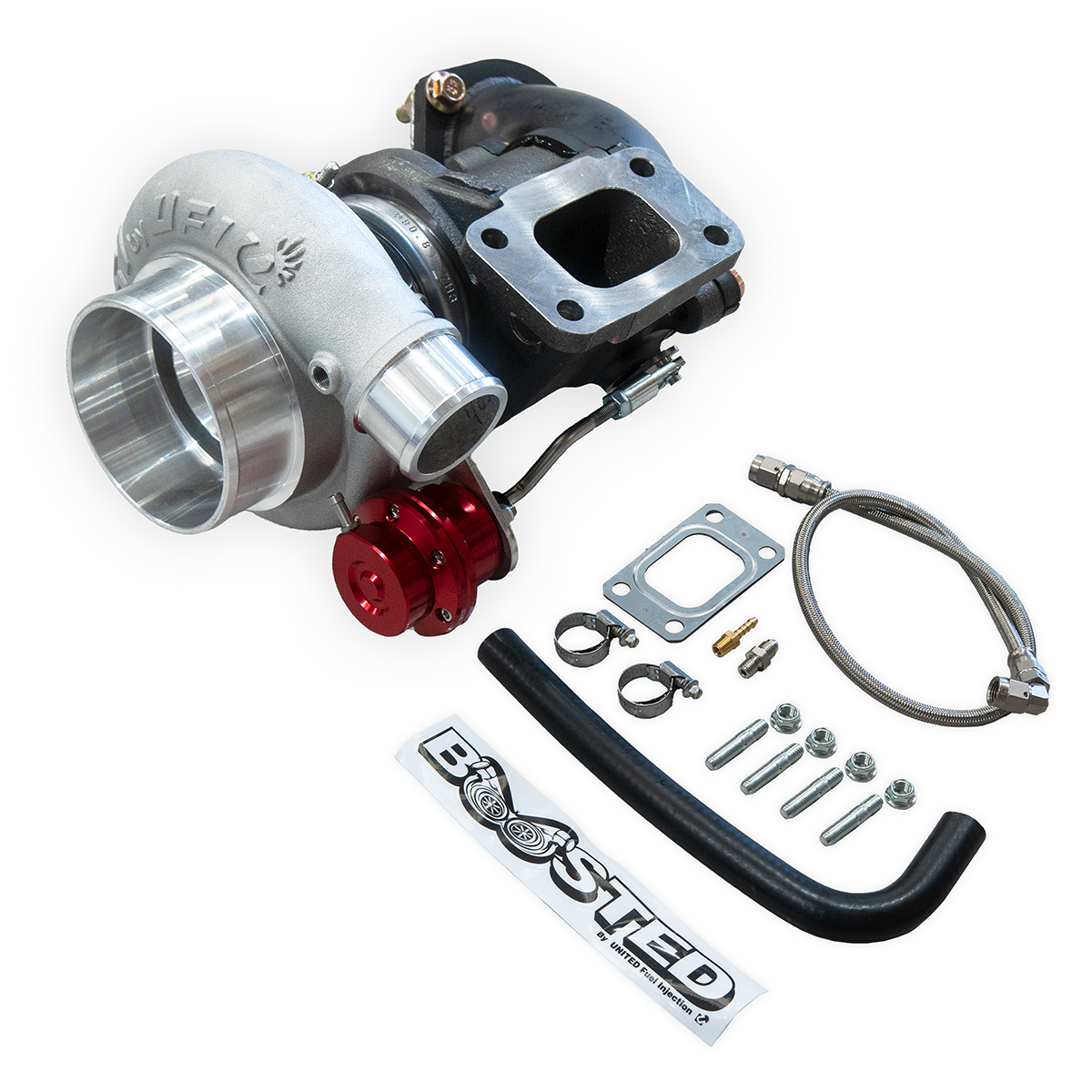

What’s included
- UFI turbo in your chosen size
- Nuts
- Oil lines
- Hose clamps
- Radius Fabrications 3-inch dump pipe with EGT bung (factory and Radius manifolds)
There’s no gasket between the rear housing and the dump pipe. Both faces are machined flat. A thin layer of RTV on the dump flange is all it needs.
What else will I need?
- Fuel. A bigger turbo with no extra fuel makes boost, not much power. The UFI 11mm pump suits the 16G and 18G. The UFI 12mm pump suits the 21L and 23L.
- Intercooler. Recommended past a mild 16G setup. PDI kits suit the GQ, the GU Series 1 to 3 and the GU Series 4.
- Clutch. The factory clutch won’t hold the extra torque. See the UFI 850Nm clutch kit.
Want it all in one go? Our TD42 performance packages group the turbo, manifold and pump that work together. Have a non-turbo TD42? See the non-turbo TD42 turbo conversion kit.
FAQ
Does it suit my GQ?
Yes, on a turbocharged TD42. For a non-turbo GQ, start with the non-turbo conversion kit.
Do I need a tune?
The TD42 pump is mechanical, so there’s no ECU tune. Setting the pump up on a dyno is strongly recommended.
18G or 21L?
If you might want 250hp down the track, buy the 21L now. Swapping turbos twice costs more than doing it once.
📦 Dispatch information
Shipped Australia wide via Team Global Express, usually 5-7 business days to metro areas. We carry most UFI turbos in stock in Brisbane. For current availability, text us on 0483 906 923.
